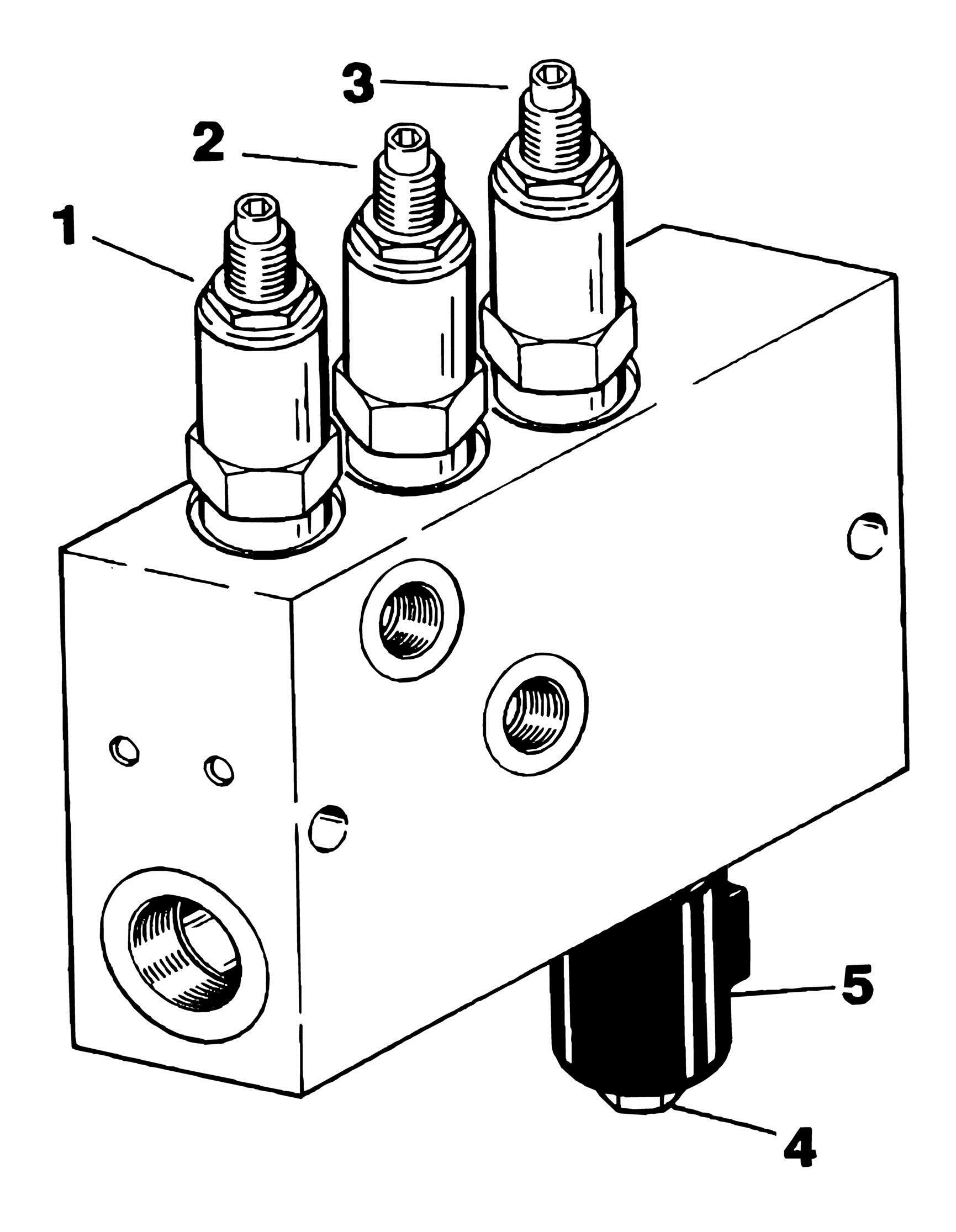

FIGURE 2-3. ACCESSORY VALVE ASSEMBLY
FIGURE 2-3. ACCESSORY VALVE ASSEMBLY
FIGURE 2-3. ACCESSORY VALVE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
4640716 Ref ACCESSORY VALVE ASSEMBLY Ref Note: Refer to P/N stamped on cartridge hex nut for
identification.
1 Ref Cartridge - Sequence Options: 1 7012506 1 Hydraforce PS10-34A 1 7010552 1 Vickers/Modular Controls PSV7-10V 2 Ref Cartridge - Pressure Reducing Options: 2 7012505 1 Hydraforce PR10-32A 2 7010553 1 Vickers/Modular Controls PRV1-10V 3 Ref Cartridge - Main Relief Options: 3 7012507 1 Hydraforce RV50-26A 3 7010554 1 Vickers/Modular Controls RV5-10V 4 Ref Cartridge - Dump Options: 4 7004369 1 Cartridge Less Coil (Hydraforce SV16-21) 4 7010556 1 Cartridge with Coil (Vickers/Modular Controls SV3-16V) 5 Ref Coil Options: 5 7004368 1 Hydraforce 6352012 5 7010555 1 Vickers/Modular Controls 565966 Ref Seal Kit - Sequence Options: 7012509 1 Hydraforce Version 7010557 1 Vickers/Modular Controls Version Ref Seal Kit - Pressure Reducing Options: 7012510 1 Hydraforce Version 7010558 1 Vickers/Modular Controls Version Ref Seal Kit - Main Relief Options: 7012511 1 Hydraforce Version 7010559 1 Vickers/Modular Controls Version Ref Seal Kit - Dump Options: 2900709 1 Hydraforce Version 7010560 1 Vickers/Modular Controls Version
