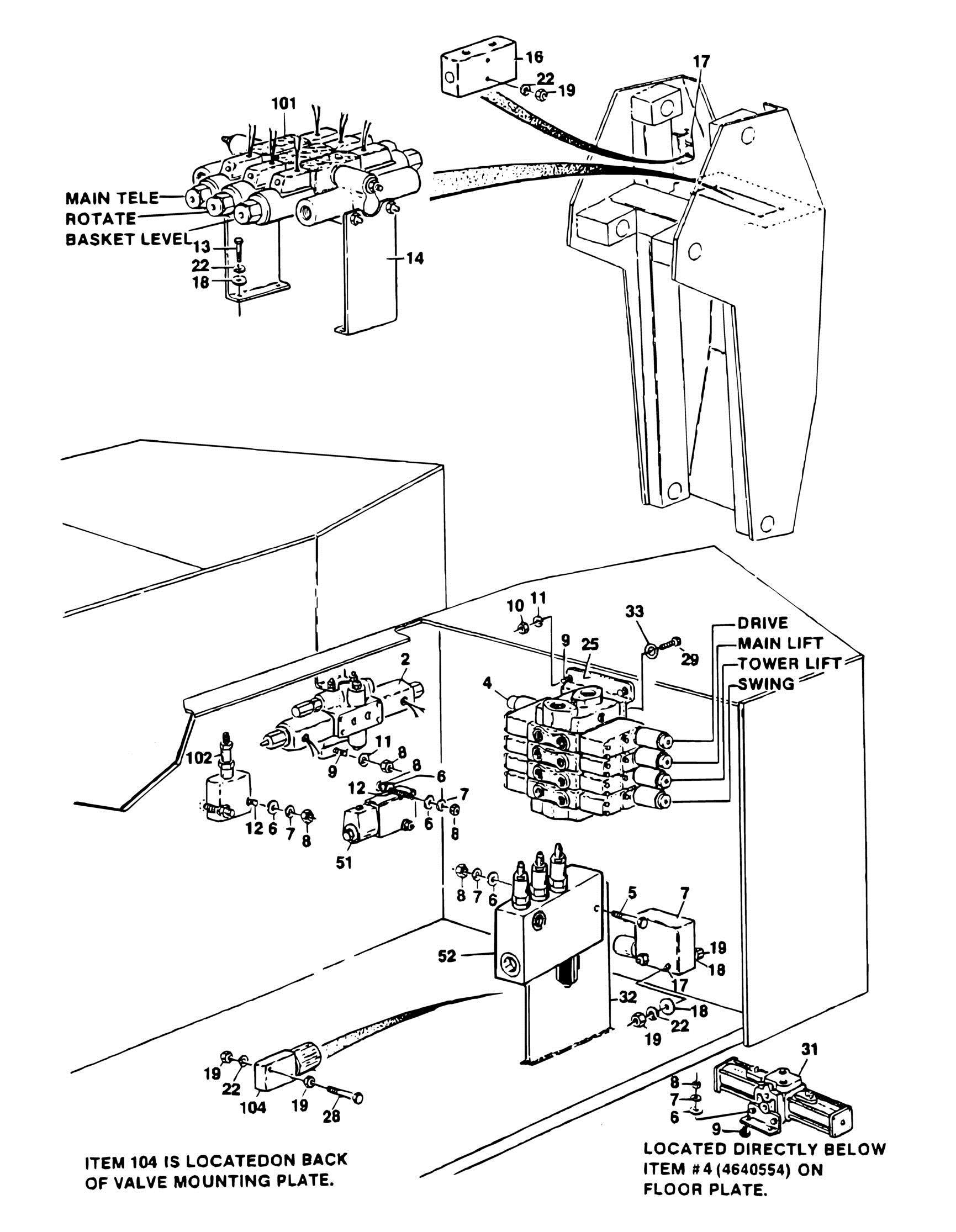

FIGURE 2-2. CONTROL VALVES INSTALLATIONS - VICKERS (ELECTRIC MACHINES
ITEM PART NUMBER QTY DESCRIPTION REV
Ref CONTROL VALVES INSTALLATION (STANDARD PARTS) 2 4640375 1 Valve Assembly - FPS (Steer) (See VALVE ASSEMBLY - FPS (STEER) for Breakdown) 4 Ref Control Valve Assembly Options (Vickers): 4 4640554 1 Control Valve Assembly Options (Vickers) (Prior to October 1994) (See CONTROL VALVE ASSEMBLY (VICKERS) for Breakdown) 4 4640914 1 Control Valve Assembly Options (Vickers) (October 1994 to Present) (See CONTROL VALVE ASSEMBLY - (VICKERS) for Breakdown) 5 0641426 2 Bolt 1/4in-20NC x 3 1/4in 6 4751400 AR Flatwasher 1/4in 7 4761400 AR Lockwasher 1/4in 8 3311401 AR Nut 1/4in-20NC 9 4300034 AR Stud (Welded on Part) 10 4761600 10 Lockwasher 3/8in 11 3311601 6 Nut 3/8in-16NC 12 4300042 AR Stud (Welded on Part) 13 0641506 4 Bolt 5/16in-18NC x 3/4in 14 0901455 2 Bracket, Valve Mounting 16 4640150 1 Valve, Check 17 4300073 AR Stud (Welded on Part) 18 4751500 AR Flatwasher 5/16in 19 3311501 AR Nut 5/16in-18NC 22 4761500 AR Lockwasher 5/16in 24 4640360 1 Solenoid Dump Valve Assembly 24 7010637 1 Seal Kit 24 7003647 1 Coil (Vickers/Modular Controls Version) 24 7004368 1 Coil (Hydraforce Version) 24 7004289 1 Cartridge (Vickers/Modular Control Version) 24 7010635 1 Cartridge (Hydraforce Version) 24 7003635 1 Valve, Check (Vickers/Modular Controls Only) 25 0901489 1 Bracket, Valve Mounting 28 0641524 2 Bolt 5/16in-18NC x 3in 29 0641708 3 Bolt 7/16in-14NC x 1in 31 4640570 1 Valve Assembly - Single Stack Bang-Bang (See VALVE ASSEMBLY - SINGLE STACK BANG-BANG for Breakdown) 32 3533508 1 Plate, Valve Mounting 33 4761700 3 Lockwasher 7/16in 51 4640543 1 Solenoid Valve Assembly 51 7009745 AR Coil (Vickers/Modular Controls Version) 51 7004368 AR Coil (Hydraforce Version) 52 4640716 1 Accessory Valve Assembly 52 See Note Note: 4640716 Accessory Valve is no longer available as a complete assembly. See ACCESSORY VALVE ASSEMBLY for Individual parts. Ref CONTROL VALVE INSTALLATION (VARIABLE PARTS) 0238897 Ref Electric Machines with Rotate Built Through 1992
G 0253229 Ref Electric Machines with Rotate Built (1993 to Present) A 0238899 Ref Electric Machines without Rotate Built Through 1992 G 0253230 Ref Electric Machines without Rotate Built (1993 to Present) A
ITEM PART NUMBER QTY
DESCRIPTION
101 Ref Valve Assembly - FPS Options (See VALVE ASSEMBLY - FPS for Breakdown) 101 4640555 1 Without Rotate (2 Stack) 101 4640556 1 With Rotate (3 Stack) 102 4640533 1 Pilot Valve Assembly 102 7010529 1 Cartridge 102 2900698 1 Seal Kit - 7010529 Cartridge 104 Ref Selector Valve Assembly Options: 104 4640123 1 Valve (Electric Machines Built Through 1992) 104 7004368 1 Coil (Hydraforce Version) 104 7000558 1 Coil (FPS Version) 104 7012518 1 Seal Kit (Hydraforce Version) 104 7006075 1 Seal Kit (FPS Version) 104 4640758 1 Valve (Electric Machines Built 1993 to Present) 104 7012906 1 Coil 104 7012907 1 Seal Kit
