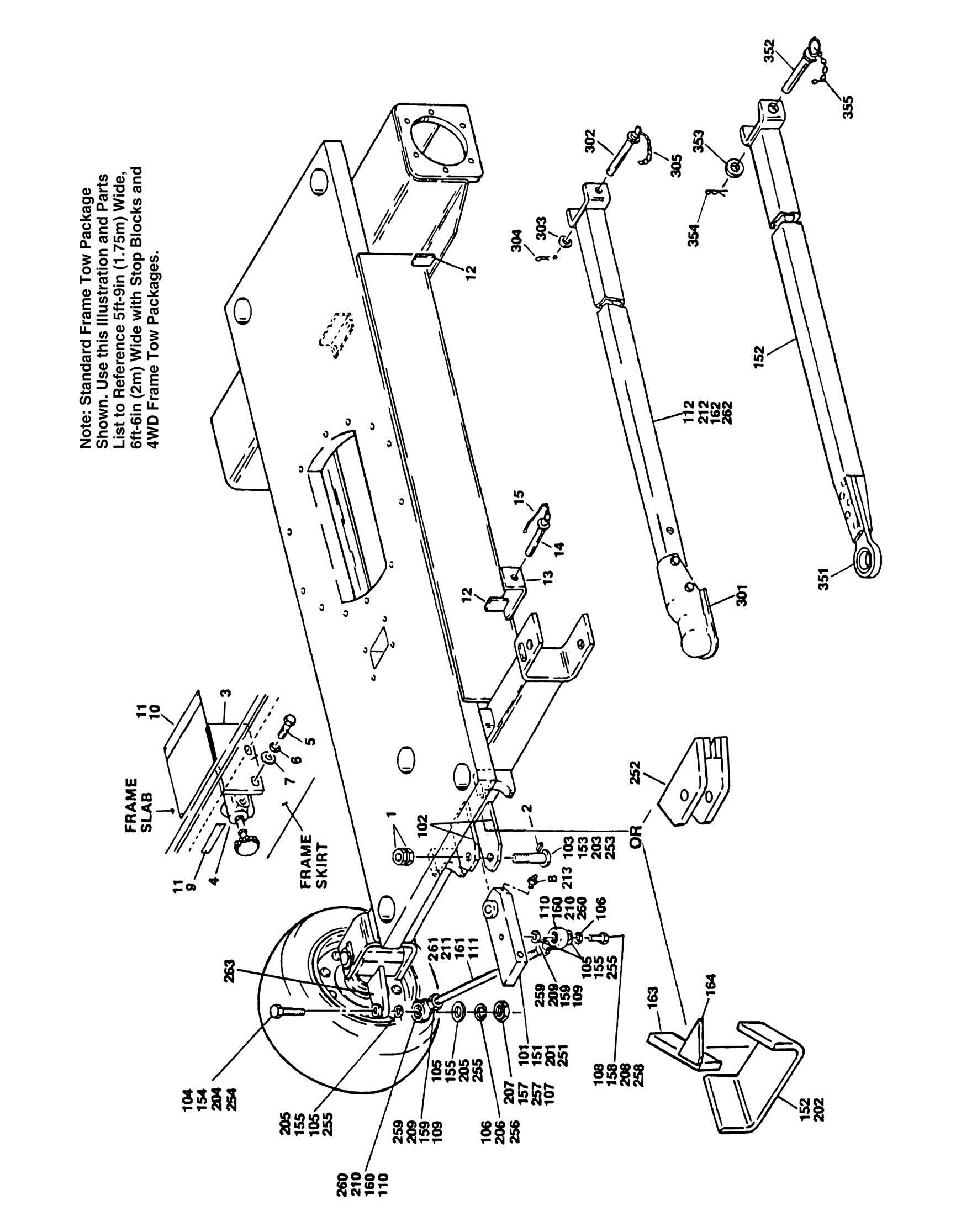

FIGURE 1-12. TOW PACKAGE INSTALLATION

FIGURE 1-12. TOW PACKAGE INSTALLATION

FIGURE 1-12. TOW PACKAGE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

Ref TOW PACKAGE INSTALLATION (STANDARD PARTS) 1 3323002 2 Nut, Jam 1 1/4in-12NF 2 2880410 1 Keystock 1/4in x 1 1/4in 3 0900479 1 Bracket, Valve Mounting 4 4640261 1 Select Valve Assembly 5 0641507 2 Bolt 5/16in-18NC x 7/8in 6 4751500 2 Flatwasher 5/16in 7 4761500 2 Lockwasher 5/16in 8 2160001 1 Fitting, Grease - 90 9 3250872 1 Nameplate - Tow Select 10 3250840 1 Nameplate - Instructions 11 3820001 8 Rivet 12 0361651 2 Bar 13 3532649 1 Plate 14 3420292 1 Pin, Quick Release 15 1260017 8 in/20cm Chain 0238882 Ref TOW PACKAGE INSTALLATION- 2WD 6FT-6IN/2M FRAME

WITHOUT STOP BLOCKS (VARIABLE PARTS)

101 2620029 1 Hitch 102 3040379 2 Lug 103 3421246 1 Pin, Hitch 104 0642234 1 Bolt 3/4in-10NC x 4 1/4in 105 4740032 4 Washer, Special 106 4762200 2 Lockwasher 107 Ref Nut (Use Standard Nut) 108 0642220 1 Bolt 3/4in-10NC x 2 1/2in 109 3322202 2 Nut 3/4in-16NF 110 1360122 2 End, Rod 111 3840941 1 Tie-Rod 112 0360016 1 Tow Bar Assembly (See Items 301-305 for Breakdown) 0251060 Ref TOW PACKAGE INSTALLATION- 2WD 6FT-6IN/2M FRAME

WITH STOP BLOCKS (VARIABLE PARTS)

151 2620029 1 Hitch 152 4340597 1 Support, Tow Hitch 153 3421151 1 Pin, Hitch 154 0630432 1 Bolt, Special 155 4712200 2 Flatwasher, 3/4in Narrow 157 3312202 1 Nut, Jam 3/4in-10NC 158 0642216 1 Bolt 3/4in-10NC x 2in 159 3322202 2 Nut, Jam 3/4in-16NF 160 1360122 2 End, Rod 161 3841065 1 Tie-Rod 162 0361891 1 Tow Bar Assembly (See Items 351-355 for Breakdown) 163 0560898 2 Block, Stop 164 2551292 2 Gusset Ref TOW PACKAGE INSTALLATIONS - 2WD 5FT-9IN/11.75M

FRAME (VARIABLE PARTS)

0239948 Ref With Ball Hitch 0256746 Ref With Pental Hook 201 2620029 1 Hitch

REV

A

A

B

ITEM PART NUMBER QTY DESCRIPTION

202 4340575 1 Plate, Hitch Support 203 3421151 1 Pin 204 0630424 1 Bolt, Special 205 4740032 2 Washer, Special 206 4762200 1 Lockwasher 3/4in 207 3312202 1 Nut, Jam 3/4in-10NC 208 0642216 1 Bolt 3/4in-10NC x 2in 209 3322202 2 Nut, Jam 3/4in-16NF 210 1360122 2 End, Rod 211 3841005 1 Tie-Rod 212 Ref Tow Bar Assembly Options: 212 0360016 1 Tow Bar with Ball Hitch (See Items 301-305 for Breakdown) 212 0361891 1 Tow Bar with Pental Hook (See Items 351-355 for Breakdown) 213 Ref Fitting, Grease - 1/8in NPT45 Options: 213 Not Required 0 With Ball Hitch 213 2160003 1 With Pental Hook Ref TOW PACKAGE INSTALLATION - 4WD FRAME (VARIABLE

PARTS)

0252053 Ref With Oscillating Axle 0256207 Ref With Fixed Axle 251 2620034 1 Hitch 252 Ref Plate, Hitch Support Options: 252 4340625 2 With Oscillating Axle 252 4340575 2 With Fixed Axle 253 Ref Pin, Hitch Options: 253 3421246 1 With Oscillating Axle 253 3421151 1 With Fixed Axle 254 0642636 1 Bolt 1in-8NC x 4 1/2in 255 4712600 3 Flatwasher 1in 256 4562346 1 Spacer, Tube 257 3312605 1 Locknut 1in-8NC 258 0642628 1 Bolt 1in-8NC x 3 1/2in 259 3323002 2 Nut, Jam 1 1/4in-12NF 260 1660114 2 End, Rod 261 3841137 1 Tie-Rod 262 0360016 1 Tow Bar Assembly (See Items 301-305 for Breakdown) 263 3040520 1 Lug, Tie-Rod 0360016 Ref TOW BAR ASSEMBLY (BALL HITCH) 301 1660009 1 Coupling, Hitch 302 3420352 1 Pin, Towing 303 4752600 1 Flatwasher 1in 304 3420158 1 Hairpin 305 1260135 AR Chain 0361891 Ref TOW BAR ASSEMBLY (PENTAL HOOK) 351 9981834 1 Lug, Hitch 352 3420352 1 Pin, Towing 353 4752600 1 Flatwasher 1in 354 3420158 1 Hairpin 355 1260017 AR Chain
