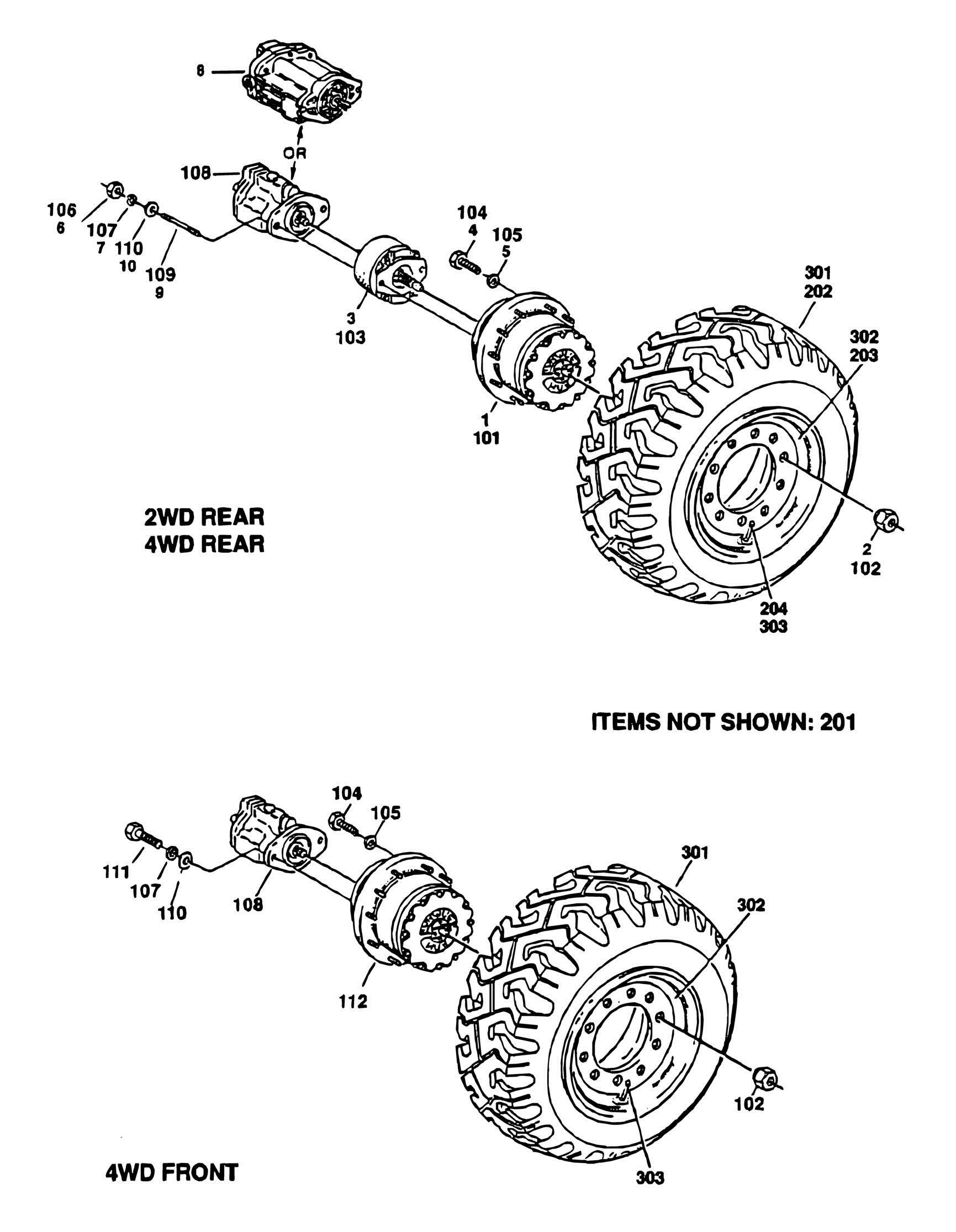

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref WHEEL DRIVE INSTALLATIONS (2WD) 0238521 Ref Gas/Diesel Machines Built (Prior to October 1992)
C 0238521 Ref All Electric Machines Built (October 1992 to Present) C 0253630 Ref Gas/Diesel Machines Built (October 1992 to Present)
(Standard)
0270217 Ref Gas/Diesel Machines (Post Production Alternative)(Standard) 1 0256126 Ref Gas/Diesel Machines Built (October 1992 to Present) (15%
Maximum Gradability)
0250218 Ref Gas/Diesel Machines (Post Production Alternative) (15%
Maximum Gradability)
1
1
Ref Drive Hub Assembly Options (See DRIVE HUB ASSEMBLIES for Breakdown): 1 Ref Electric Machines: 1 2780134 See Note 2 Electric Machines (Prior to March 1989) (W1B1 Stamped on ID Plate) (Note: When replacing complete hub recommend using 2780168 Hub Assembly.) 1 2780168 2 Electric Machines (March 1989 to Present) (W1BF Stamped on ID Plate) 1 Ref Gas/Diesel Machines: 1 2780134 See Note 2 Gas/Diesel Machines (Prior to March 1989) (W1B1 Stamped on ID Plate) (Note: When replacing complete hub recommend using 2780168 Hub Assembly.) 1 2780168 2 Gas/Diesel Machines (March 1989 to October 1992) (W1BF Stamped on ID Plate) 1 2780169 2 Gas/Diesel Machines (October 1992 to Present) (Standard) 1 2780167 2 Gas/Diesel Machines (October 1992 to Present) (15% Max Gradability) 2 3300012 18 Nut, Wheel 3 Ref Drive Brake Assembly Options: 3 0920072 2 Drive Brake Assembly (Prior to January 1992) (Ausco) (See DRIVE BRAKE ASSEMBLY - AUSCO for Breakdown) 3 0920084 2 Drive Brake Assembly (January 1992 to SN 33475) (Mico) (See DRIVE BRAKE ASSEMBLY - MICO for Breakdown) 3 0920110 2 Drive Brake Assembly (Mico) (See DRIVE BRAKE ASSEMBLY - MICO for Breakdown) (SN 33476 to Present) 3 0920119 2 Optional Brake (Mico) (May be used as alternative) (was p/n 0920117) 3 7018612 1 Repair Kit - 0920117/0920119 Brake (Includes Case Seal, Piston Inner and Outer O-Rings and Back-up Rings, Stator Disc, Rotor Disc, Return Plate, Springs, Oil Seal, Bearing, 2 Retaining Rings & 2 Mounting Face Gaskets) (1 Per Assembly) 3 7000731 2 Gasket, Mounting Face 4 0642016 12 Bolt 5/8in-11NC x 2in 5 4762000 12 Lockwasher 5/8in 6 3311801 4 Nut 1/2in-13NC 7 4761800 4 Lockwasher 1/2in 8 1001096405 2 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY - 2WD for Breakdown) (was p/n 3160132) 9 4300092 4 Stud 1/2in x 5 1/2in 10 4751800 4 Flatwasher 1/2in 0250432 Ref WHEEL DRIVE INSTALLATION (4WD) (REAR DRIVE HAS
SEPARATE HUB AND BRAKE)
C
ITEM PART NUMBER QTY DESCRIPTION
ALTERNATIVE)
101 Ref Drive Hub Assembly - Rear Options (See DRIVE HUB ASSEMBLIES for Breakdown): 101 2780175 2 Drive Hub Assembly - Rear (September 1989 to November 1992) 101 2780167 2 Drive Hub Assembly - Rear (November 1992 to Present) 102 3300012 36 Nut, Wheel 103 Ref Drive Brake Assembly Options: 103 0920072 2 Drive Brake Assembly (September 1989 to January 1992) (Ausco) (See DRIVE BREAK ASSEMBLY - AUSCO for Breakdown) 103 0920084 2 Drive Brake Assembly (January 1992 to SN 33475) (Mico) (See DRIVE BREAK ASSEMBLY - MICO for Breakdown) 103 0920110 2 Drive Brake Assembly (Mico) (See DRIVE BREAK ASSEMBLY MICO for Breakdown) (SN 33476 to Present) 103 0920119 2 Optional Brake (Mico) (May be used as alternative) (was p/n 0920117) 103 7018612 1 Repair Kit - 0920117/0920119 Brake (Includes Case Seal, Piston Inner and Outer O-Rings and Back-up Rings, Stator Disc, Rotor Disc, Return Plate, Springs, Oil Seal, Bearing, 2 Retaining Rings & 2 Mounting Face Gaskets) (1 Per Assembly) 103 7000731 2 Gasket, Mounting Face 104 0642014 24 Bolt 5/8in-11NC x 2in 105 4762000 24 Lockwasher 5/8in 106 3311801 4 Nut 1/2in-13NC 107 4761800 8 Lockwasher 1/2in 108 3160130 4 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY – 4WD for Breakdown) 109 4300092 4 Stud 1/2in-13NC x 5 1/2in 110 4751800 8 Flatwasher 1/2in 111 0641810 4 Bolt 1/2in-13NC x 1 1/4in 112 Ref Drive Hub/Brake Assembly - Front Options (See DRIVE HUB/BREAK ASSEMBLIES for Breakdown) 112 2780150 2 Drive Hub/Brake Assembly - Front (September 1989 to August 1992) 112 2780193 2 Drive Hub/Brake Assembly - Front (August 1992 to November 1992) 112 2780191 2 Drive Hub/Brake Assembly - Front (November 1992 to Present) Ref TIRE AND WHEEL OPTIONS (2WD) 201 Ref Tire and Wheel Options (2WD Front) (Not Shown) 201 0239396 2 Tire and Wheel Assembly - Pneumatic - 9.50in x 16.5in 201 4520110 2 Tire - 9.50in x 16.5in (General Jumbo GLT) 201 0253131 2 Tire and Wheel Assembly - Foam Filled 8.75in x 16.5in LT (Goodyear Unisteel) (Prior to SN 31086) 201 0253131 2 Tire and Wheel Assembly - Foam-Filled 8.75in x 16.5in LT (Galaxy) (SN 31086 to Present) 201 0239806 2 Tire and Wheel Assembly - Foam-Filled 9.5in x 16.5in (General) Ref Note: Assemblies may require ballast/foam filling to
manufacture’s specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and /or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.
202 Ref Tire and Wheel Options (2WD Rear) 202 0239397 2 Tire and Wheel Assembly - Pneumatic 9.5in x 16.5in Rear (Optional) 202 4520111 2 Tire - 9.5in x 16.5in (General Jumbo GLT)
REV
ITEM PART NUMBER QTY
DESCRIPTION
202 0253131 2 Tire and Wheel Assembly - Foam-Filled 8.75in x 16.5in LT (Goodyear Unisteel) (Prior to SN 31086) 202 0253131 2 Tire and Wheel Assembly - Foam-Filled 8.75in x 16.5in LT (Galaxy) (SN 31086 to Present) 202 0239805 2 Tire and Wheel Assembly - Foam-Filled 9.5in x 16.5in (General) Ref Note: Assemblies may require ballast/foam filling to
manufacture’s specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and /or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.
203 Ref Rim Options: 203 4842561 4 Rim (8.75in Tires) 203 4842994 4 Rim (9.5in Tires) 204 4640392 4 Valve, Air Ref TIRE AND WHEEL OPTIONS (4WD) 301 Ref Tire and Wheel Options (4WD Front and Rear) 301 0239397 4 Tire and Wheel Assembly - Pneumatic 9.5in x 16.5in 301 4520106 4 Tire - 9.5in x 16.50in (General GLT Traction II) 301 0251260 2 Tire and Wheel Assembly - LH Side Pneumatic 12in x 16.5in (NHS) 301 0251259 2 Tire and Wheel Assembly - RH Side Pneumatic 12in x 16.5in (NHS) 301 4520129 4 Tire - 12in x 16.5in (NHS) 301 0253131 4 Tire and Wheel Assembly - Foam-Filled 8.75in x 16.50 LT (Goodyear Unisteel) (Prior to SN 31086) 301 0253131 4 Tire and Wheel Assembly - Foam-Filled 8.75in x 16.5in LT (Galaxy) (SN 31086 to Present) 301 0239806 4 Tire and Wheel Assembly - Foam-Filled 9.5in x 16.5in (General) Ref Note: Assemblies may require ballast/foam filling to
manufacture’s specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and /or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.
302 Ref Rim Options: 302 4842561 4 Rim (8.75in Tires) 302 4842994 4 Rim (9.5in Tires) 302 4860126 4 Rim (12in Tires) 303 4640392 4 Valve, Air
