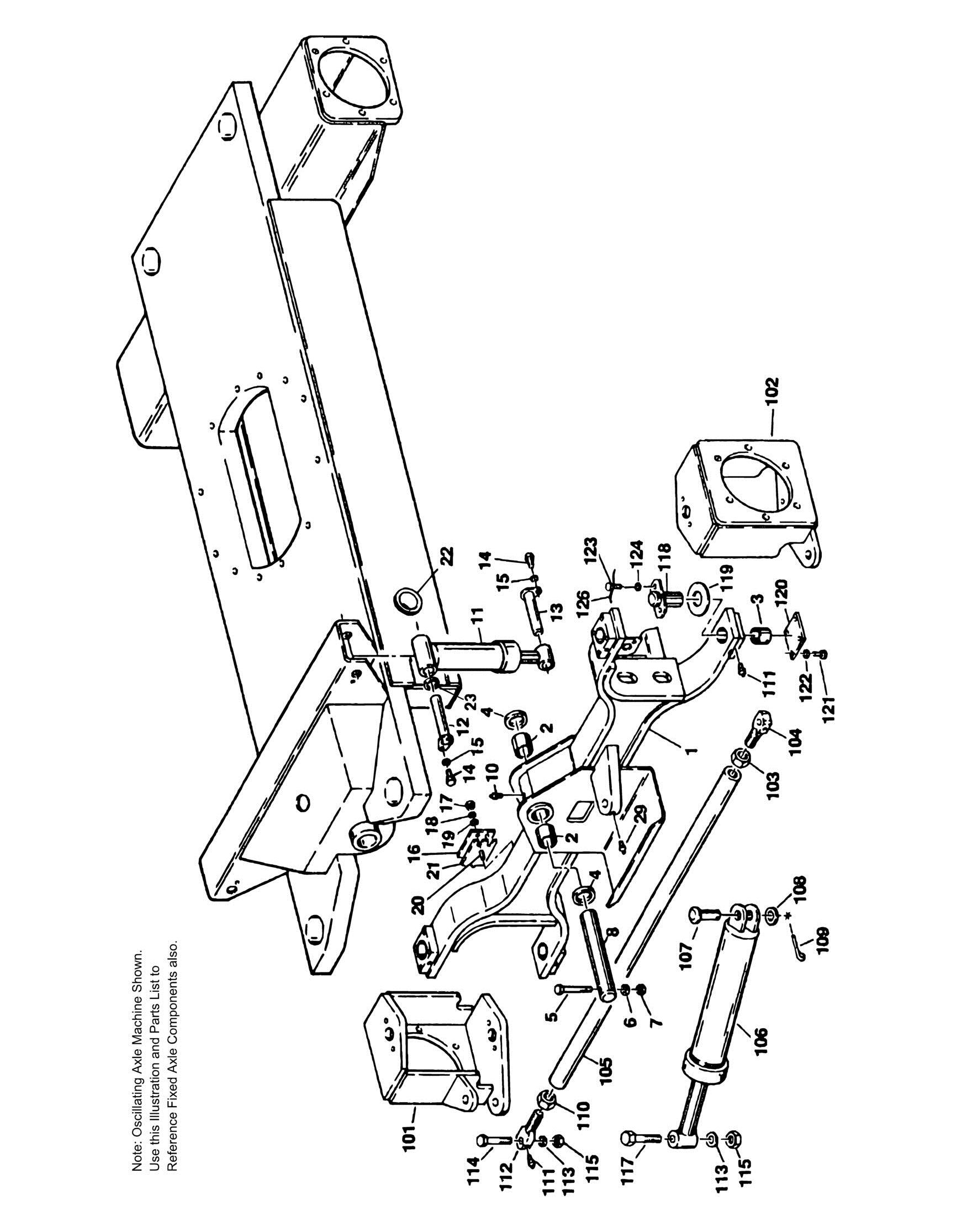

FIGURE 1-3. FRAME AND STEERING INSTALLATION 6FT-6IN/2M 4WD FRAME
ITEM PART NUMBER QTY DESCRIPTION
Ref FRAME OPTIONS 2360277 1 Fixed Axle (Machines with 8.75in & 9.5in Tires) 2360392 1 Fixed Axle (Machines with 12in Tires) 2360272 1 Oscillating Axle (Machines with 8.75in & 9.5in Tires) 2360393 1 Oscillating Axle (Machines with 12in Tires) 0251976 Ref OSCILLATING AXLE INSTALLATION (OPTIONAL) 1 4842930 1 Axle Weldment 2 0961003 2 Bushing, Bronze (Axle Pivot) 3 0961029 4 Bushing, Bronze (Steer Pivot) 4 4740158 2 Washer, Thrust 5 0641630 1 Bolt 3/8in-16NC x 3 3/4in 6 4751600 1 Flatwasher 3/8in 7 3311605 1 Locknut 3/8in-16NC 8 3421500 1 Pin, Pivot (Axle) 10 2160002 1 Fitting, Grease - Straight 11 1682406 2 Lockout Cylinder Assembly (See CYLINDER SECTION for Breakdown) 12 4842622 2 Pin, Attach (Top) (Lockout Cylinder) 13 4842794 2 Pin, Attach (Bottom) (Lockout Cylinder) 14 0641406 4 Bolt 1/4in-20NC x 3/4in 15 4761400 4 Lockwasher 1/4in 15 4751400 4 Flatwasher 1/4in 16 4220115 2 Stop, Axle 17 3311801 4 Nut 1/2in-13NC 18 4761800 4 Lockwasher 1/2in 19 4751800 4 Flatwasher 1/2in 20 4300045 4 Stud (Welded on Part) 21 4070690 AR Shim 22 0961127 2 Bushing, Snap 23 4712600 AR Flatwasher 0238637 Ref STEERING INSTALLATION 101 4130192 1 Spindle (Right Side) 102 4130190 1 Spindle (Left Side) 103 3300229 1 Nut, Jam (Left Hand Thread) 104 0560714 1 Block, Tie-Rod (Left Side) 105 3840861 1 Tie-Rod 106 1681892 1 Steer Cylinder Assy (See CYLINDER SECTION for Breakdown) 107 3431622 1 Pin, Clevis 108 4712600 1 Flatwasher 1in Narrow 109 3450606 1 Pin, Cotter 3/16in x 1 1/2in 110 3323002 1 Nut, Jam 1 1/4in-12NF 111 2160002 6 Fitting, Grease 112 0560605 1 Block, Tie-Rod (Right Side) 113 0440091 3 Washer, Thrust 114 0642628 2 Bolt 1in-8NC x 3 1/2in 115 3312602 3 Nut, Jam 1in-8NC 117 0630369 1 Bolt, Special 118 3421190 4 Kingpin 119 0440161 2 Bearing, Thrust 120 Ref Plate, Cover Options:
REV
3
E
ITEM PART NUMBER QTY
DESCRIPTION
120 3530244 4 Plate, Cover (Prior to August 1992) 120 3536410 4 Plate, Cover (August 1992 to Present) 121 0641404 8 Bolt 1/4in-20NC x 1/2in (Prior to August 1992) 121 4300106 8 Drivescrew (August 1992 to Present) 122 4761400 8 Lockwasher 1/4in (Prior to August 1992 Only) 123 0630083 8 Bolt, Special 124 4761600 8 Lockwasher 3/8in 126 4920096 4 ft/20cm Wire, Safety 0100011 AR Loctite #242
