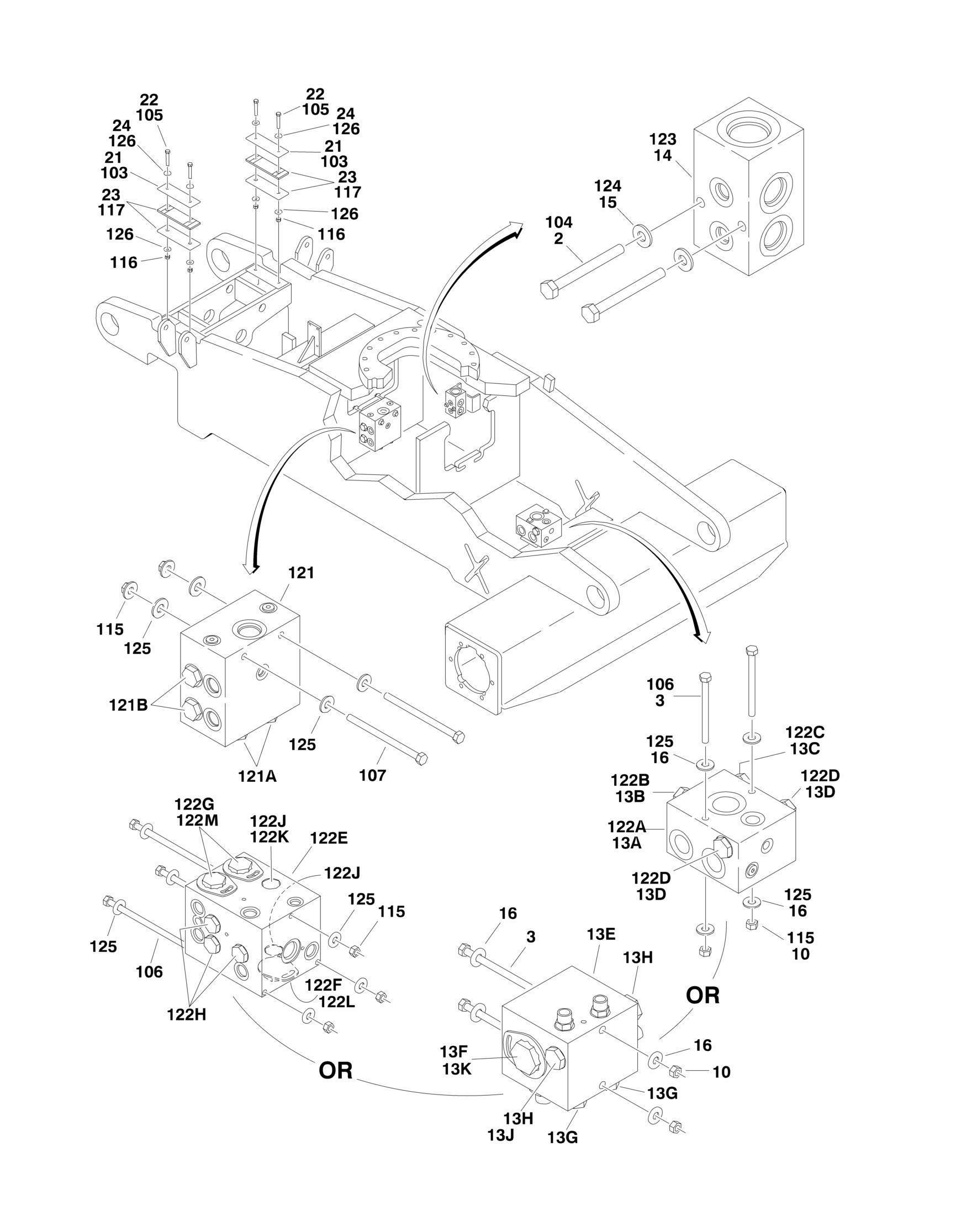

FIGURE 1-15. DRIVE VALVES INSTALLATIONS

FIGURE 1-15. DRIVE VALVES INSTALLATIONS

FIGURE 1-15. DRIVE VALVES INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref DRIVE VALVES INSTALLATION - 2WD 0270870 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300065080

through 0300071526)

E

0272907 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300071527

through 0300100513)

0275470 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300100514

through 0300107512)

C

D

0275470 Ref GM Engine Machines (SN 0300065080 through 0300107511) D 0275853 Ref All Machines (SN 0300107512 through 0300123999) F Ref Note: 2WD Models Manufactured in USA Only. 2 0641420 2 Bolt 1/4in-20NC x 2-1/2in 3 Ref Bolt Options: 3 0641530 2 Bolt 5/16in-18NC x 3-3/4in (SN 0300065080 through

0300107511)

3 0641542 2 Bolt 5/16in-18NC x 5-1/4in (SN 0300107512 through

0300123999)

10 3311505 2 Locknut 5/16in-18NC 13 Ref Flow Divider Valve Assembly Options: 13A 4641206 1 Flow Divider for Caterpillar/Deutz/Ford Engine Machines (SN

0300065080 through 0300100513)

13A 4641207 1 Flow Divider for Caterpillar/Deutz/Ford Engine Machines (SN

0300100514 through 0300107511)

13A 4641207 1 Flow Divider for GM Engine Machines (SN 0300065080

through 0300107511)

A 13B 7023933 1 Valve, Cartridge (Flow Divider) (4641206 Valve) 13B 7023917 1 Valve, Cartridge (Flow Divider) (4641207 Valve) 13B 7021625 1 Seal Kit - 7023917 Flow Divider Cartridge 13C 7022397 1 Valve, Cartridge (Check) (4641206 & 4641207 Valves) 13C 7022399 1 Seal Kit - 7022397 Check Cartridge 13D 7010542 2 Valve, Cartridge (Load Shuttle) (4641206 & 4641207 Valves) 13D 7010543 2 Seal Kit - 7010542 Load Shuttle Cartridge 13E 4641509 NLA Flow Divider for All 2WD Machines (Use p/n 1001099390) (SN

0300107512 through 0300123999)

C Ref Note: Original Equipment Valve may have been replaced

with Service Replacement Valve p/n 1001099390. Identify p/n stamped on Valve before ordering parts.

13F 7023917 1 Valve, Cartridge (Flow Divider) (4641509 & 1001099390 Valves) 13F 7021625 1 Seal Kit - 7023917 Flow Divider Cartridge 13G 7022397 2 Valve, Cartridge (Check) (4641509 & 1001099390 Valves) 13G 7022399 2 Seal Kit - 7022397 Check Cartridge 13H 7021639 2 Valve, Cartridge (Check) (4641509 Valve) 13H 7017496 2 Seal Kit - 7021639 Check Cartridge (was p/n 2900756) 13H 70002390 2 Valve, Cartridge (Check) (1001099390 Valve) 13H 7022399 2 Seal Kit - 70002390 Check Cartridge 13J 7024881 1 Piston, Pilot (4641509 & 1001099390 Valves) 13K 70000781 1 Lockdown Kit (4641509 & 1001099390 Valves) 14 4641155 1 Valve, Junction Manifold A 15 4711400 2 Flatwasher 1/4in Thin 16 4751500 4 Flatwasher 5/16in Regular 21 0363012 2 Bar, Clamping 22 0641618 4 Bolt 3/8in-16NC x 2-1/4in

ITEM PART NUMBER QTY DESCRIPTION REV

23 3340911 4 Rubber, Clamp 24 4751600 4 Flatwasher 3/8in Regular Ref DRIVE VALVES INSTALLATIONS - 4WD 0270871 Ref USA Built Machines (SN 0300065080 through 0300069154) F 0272320 Ref USA Built Machines (SN 0300069155 through 0300071526) C 0272895 Ref USA Built Machines (SN 0300071527 through 0300107511) G 0275854 Ref USA Built Machines (SN 0300107512 through 0300123999) C 0272320 Ref Belgium Built Machines (SN 1300000001 through 1300000063) C 0272895 Ref Belgium Built Machines (SN 1300000064 through 1300003221) G 0275854 Ref Belgium Built Machines (SN 1300003222 through 1300006000) B 103 0363012 2 Bar, Clamping 104 0641420 2 Bolt 1/4in-20NC x 2-1/2in 105 0641618 4 Bolt 3/8in-16NC x 2-1/4in 106 0641530 2 Bolt 5/16in-18NC x 3-3/4in (USA Built Machines) (SN

0300065080 through 0300107511)

106 0641530 2 Bolt 5/16in-18NC x 3-3/4in (Belgium Built Machines) (Prior to SN

1300003222)

106 0641560 3 Bolt 5/16in-18NC x 7-1/2in (USA Built Machines) (SN

0300107512 through 0300123999)

106 0641560 3 Bolt 5/16in-18NC x 7-1/2in (Belgium Built Machines) (SN

1300003222 through 1300006000)

107 0641538 2 Bolt 5/16in-18NC x 4-3/4in (USA Built Machines) (SN

0300065080 through 0300107511)

107 0641538 2 Bolt 5/16in-18NC x 4-3/4in (Belgium Built Machines) (Prior to SN

1300003222)

115 3311505 AR Locknut 5/16in-18NC 116 3311605 4 Locknut 3/8in-16NC (SN 0300065080 through 0300065160) 117 3340911 4 Rubber, Clamp 121 4641208 1 Flow Divider Valve Assembly (USA Built Machines) (SN

0300065080 through 0300107511)

A 121 4641208 1 Flow Divider Valve Assembly (Belgium Built Machines) (Prior to

SN 1300003222)

A 121A 7023934 2 Valve, Cartridge (Flow Divider) (4641208 Valve) 121A 7021655 2 Seal Kit - 7023934 Flow Divider Cartridge 121B 7023935 4 Valve, Cartridge (Check) (4641208 Valve) 121B 7023936 4 Seal Kit - 7023936 Check Cartridge 122 Ref Flow Divider Valve Assembly Options: 122A 4641207 1 Flow Divider Valve Assembly (USA Built Machines) (SN

0300065080 through 0300107511)

A 122A 4641207 1 Flow Divider Valve Assembly (Belgium Built Machines) (Prior

to SN 1300003222)

A 122B 7023917 1 Valve, Cartridge (Flow Divider) (4641207 Valve) 122B 7021625 1 Seal Kit - 7023917 Flow Divider Cartridge 122C 7022397 1 Valve, Cartridge (Check) (4641207 Valve) 122C 7022399 1 Seal Kit - 7022397 Check Cartridge 122D 7010542 2 Valve, Cartridge (Load Shuttle) (4641207 Valve) 122D 7010543 2 Seal Kit - 7010542 Load Shuttle Cartridge 122E 4641510 1 Flow Divider Valve Assembly (USA Built Machines) (SN

0300107512 through 0300123999)

C 122E 4641510 1 Flow Divider Valve Assembly (Belgium Built Machines) (SN

1300003222 through 1300006000)

C 122F 7023917 1 Valve, Cartridge (Flow Divider) (4641510 Valve) 122F 7021625 1 Seal Kit - 7023917 Flow Divider Cartridge 122G 7023934 2 Valve, Cartridge (Flow Divider) (4641510 Valve)

ITEM PART NUMBER QTY

DESCRIPTION

122G 7021655 2 Seal Kit - 7023934 Flow Divider Cartridge 122H 7022397 5 Valve, Cartridge (Check) (4641510 Valve) 122H 7022399 5 Seal Kit - 7022397 Check Cartridge 122J 7021639 2 Valve, Cartridge (Check) (4641510 Valve) 122J 7017496 2 Seal Kit - 7021639 Check Cartridge (was p/n 2900756) 122K 7024881 1 Piston, Pilot (4641510 Valve) 122L 70000781 1 Lockdown Kit (4641510 Valve-Port FD1) 122M 70002962 2 Lockdown Kit (4641510 Valve-Ports FD2 & FD3) 123 4641155 1 Valve, Junction Manifold 124 4711400 2 Flatwasher 1/4in Thin 125 4751500 8 Flatwasher 5/16in Regular 126 4751600 AR Flatwasher 3/8in Regular

REV

A
