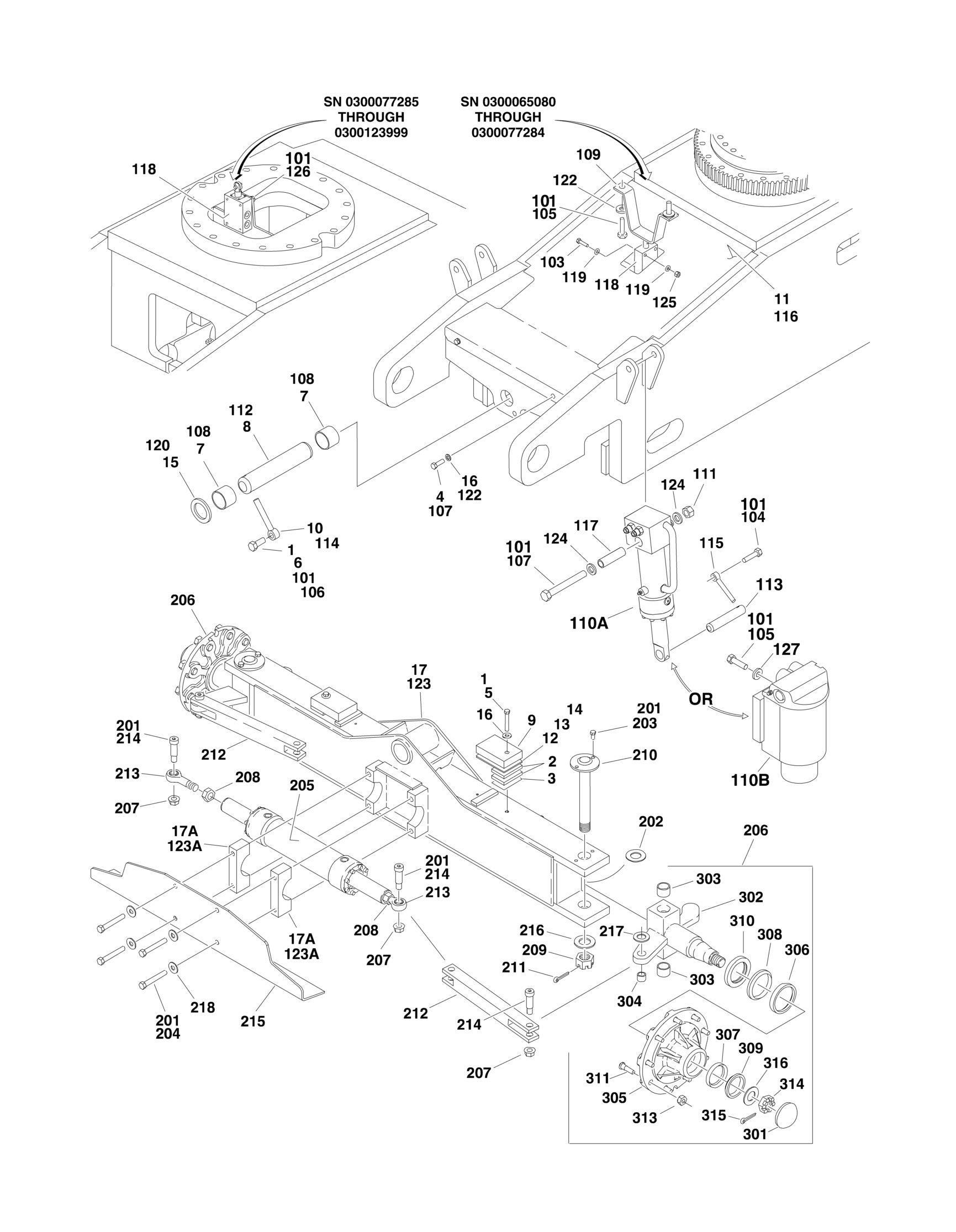

FIGURE 1-1. AXLE AND STEERING INSTALLATION - 2WD WITHOUT TOW BAR
ITEM PART NUMBER QTY DESCRIPTION REV
Ref FIXED AXLE INSTALLATION 0270971 Ref Fixed Axle (SN 0300065080 through 0300107511) 0274690 Ref Fixed Axle (SN 0300107512 through 0300123999) E A
Ref Note: USA Manufacture Only. 1 0100011 AR Compound, Locking 2 0362763 4 Bar, Stop 3 0362764 2 Bar, Stop 4 Ref Bolt 3/8in-16NC x 7/8in 4 0641607 2 Hex HD Capscrew Gr5, 3/8-16 X 7/8 Lg (SN 0300065080
through 0300069840)
4 See Note 2 Hex HD Capscrew Gr5, 3/8-16 X 7/8 Lg (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through
0300123999)
5 0641626 2 Bolt 3/8in-16NC x 3-1/4in 6 0642012 1 Bolt 5/8in-11NC x 1-1/2in 7 0961950 2 Bushing, Garmax 8 3422592 1 Pin, Axle Pivot 9 3570901 2 Plate, Stop 10 3841258 1 Keeper, Pin 11 Ref Shield, Frame 11 4061020 1 Shield, Frame (SN 0300065080 through 0300069840) 11 See Note 1 Shield, Frame (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through 0300123999) 12 4070972 AR Shim 3/16in 13 4070973 AR Shim 1/8in 14 4070974 AR Shim 1/16in 15 4740158 1 Thrustwasher 16 4751600 2 Flatwasher 3/8in Regular 17 Ref Axle Weldment Options: 17 4846352 1 Axle (SN 0300065080 through 0300107511) 17 0280200 1 Axle (SN 0300107512 through 0300123999) 17A 0561300 NLA Steer Cylinder Mounting Block Assy (Use p/n 1001100424) 18 2220235 3 Fitting, O-Ring (Not Shown) Ref OSCILLATING AXLE INSTALLATIONS 0270970 Ref Oscillating Axle (SN 0300065080 through 0300077284) G 0273487 Ref Oscillating Axle (SN 0300077285 through 0300107511) C 0274685 Ref Oscillating Axle (SN 0300107512 through 0300123999) A Ref Note: USA Manufacture Only. 101 0100011 AR Compound, Locking 101 0100019 AR Compound, Locking 102 0100038 AR Primer, Locking #7471 103 0641416 4 Bolt 1/4in-20NC x 2in (SN 0300065080 through 0300077284) 104 0641607 2 Bolt 3/8in-16NC x 7/8in (SN 0300065080 through 0300107511) 105 0641814 AR Bolt 1/2in-13NC x 1-3/4in 106 0642012 1 Bolt 5/8in-11NC x 1-1/2in 107 0682248 2 Bolt 3/4in-10NC x 6in (SN 0300065080 through 0300107511) 108 0961950 2 Bushing, Garmax 109 Ref Cam, Lockout Options: 109 1100127 1 Cam, Lockout (SN 0300065080 through 0300069336) 109 1100133 1 Cam, Lockout (SN 0300069337 through 0300077284)
ITEM PART NUMBER QTY
DESCRIPTION
109 Not Required 1 Cam, Lockout (SN 0300077285 through 0300123999) 110 Ref Lockout Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 110A 1684129 2 Lockout Cylinder Assembly (SN 0300065080 through
0300069336)
110B 1684465 2 Lockout Cylinder Assembly (SN 0300069337 through
0300077285)
111 3272201 2 Nut 3/4in-10NC (SN 0300065080 through 0300107511) 112 3422592 1 Pin, Axle Pivot 113 3422520 2 Pin (SN 0300065080 through 0300107511) 114 3841258 1 Keeper, Pin 115 3841220 2 Keeper, Pin (SN 0300065080 through 0300107511) 116 Ref Shield, Frame 116 4061020 1 Shield, Frame (SN 0300065080 through 0300069840) 116 See Note 1 Shield, Frame (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through 0300123999) 117 4567462 2 Tube, Mounting (SN 0300065080 through 0300107511) 118 Ref Lockout Valve Assembly Options: 118 4640871 1 Valve (SN 0300065080 through 0300077284) 118 7012693 1 Seal Kit - 4640871 Valve 118 7002840 1 Anti-Rotation Pin Removal Tool 118 4641265 1 Valve (SN 0300077285 through 0300123999) 119 4711400 8 Flatwasher 1/4in Thin (SN 0300065080 through 0300077284) 120 4740158 1 Thrustwasher 122 4751800 4 Flatwasher 1/2in Regular (SN 0300065080 through
0300077284)
123 Ref Axle Weldment Options: 123 4846352 1 Axle Weldment (SN 0300065080 through 0300107511) 123 0280200 1 Axle Weldment (SN 0300107512 through 0300123999) 123A 0561300 NLA Steer Cylinder Mounting Block Assy (Use p/n 1001100424) 124 4892200 4 Flatwasher 3/4in Hardened (SN 0300065080 through
0300107511)
125 3311405 4 Locknut 1/4in-20NC (SN 0300065080 through 0300077284) 126 0791506 4 Screw, 5/16in-18NC x 3/4in (SN 0300077285 through
0300123999)
127 4891800 4 Flatwasher, Hardened 1/2in (SN 0300107512 through
0300123999)
0271012 Ref STEERING INSTALLATION Ref Note: USA Manufacture Only. 201 0100011 AR Compound, Locking 202 0440162 2 Thrustwasher 203 0641606 4 Bolt 3/8in-16NC x 3/4in 204 0681826 4 Bolt 1/2in-13NC x 3-1/4in 205 Ref Steer Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 205 1683614 NLA Steer Cylinder Assembly (Use p/n 1684412) (SN 0300065080
through 0300087391)
205 1684412 1 Steer Cylinder Assembly (SN 0300087392 through
0300123999)
206 2780230 2 Hub/Spindle Assembly (See Items 301-316 for Breakdown) 207 3312008 4 Nut 5/8in-11NC 208 3322201 2 Nut 3/4in-16NF 209 3323003 2 Nut 1-1/4in-12NF 210 3422692 2 Kingpin
REV
G
ITEM PART NUMBER QTY DESCRIPTION
211 3450808 2 Pin, Cotter 1/4in x 2in 212 3841377 2 Tie-Rod 213 3841517 2 Rod-End with Grease Fitting 214 3900109 4 Screw, Shoulder 215 4060950 1 Shield, Frame (SN 0300065080 through 0300074064) 216 4713000 2 Flatwasher 1-1/4in Thin 217 4740086 2 Thrustwasher 218 4751800 4 Flatwasher 1/2in Regular 2780230 Ref HUB ASSEMBLY 301 7020033 2 Cap, Dust (1 per Assembly) 302 7020034 2 Spindle Assembly (1 per Assembly) 303 0961951 4 Bushing, Garmax (2 Per Assembly) 304 0962140 2 Bearing, Garmax (1 per Assembly) 305 7020035 2 Hub (1 per Assembly) (Includes 306 AND 307) 306 7020036 2 Cup, Bearing - Inner(1 per Assembly) 307 7020038 2 Cup, Bearing - Outer (1 per Assembly) 308 7020037 2 Cone, Bearing - Inner (1 per Assembly) 309 7020039 2 Cone, Bearing - Outer (1 per Assembly) 310 7020040 2 Seal (1 Per Assembly) 311 7020041 18 Stud, Wheel (9 Per Assembly) 313 7020042 18 Lugnut (9 per Assembly) 314 7020054 2 Nut, Castle (1 per Assembly) 315 3450608 2 Pin, Cotter (1 Per Assembly) 316 7020055 2 Washer, Spindle (1 Per Assembly)
REV
A
