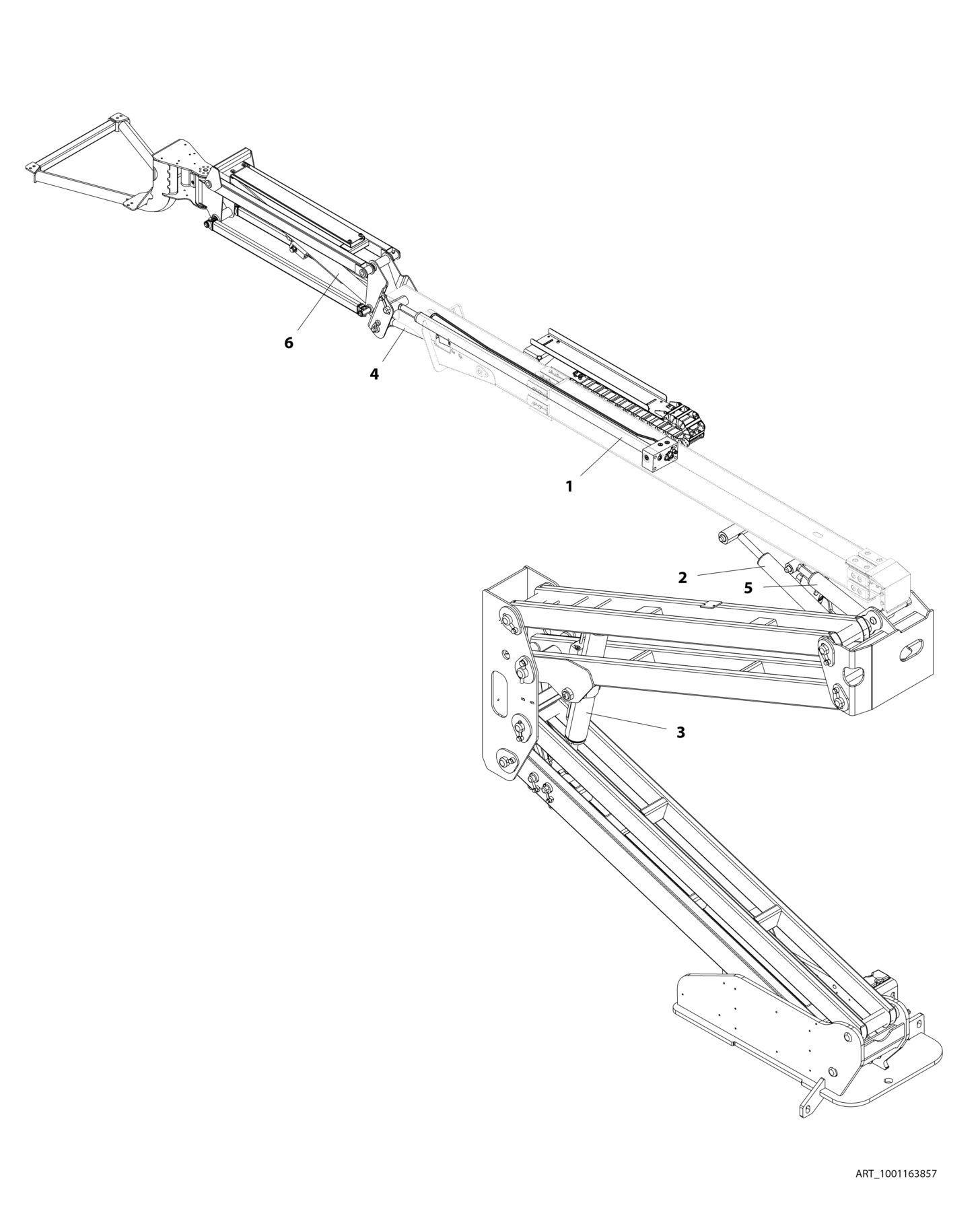

FIGURE 4-3. CYLINDERS INST ALLATION - 450AJ (ROMANIAN BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001163857 Ref CYLINDERS INSTALLATION - 450AJ (ROMANIAN BUILT MACHINES) 1 1001161713 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) 2 1001181324 1 Lift Cylinder Assembly - Main Boom (See CYLINDER SECTION for Breakdown) (SN E300002833 through E300004225) 2 1001217676 1 Lift Cylinder Assembly - Main Boom (See CYLINDER SECTION for Breakdown) (SN 1300007279 through 1300007373, SN
E300004226 through E300007990, Excluding E300007814)
3 1001161715 1 Lift Cylinder Assembly - Tower Boom (See CYLINDER SECTION for Breakdown) 4 1001161716 1 Level (Platform Slave) Cylinder Assembly (See CYLINDER SECTION for Breakdown) 5 1001161717 1 Master Cylinder Assembly (See CYLINDER SECTION for Breakdown) 6 1001163767 1 Lift Cylinder Assembly - Jib (See CYLINDER SECTION for Breakdown)
REV
C
