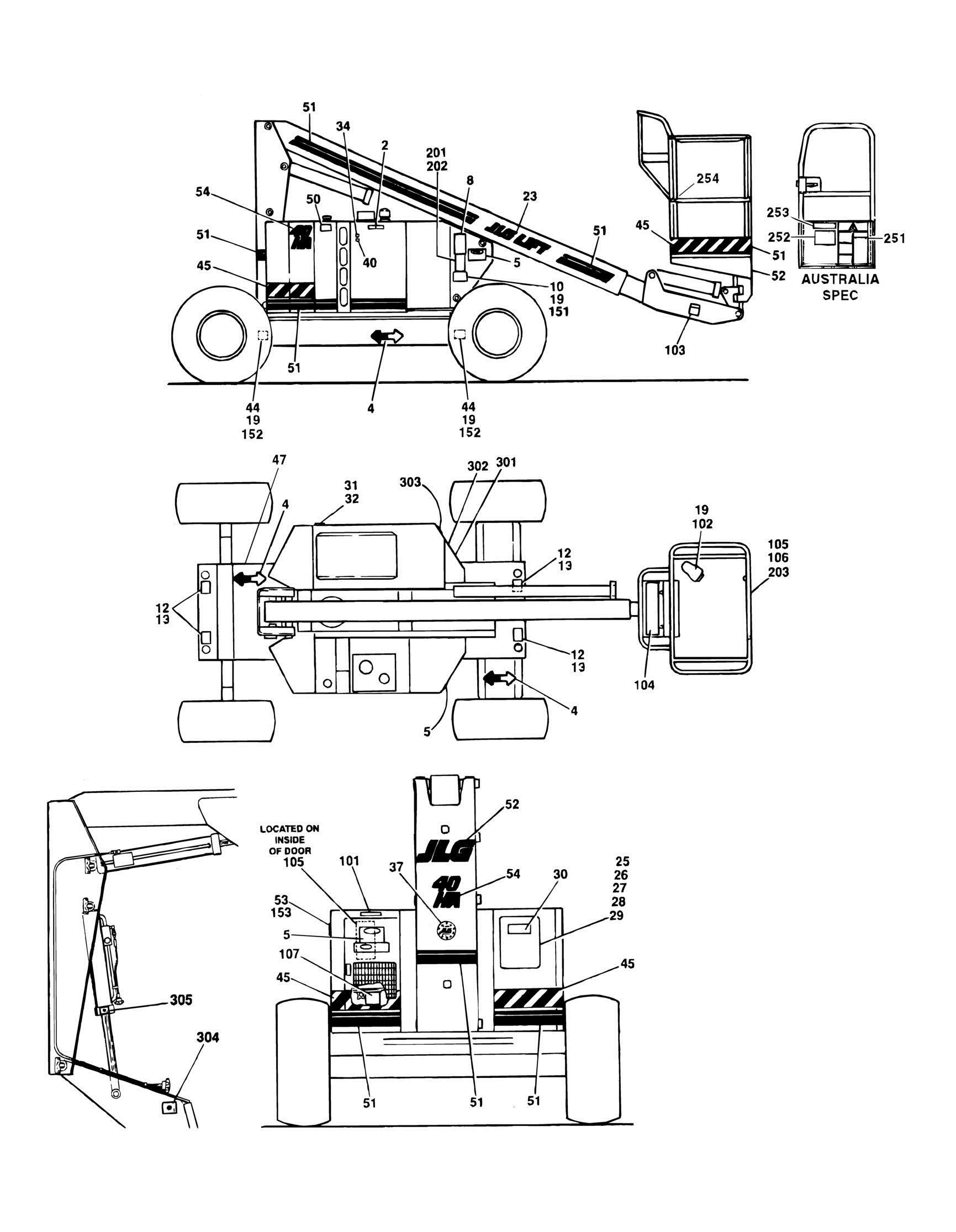

FIGURE 8 2. DECALS INSTALLATION (FEBRUARY 1992 TO PRESENT
ITEM PART NUMBER QTY
DESCRIPTION
0252822 Ref DECALS INSTALLATION (STANDARD PARTS) 2 1701504 1 Decal - Hydraulic 4 1701529 4 Decal - Arrow 5 1701518 4 Decal - Crushing 8 1700584 1 Decal - Patent 10 Consult Factory 1 Nameplate - Serial Number (Prior to SN 29221) 12 1701500 AR Decal - Tie Down/Lift 13 1702300 4 Decal - Tie Down (SN 27521 to Present) 19 3820001 AR Rivet 23 1701550 2 Decal - JLG Lift 25 0860520 1 Box, Manual Storage 26 4751400 6 Flatwasher 1/4in 27 3311405 5 Locknut 1/4in-20NC 28 1060279 1 Lanyard 29 0641408 1 Bolt 1/4in-20NC x 1in 30 1701509 1 Decal - Manual 31 0961127 1 Bushing, Snap 32 0100010 AR Adhesive 34 1701502 1 Decal - Add/Full 37 3251813 1 Nameplate - Made in U.S.A. (Prior to September 1995) 40 1701503 1 Decal - Hydraulic Oil Level (Low) 44 1701555 4 Decal - Tire Pressure (Prior to September 1995) 45 4420052 17 ft/5m Tape, Safety 47 Not Available 1 Decal - Bar Code 2900999 1 Decal - Kit (Black) (Includes Items 2, 4, 5, 8, 12, 13, 23, 30, 34, 40, 45, 52, 53, 54 & 301-305) Ref DECAL INSTALLATIONS (VARIABLE PARTS) 0252822 Ref DECAL INSTALLATION - BROWN E
0252823 Ref DECAL INSTALLATION - BLACK 50 Ref Decal - Diesel Fuel Options: 50 1700428 1 Brown 50 1700196 1 Black 51 Ref Decal - Stripe Options: 51 1700431 35.5 Brown (Prior to September 1995) ft/11m 51 1701703 35.5 Brown (September 1995 to Present) ft/11m 51 1701334 35.5 Black ft/11m 52 Ref Decal - JLG Options: 52 1700981 2 Brown 52 1701321 2 Black 53 Ref Decal - 40HA Options: 53 1701239 1 Decal Brown - 40HA 53 1701725 1 Decal Black - 40HA (Located on Engine Door Only) 54 Ref Decal - 40HA Options: 54 1701470 2 Brown 54 1701594 2 Black Ref DECALS INSTALLATIONS: 0252824 Ref EURO ENGLISH AND AUSTRALIA
REV
E
ITEM PART NUMBER QTY
0252825 Ref FRENCH
DESCRIPTION
0252826 Ref GERMAN AND AUSTRIAN 0252828 Ref DUTCH 0252827 Ref ITALIAN 0253261 Ref SPANISH 101 Ref Decal - Ground Control Options: 101 1700037 1 Euro English and Australia - Ground Control 101 1701515 1 French - Commandes Sol 101 1693285 1 German and Austrian - Bodenkontrolle 101 1701616 1 Dutch - Noodbeniening 101 1701599 1 Italian - Comando A Terra 101 1701789 1 Spanish - Control De Tierra 102 Ref Nameplate - Footswitch Options: 102 3252347 1 Euro English and Australia - (Machines built prior to July 1992) (was p/n 3251766) 102 1693292 1 French - Attention 102 1693294 1 German and Austrian - Achtung 102 1703518 1 Dutch 102 1701600 1 Italian - Attenzione 102 1701791 1 Spanish - Precaucion 103 Ref Decal - Caution Options: 103 1701460 2 Euro English and Australia - Caution (Prior to May 1994) 103 1702280 2 Euro English and Australia - Cauiton (May 1994 to Present) 103 1701572 2 French - Attention 103 1701573 2 German and Austrian - Vorsicht 103 1701574 2 Dutch - Waarschuwing 103 1701571 2 Italian - Attenzione 103 1701796 2 Spanish - Precaucion 104 Ref Decal - Caution Options: 104 1690696 1 Euro English and Australia - Caution 104 1693286 1 French - Attention 104 1693288 1 German and Austrian - Achtung 104 Not Required 0 Dutch 104 1701601 1 Italian - Attenzione 104 1701794 2 Spanish - Precaucion 105 Ref Decal - Caution Options: 105 1691483 1 Euro English and Australia - Caution 105 1693289 1 French - Attention 105 1693291 1 German and Austrian - Achtung 105 1701596 2 Dutch - Belangrÿk 105 1701602 1 Italian - Attenzione 105 1701798 1 Spanish - Precaucion 106 Ref Decal - Caution Options: 106 1690697 1 Euro English and Australia - Caution 106 1701577 1 French - Capacity (Prior to SN 29221) 106 1701649 1 French - Capacity (SN 29221 to Present) 106 1690697 1 German and Austrian - Capacity 106 1701567 1 Dutch - Capacity 106 1690697 1 Italian - Capacity 106 1690697 1 Spanish - Capacity 107 Ref Decal - Important Options: 107 1702265 1 Euro English and Australia - Important
REV
2 A 2 A B
ITEM PART NUMBER QTY DESCRIPTION
107 1702270 1 French - Important 107 1702267 1 German and Austrian - Important 107 1702268 1 Dutch - Important 107 1702269 1 Italian - Important 107 1702266 1 Spanish - Important 0257168 Ref DECALS INSTALLATION - CE 2
151 Not Available 1 Nameplate - Serial Number 152 1703248 4 Decal - Max Wheel Load 153 1702928 1 Decal - CE (Located on Engine Door Only) 0253554 Ref DECALS INSTALLATION - AUSTRALIAN ONLY (Prior to SN
34839)
201 Ref Nameplate - Important Options: 201 3252197 1 Nameplate - Important (Prior to SN 26473) 201 1702958 1 Nameplate - Important (SN 26473 to Present) 202 3820001 4 Rivet 203 1701818 2 Decal - Access Forbidden 0257269 Ref DECALS INSTALLATION - AUSTRALIAN ONLY (SN 34839 to
Present)
251 1703677 1 Decal - Safe Working Load 252 1703665 2 Decal - Danger (Electric Hazard) 253 1703663 1 Decal - Maintenance 254 1703664 1 Decal - Caution 0251830 Ref MANUAL DESCENT DECALS INSTALLATION (AUSTRALIAN,
FRENCH AND ITALIAN SPEC)
301 1701428 1 Decal - #1 302 1701427 1 Decal - #2 303 1701495 1 Decal - Instructions 304 1701493 1 Decal - #1 305 1701494 1 Decal - #2
REV
C
3
A
