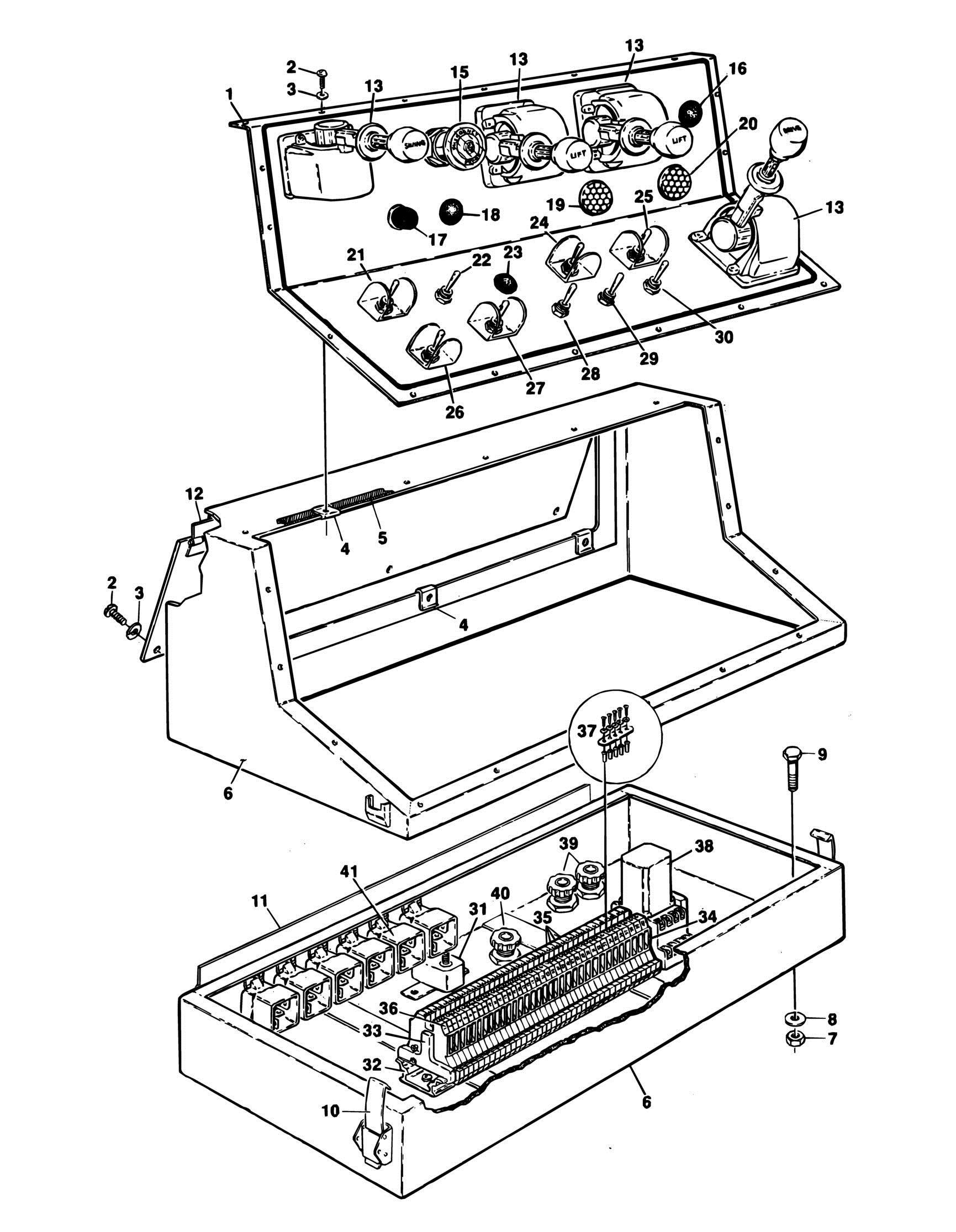

FIGURE 4-5. CONSOLE BOX ASSEMBLY (PROPORTIONAL CONTROLS - PRIOR TO JANUARY 1993
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONSOLE BOX ASSEMBLIES 0860720 Ref CONSOLE BOX ASSEMBLY - 2WS 0860719 Ref CONSOLE BOX ASSEMBLY - 4WS 1 3252043 1 Lid 2 0751006 18 Screw, Pan Head #10-24NC x 3/4in 3 4740120 18 Washer, Nylon 4 3300177 18 Nut, Tinnerman 5 4420038 37 in/1m Tape, Insulation 5 0100001 AR Adhesive 6 0860538 1 Box, Control (Includes Items 10-12) 7 3311505 4 Nut 5/16in-18NC 8 4751500 4 Flatwasher 5/16in 9 0641508 4 Bolt 5/16in-18NC x 1in 10 2940052 2 Latch 11 2600132 1 Hinge (Top to Bottom) 12 2600105 1 Hinge (Access Door) 13 1600126 3 Controller, PQ (Swing and LIfts) 13 7003782 1 Electrical Assembly 13 1600116 1 Controller, PQ (Drive) (2WS) 13 7003783 1 Electrical Assembly 13 1600135 1 Controller, PQ (Drive) (4WS) 13 7003797 1 Electrical Assembly 13 7003789 2 Switch, Rocker 13 7003790 1 Cap, Rubber 13 2560038 2 Knob (Lift) 13 2560040 1 Knob (Swing) 13 2560041 1 Knob (Drive) (2WS Only) 14 4360274 1 Switch, Push Button (Horn) 14 3790015 1 O-Ring 15 4360132 1 Switch, Push-Pull (Emergency Stop) 15 4360131 1 Lens, Red 15 4360108 1 Block, Contact - N.C. 16 3520028 1 Plug, Hole 17 4360274 1 Switch, Push Button (Start) 17 3790015 1 O-Ring 18 3520026 1 Plug, Hole 19 2920015 1 Light (Engine Distress) (Optional) 20 2920015 1 Light (Chassis Out of Level) 21 4360200 1 Switch, Toggle (Auxiliary Power) 21 3790012 1 O-Ring 21 4060229 1 Guard, Switch 22 4360199 1 Switch, Toggle (Lights) (Optional) 22 3790012 1 O-Ring 23 3520028 1 Plug, Hole 24 4360202 1 Switch, Toggle (Rotate) 24 4060229 1 Shield 24 3790012 1 O-Ring 25 4360202 1 Switch, Toggle (Level) 25 4060229 1 Shield 25 3790012 1 O-Ring
REV
ITEM PART NUMBER QTY DESCRIPTION
26 4360202 1 Switch, Toggle (Steer) 26 4060229 1 Shield 26 3790012 1 O-Ring 27 4360202 1 Switch, Toggle (Main Tele) 27 4060229 1 Shield 27 3790012 1 O-Ring 28 4360199 1 Switch, Toggle (High Engine) 28 3790012 1 O-Ring 29 4360199 1 Switch, Toggle (Pump Volume) 29 3790012 1 O-Ring 30 4360199 1 Switch, Toggle (Wheel Motor Speed) 30 3790012 1 O-Ring 31 4360209 1 Breaker, Circuit - 20 Amp 31 3910608 1 Screw #6-32NC x 1/2in 31 4750600 1 Flatwasher #6 31 4760600 1 Lockwasher #6 31 3310601 1 Nut #6-32NC 32 3640500 1 Rail, Mounting 32 3910608 2 Screw, Round Head #6-32NC x 1/2in 32 4750600 2 Flatwasher #6 32 4760600 2 Lockwasher #6 32 3310601 2 Nut #6-32NC 33 4460299 2 Stop, Terminal Strip 34 4460300 1 Barrier, Terminal End 35 4460298 45 Block, Terminal 36 4460301 1 Strip, Marking 37 4460311 1 Bar, Buss 37 4460305 3 Screw, Terminal Block 37 4460306 3 Washer, Terminal Block 37 4460307 3 Sleeve, Terminal Block 38 3740058 1 Relay - SPDT 38 4120013 1 Socket, Relay 38 3740063 1 Spring, Retaining 39 4460244 2 Connector 39 0960238 2 Bushing 39 3300048 2 Nut, Conduit 40 4460071 1 Connector 40 0960238 1 Bushing 40 3300048 1 Nut, Conduit 41 3740049 AR Relay 41 4761000 1 Lockwasher #10 41 3311001 1 Nut #10-24NC 41 1060309 8 ft/2.4m Cable, Control - 12/4 (To Footswitch) (Not Shown)
