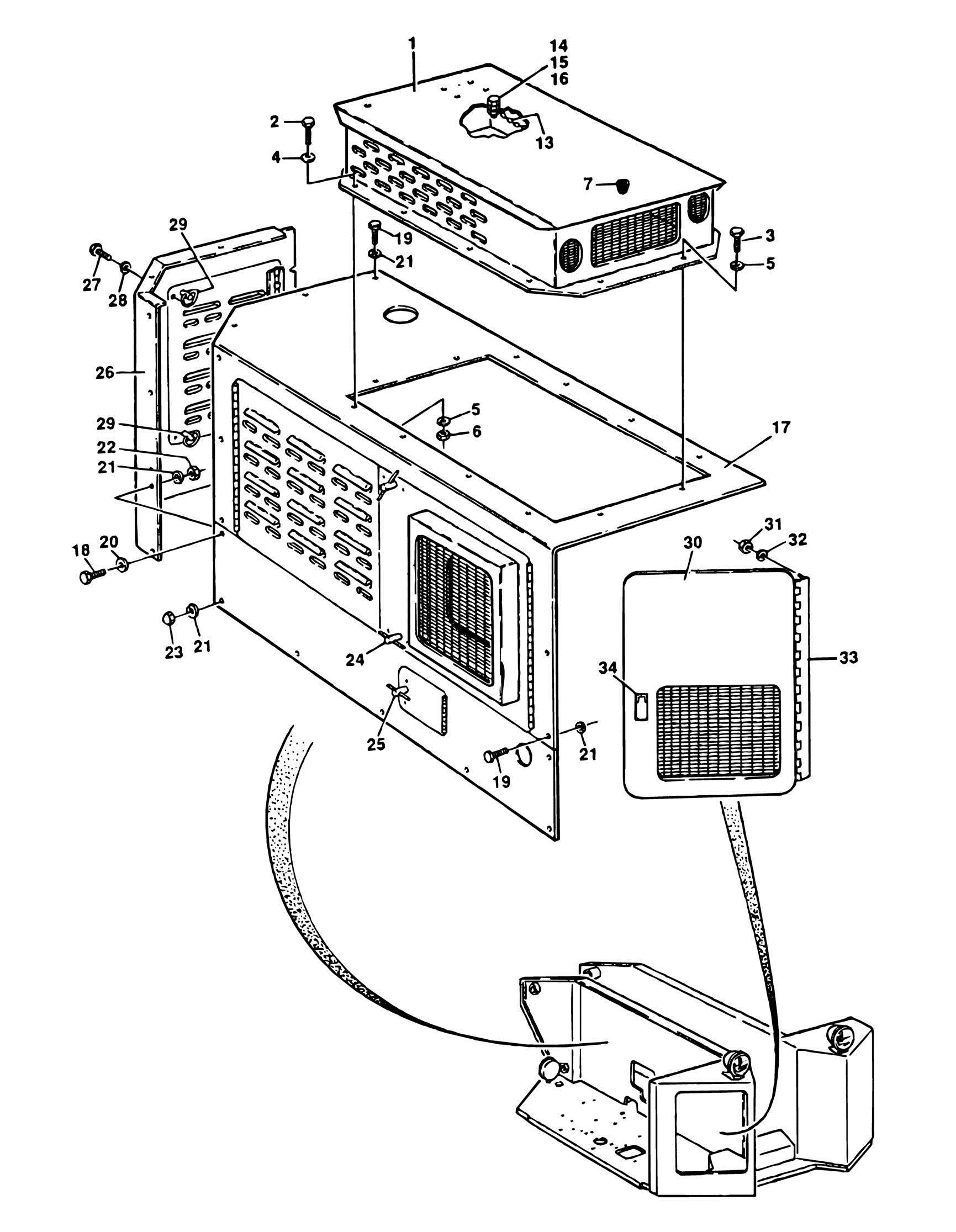

FIGURE 2-21. HOODS INSTALLATIONS (PRIOR TO OCTOBER 1991

FIGURE 2-21. HOODS INSTALLATIONS (PRIOR TO OCTOBER 1991)

FIGURE 2-21. HOODS INSTALLATIONS (PRIOR TO OCTOBER 1991)

ITEM PART NUMBER QTY

DESCRIPTION

Ref HOODS INSTALLATIONS 0250857 Ref HOODS INSTALLATION - DEUTZ (STANDARD BANG-BANG

AND PROPORTIONAL CONTROLS)

1 4843567 1 Ventilator 2 0641406 6 Bolt 1/4in-20NC x 3/4in 3 3941406 6 Screw, Self-Tapping 1/4in x 3/4in 4 4751400 12 Flatwasher 1/4in 5 4761400 12 Lockwasher 1/4in 6 3311405 6 Locknut 1/4in-20NC 7 2940051 1 Latch 13 1260017 15 in/38cm Chain 14 0641406 2 Bolt 1/4in-20NC x 3/4in 15 3311401 2 Nut 1/4in-20NC 16 3311405 2 Locknut 1/4in-20NC 17 4843517 1 Hood Ref Note: Replacement Decals Must be Ordered Separately - See

DECALS SECTION for Breakdown.

18 0641406 11 Bolt 1/4in-20NC x 3/4in 19 3941406 5 Screw, Self-Tapping 1/4in x 3/4in 20 4751400 19 Flatwasher 1/4in 21 4761400 16 Lockwasher 1/4in 22 3311405 11 Locknut 1/4in-20NC 23 3300151 5 Nut, Acorn 23 4300031 5 Stud (Welded on Part) 24 2940048 2 Latch (Main Doors) 24 3820019 4 Rivet 25 2940050 1 Latch (Access Door) 25 3820012 2 Rivet 26 4843396 1 Cover, Front 27 3941406 3 Screw, Self-Tapping 1/4in x 3/4in 28 4761400 3 Lockwasher 1/4in 29 2940048 2 Latch 29 3820019 4 Rivet 30 4843621 1 Door, Ground Control 31 3311405 8 Locknut 1/4in-20NC 32 4751400 8 Flatwasher 1/4in 32 4300031 4 Stud (Welded on Part) 33 2600170 1 Hinge 33 1260017 6 in/15cm Chain (Not Shown) 33 4300031 2 Stud (Welded on Part) 33 3300151 2 Nut, Acorn 1/4in-20NC 34 2940042 1 Latch (Includes Mounting Hardware)

REV

D
