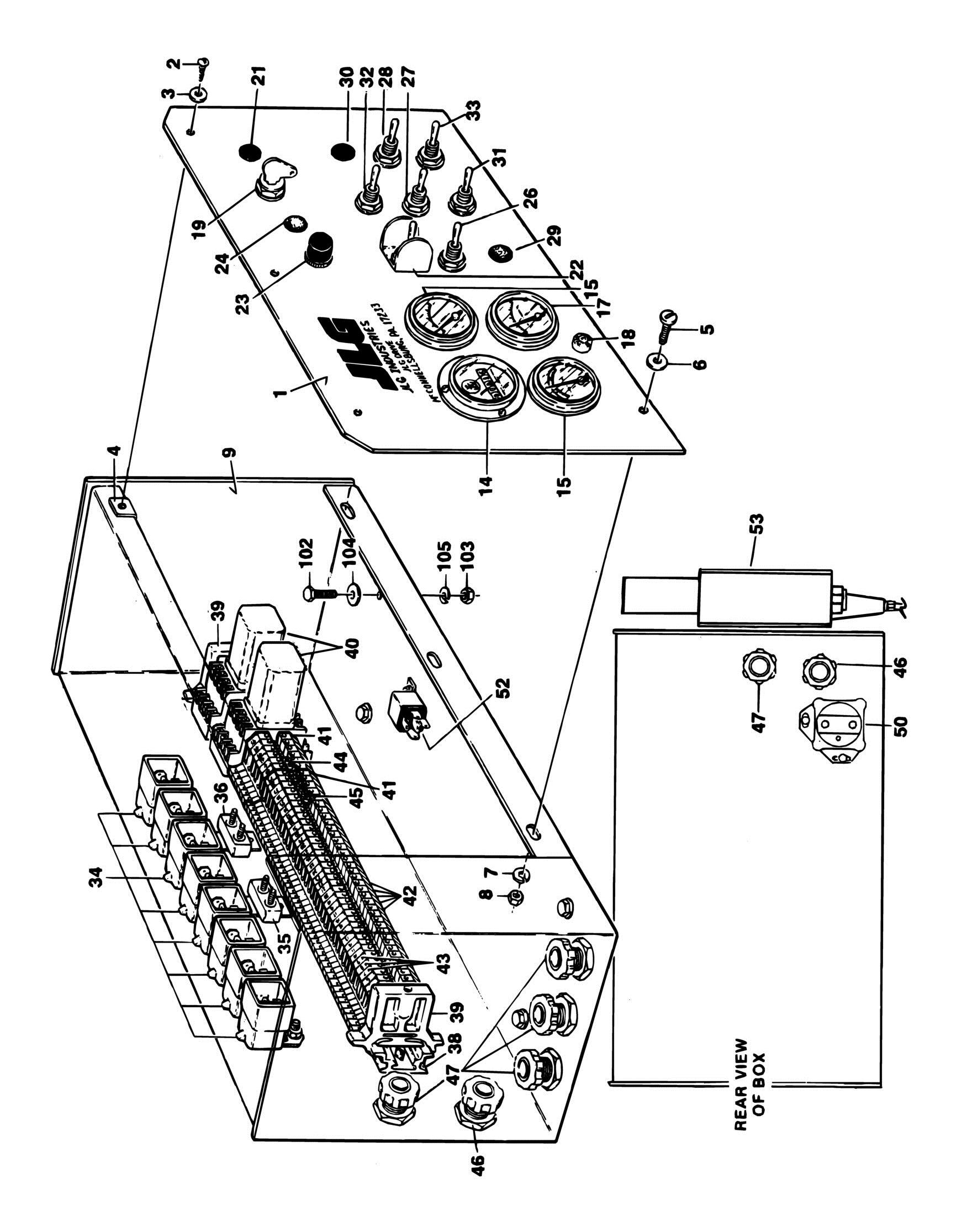

FIGURE 2-19. GROUND CONTROL BOX INSTALLATIONS

FIGURE 2-19. GROUND CONTROL BOX INSTALLATIONS

FIGURE 2-19. GROUND CONTROL BOX INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

Ref GROUND CONTROL BOX ASSEMBLIES 0860688 Ref DEUTZ WITH STANDARD BANG-BANG CONTROLS 0860721 Ref DEUTZ WITH PROPORTIONAL CONTROLS 1 3252044 1 Lid (Prior to May 1994) 1 3252383 1 Lid (May 1994 to Present) 1 4420037 38 in Strip, Rubber (Not Shown) 2 0750806 2 Screw, Self-Tapping #8 x 3/4in 3 4740120 2 Washer, Fiber 4 3300177 2 Nut, Tinnerman 5 3911412 3 Screw, Round Head 1/4in-20NC x 3/4in 6 4751400 3 Flatwasher 1/4in 7 4761400 3 Lockwasher 1/4in 8 3311401 3 Nut 1/4in-20NC 9 0860576 1 Box 14 2420009 1 Hourmeter 15 2420091 1 Voltmeter 16 2420111 1 Gage, Oil Pressure 17 2420125 1 Gage, Water Temperature 18 4360212 1 Breaker, Circuit 19 4360284 1 Switch, Key 19 7010698 1 Key 19 4360267 1 Block, Contact - N.O. 19 4360281 3 Block, Contact 21 3520028 1 Plug, Hole 22 4360199 1 Switch, Toggle (Ignition) 22 4360141 1 Guard, Switch (Not Shown) 22 3790012 1 O-Ring 23 4360274 1 Switch, Push Button (Start) 23 3790015 1 O-Ring 24 3520028 AR Plug, Hole 26 4360202 1 Switch, Toggle (Tower Lift) 26 3790012 1 O-Ring 27 4360202 1 Switch, Toggle (Main Lift) 27 3790012 1 O-Ring 28 4360202 1 Switch, Toggle (Swing) 28 3790012 1 O-Ring 29 3520058 1 Plug, Hole 30 3520028 1 Plug, Hole 31 4360202 1 Switch, Toggle (Main Tele.) 31 3790012 1 O-Ring 32 4360202 1 Switch, Toggle (Platform Rotate) (Standard and Proportional Controls) 32 3790012 1 O-Ring 33 4360200 1 Switch, Toggle (Auxiliary Power) 33 3790012 1 O-Ring 34 3740049 AR Relay - SPDT 34 3311001 AR Nut #10-24NC 34 4761000 AR Lockwasher #10 34 4751000 AR Flatwasher #10 35 4360216 1 Switch, Circuit Breaker - 30 Amp

REV

8 6

ITEM PART NUMBER QTY DESCRIPTION REV

36 4360232 1 Switch, Circuit Breaker - 15 Amp 38 3640711 1 16 ⅝in Rail 38 3910606 2 Screw #6-32NC x 3/8in 38 4750600 2 Flatwasher #6 38 4760600 2 Lockwasher #6 38 3310601 2 Nut #6-32NC 39 4460299 2 Stop, Terminal 40 3740058 AR Relay - 4PDT 40 4120013 AR Base, Relay 40 3740063 AR Spring 41 4460300 2 Barrier, Terminal 42 4460298 45 Block, Terminal 43 4460301 1 Marker, Terminal 44 4460308 AR Bar, Buss - 2 Position 44 4460305 AR Screw 44 4460306 AR Washer 44 4460307 AR Sleeve 45 4460311 1 Bar, Buss - 5 Position 45 4460305 5 Screw 45 4460306 5 Washer 45 4460307 5 Sleeve 46 4460244 1 Connector, Strain Relief 46 0960238 1 Bushing 46 3300048 1 Nut, Conduit 47 4460051 3 Connector, Strain Relief 47 0960238 3 Bushing 47 3300048 3 Nut, Conduit 50 3740067 1 Relay (Auxiliary Power) 50 3311001 3 Nut #10-24NC 50 4761000 3 Lockwasher #10 50 4751000 3 Flatwasher #10 52 3740077 1 Relay, Bosch 52 3311001 2 Nut #10-24NC 52 4761000 2 Lockwasher #10 52 4751000 2 Flatwasher #10 53 0060023 1 Actuator, Adeco Throttle 53 7008804 1 Bellows 53 7008829 1 PC Board 53 7008821 1 Motor 53 7008828 1 Cable 54 3520168 3 Plug, Hole 3/16in (Not Shown - Located on side of Ground Control Box) (SN 33920 to Present) Ref GROUND CONTROL BOX ASSEMBLIES 0251289 Ref DEUTZ WITH STANDARD BANG-BANG CONTROLS B 0251803 Ref DEUTZ WITH PROPORTIONAL CONTROLS B 102 0641408 4 Bolt 1/4in-20NC x 1in 103 3311401 4 Nut 1/4in-20NC 104 4751400 8 Flatwasher 1/4in 105 4761400 4 Lockwasher 1/4in
