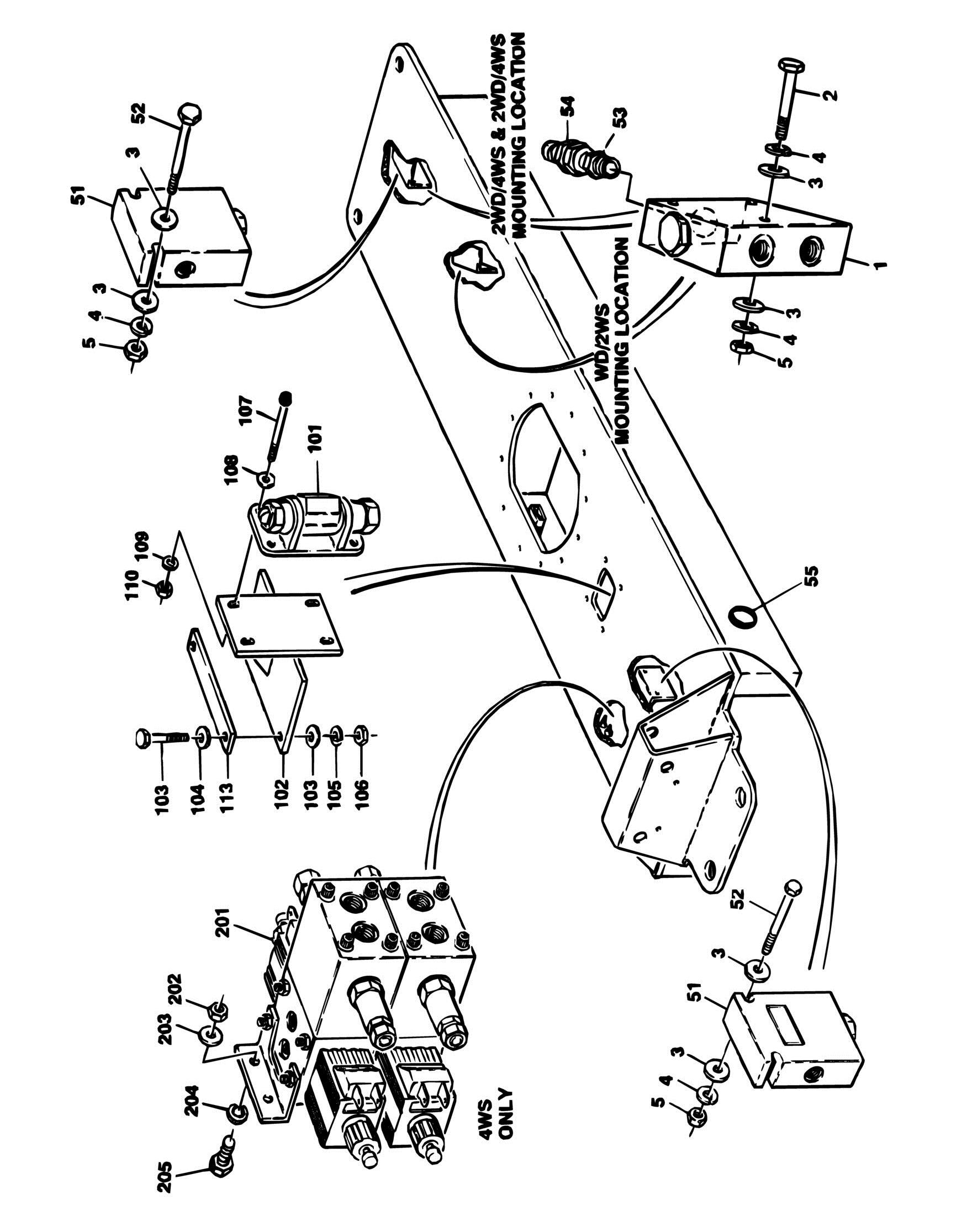

FIGURE 1-11. VALVES INSTALLATION - FRAME-MOUNTED

FIGURE 1-11. VALVES INSTALLATION - FRAME-MOUNTED

FIGURE 1-11. VALVES INSTALLATION - FRAME-MOUNTED

ITEM PART NUMBER QTY

DESCRIPTION

Ref DRIVE VALVES INSTALLATION (STANDARD PARTS) 1 4640629 1 Positive Traction Valve Assembly 1 2900745 1 Seal Kit - 4640629 Valve 2 0641528 2 Bolt 5/16in-18NC x 3 1/2in 3 4751500 AR Flatwasher 5/16in 4 4761500 AR Lockwasher 5/16in 5 3311501 AR Nut 5/16in-18NC 0250144 Ref DRIVE VALVES INSTALLATION - 2WD/2WS (VARIABLE

PARTS)

51 to 56 Not Required 0 Not Required 0250109 Ref DRIVE VALVES INSTALLATION - 4WD/2WS (VARIABLE

PARTS)

51 4640260 2 Flow Divider Valve Assembly 51 Not Available 1 Cartridge (Vickers/Modular Controls) 51 7009739 1 Seal Kit (Vickers/Modular Controls) 51 7007321 1 Cartridge (Fluid Controls) 51 7003723 1 Seal Kit (Fluid Controls) 52 0641522 4 Bolt 5/16in-18NC x 2 3/4in 53 to 56 Not Required 0 Not Required 0251668 Ref DRIVE VALVES INSTALLATION - 2WD/4WS (VARIABLE

PARTS)

51 to 54 Not Required 0 Not Required 55 4060806 6 ft/1.8m Flex-Guard 56 Not Required 0 Not Required 0251669 Ref DRIVE VALVES INSTALLATION - 4WD/4WS (VARIABLE

PARTS)

51 4640260 2 Flow Divider Valve Assembly 51 Not Available 1 Cartridge (Vickers/Modular Controls) 51 7009739 1 Seal Kit (Vickers/Modular Controls) 51 7007321 1 Cartridge (Fluid Controls) 51 7007323 1 Seal Kit (Fluid Controls) 52 0641522 2 Bolt 5/16in-18NC x 2 3/4in 53 2220844 1 Fitting 54 2220376 1 Fitting 55 4060806 3 ft/.9m Flex-Guard 56 4060808 6 ft/1.8m Flex-Guard (Not Shown) 0251310 Ref OSCILLATION LOCKOUT VALVE INSTALLATION - (USED ON

OPTIONAL OSCILLATING AXLE) (JUNE 1992 TO PRESENT)

101 4640668 1 Valve Assembly 101 7012516 1 Repair Kit - 4640668 Valve 102 4643742 1 Mounting Weldment 103 0641620 2 Bolt 3/8in-16NC x 2 1/2in 104 4751600 4 Flatwasher 3/8in 105 4761600 2 Lockwasher 3/8in 106 3311601 2 Nut 3/8in-16NC 107 3931016 4 Bolt, Socket Head #10-24NC x 1in 108 4751000 8 Flatwasher #10 109 4761000 4 Lockwasher #10 110 3311001 4 Nut #10-24NC 113 3534778 1 Plate, Spacer 1281347 Ref CONTROL VALVES INSTALLATION - 4WD

REV

B

C

B

B

D

ITEM PART NUMBER QTY DESCRIPTION

REV

0251716 Ref MACHINES WITH BANG-BANG VALVES WITHOUT ROTATE B 0253774 Ref MACHINES WITH BANG-BANG VALVES WITHOUT ROTATE D 0251717 Ref MACHINES WITH BANG-BANG VALVES WITH ROTATE B 0253773 Ref MACHINES WITH BANG-BANG VALVES WITH ROTATE D 0252099 Ref MACHINES WITH PARKER PROPORTIONAL VALVES

WITHOUT ROTATE

C 0252098 Ref MACHINES WITH PARKER PROPORTIONAL VALVES WITH

ROTATE

C 201 4640693 1 Valve Assembly - 4WS Valve (See VALVE ASSEMBLY (USED WITH OPTIONAL 4WS) for Breakdown) 202 3311401 4 Nut 1/4in-20NC 203 4761400 4 Lockwasher 1/4in 204 4751400 4 Flatwasher 1/4in 205 0641407 4 Bolt 1/4in-20NC x 7/8in
