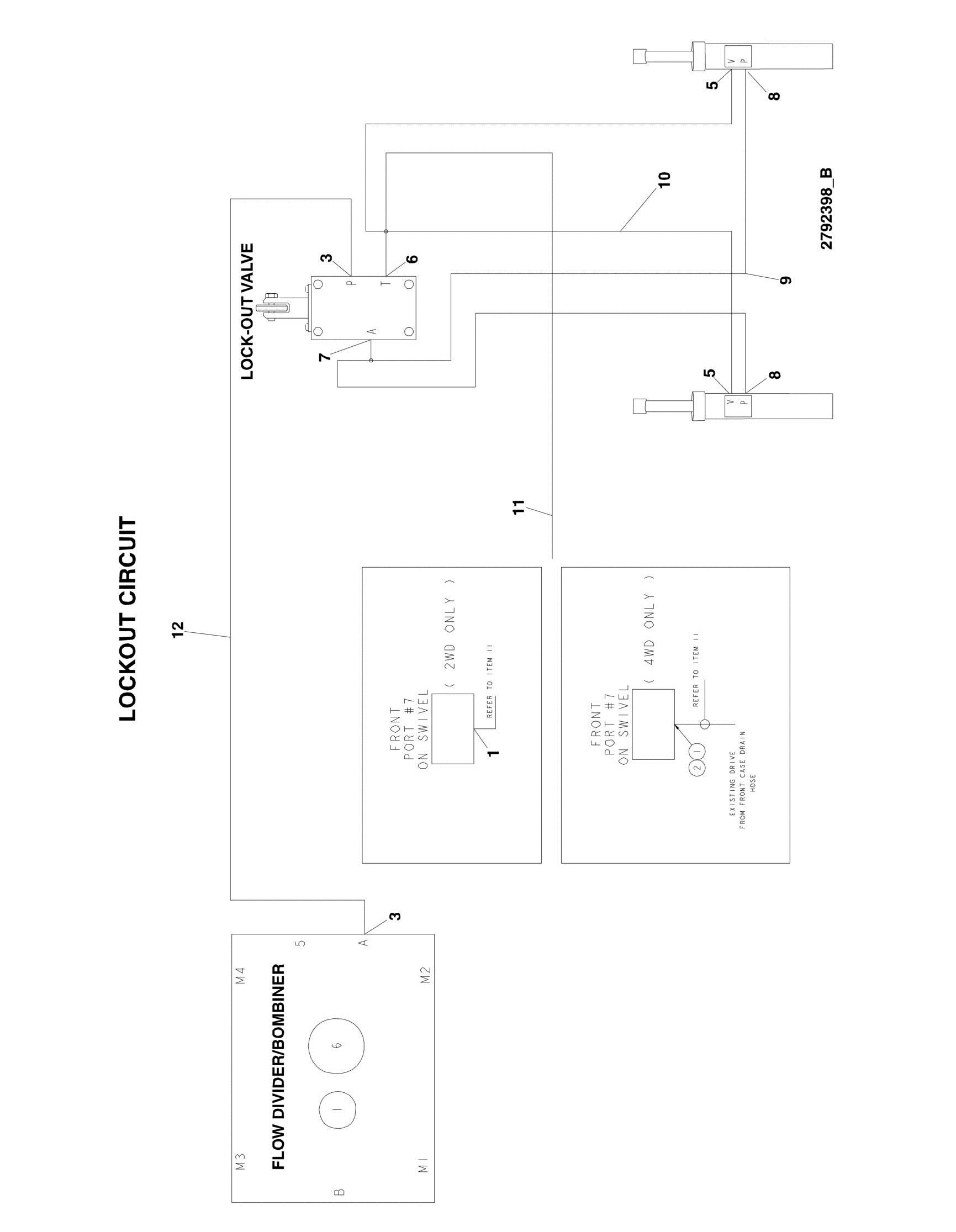

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

2792398 Ref AXLE LOCKOUT HYDRAULIC DIAGRAM 1 2220375 1 Fitting, Straight 2 2220385 1 Fitting, Tee 3 2220415 2 Fitting, Straight 5 2220501 2 Fitting, Elbow 6 2221043 1 Fitting, Tee 7 2220711 1 Fitting, Tee 8 2221040 2 Fitting, Elbow 9 2753035 2 Hose 10 2752632 2 Hose 11 2753342 1 Hose 12 2753339 1 Hose

REV

2-B
