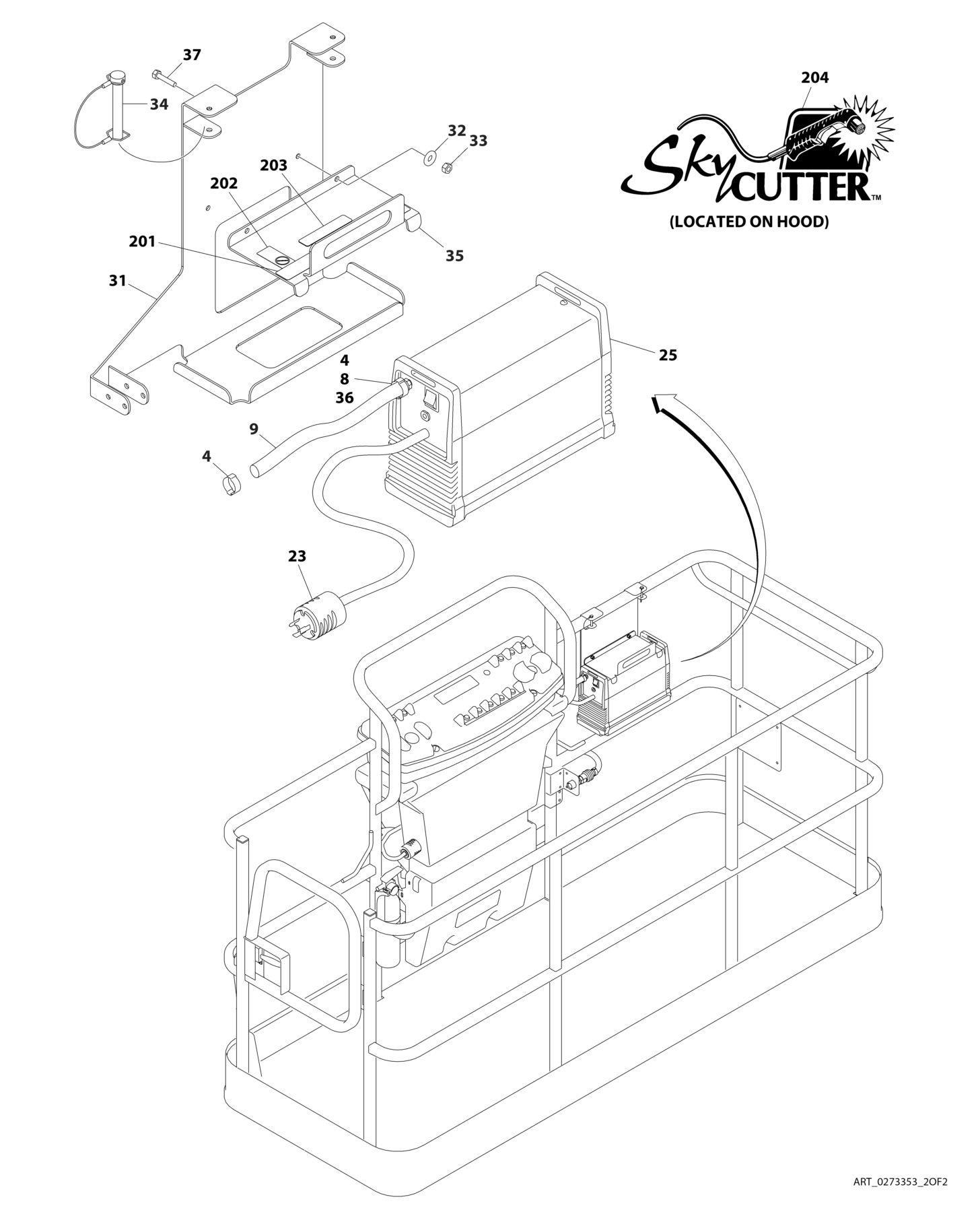

FIGURE 4-18. SKYWELDER/SKYCUTTER COMBO INSTALLATION (60HZ
ITEM PART NUMBER QTY DESCRIPTION
REV
0273353 Ref SKYWELDER/SKYCUTTER COMBO INSTALLATION (60HZ) G Ref Note: When replacing platform on machines with SkyCutter
option, new bracket p/n 1001145405 must be purchased to accommodate SkyCutter components.
1 0100011 AR Compound, Locking 2 0630518 2 Screw #10 x 3/4 3 0641606 4 Bolt 3/8 x 3/4 4 1320177 2 Clamp 5 1320302 2 Clamp 6 1671093 1 Cover, Plug 7 2030010 1 Extinguisher, Fire 8 2180832 1 Fitting, Barbed/NPT 9 2720160 4.5 ft/ 1.4m Hose 10 2902217 1 Weld Leads Kit 11 3300151 4 Nut 1/4 12 3311005 2 Nut #10 13 3311605 4 Nut 3/8 14 3573400 1 Bracket 15 3577121 2 Angle 16 3573642 1 Plate 20 4240099 AR Tie-Strap (Not Shown) 21 4420037 2.4 ft/ 0.7m Tape 22 4460962 1 Plug, Twist Lock 23 4460971 1 Plug, Twist Lock 24 Ref Welder Assembly Options (See WELDER ASSEMBLY for Breakdown): 24 4530022 1 Miller Model CST250 (Prior to SN 0300083533) 24 4530028 1 Miller Model CST280 (SN 0300083533 through 0300096000) 25 1001098012 1 Plasma Cutter Assembly (See PLASMA CUTTER ASSEMBLY for Breakdown) 26 4751400 4 Washer 1/4 27 4751600 8 Washer 3/8 29 4846627 1 Support 31 1001145405 1 Bracket 32 4811700 2 Washer M6 33 3290605 2 Nut M6 34 3421453 3 Pin 35 3576799 1 Plate, Hold-Down 36 0100020 AR Sealant 37 4010608 2 Screw M6 x 16 38 4751000 2 Washer #10 0272448 Ref SKYWELDER DECAL INSTALLATION A
101 1705355 2 Decal - SkyWelder 102 1702868 1 Decal - No Hands 103 1705305 1 Decal - Weld Leads 104 1705375 1 Decal - 240V - 3 Phase - 60Hz 105 1705466 1 Decal - Weight 0272599 Ref SKYCUTTER DECAL INSTALLATION A
ITEM PART NUMBER QTY
202 1705305 1 Decal - Weld Leads 203 1705466 1 Decal - Weight 204 1705490 2 Decal - SkyCutter
