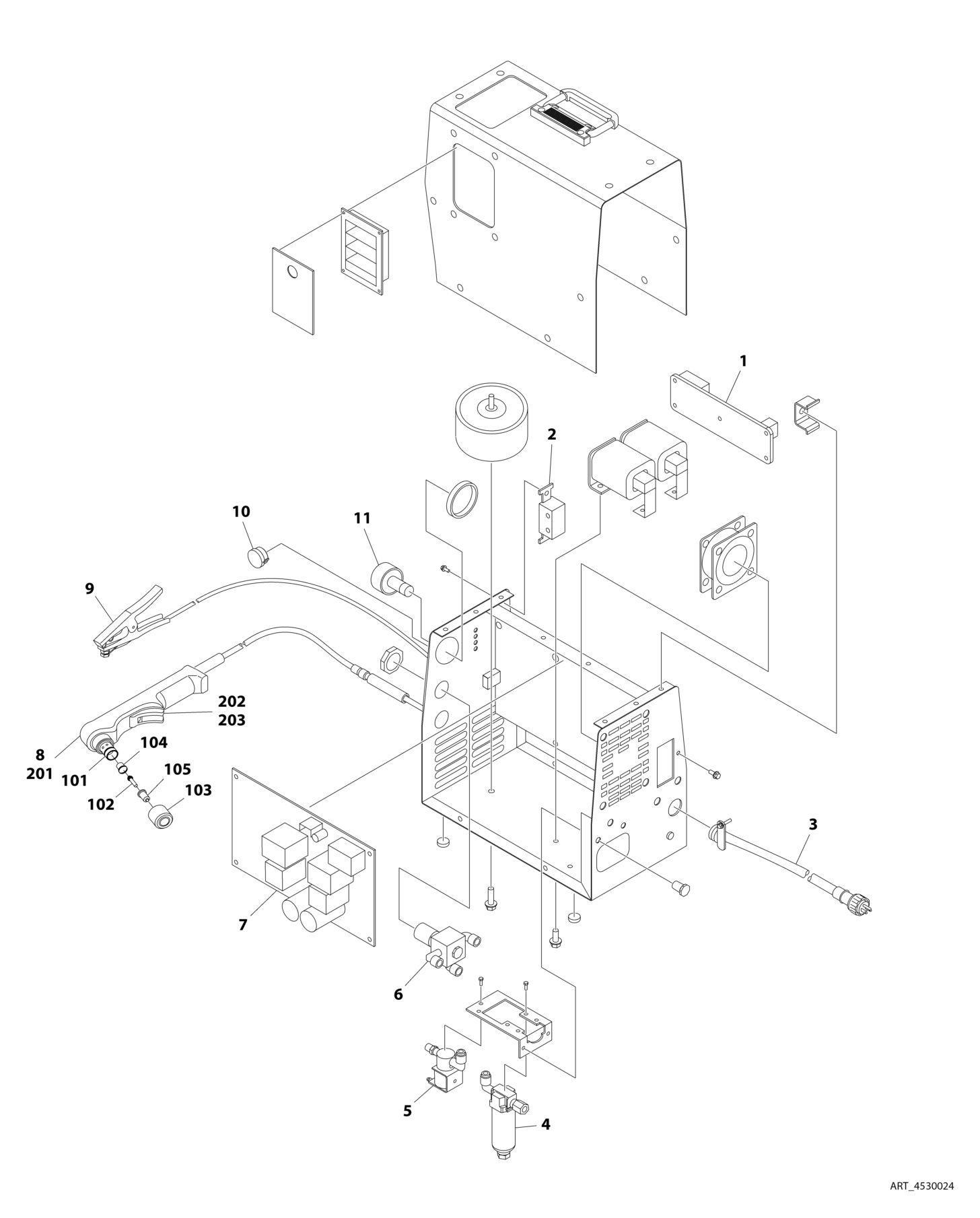

FIGURE 4-17. PLASMA CUTTER ASSEMBLY

FIGURE 4-17. PLASMA CUTTER ASSEMBLY

FIGURE 4-17. PLASMA CUTTER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

Ref PLASMA CUTTER ASSEMBLY 4530024 Ref Plasma Cutter Assembly - 60Hz Power Supply 4530025 Ref Plasma Cutter Assembly - 50Hz Power Supply Ref Note: For other components see your Miller Dealer. 1 7024519 1 Circuit Card - 60Hz Power Supply 1 7024538 1 Circuit Card - 50Hz Power Supply 2 7024520 1 Switch 3 7024521 10 ft/3m Cable, Power - 60Hz Power Supply 3 7024539 10 ft/3m Cable, Power - 50Hz Power Supply 4 7024522 1 Filter, Air 5 7024523 1 Valve, Air - 60Hz Power Supply 5 7024540 1 Valve, Air - 50Hz Power Supply 6 7024524 1 Regulator, Air 7 7024525 1 Circuit Card - 60Hz Power Supply 7 7024541 1 Circuit Card - 50Hz Power Supply 8 7024526 1 Torch Assembly (See Items 101-203 for Breakdown) 9 7024527 1 Clamp 10 7024528 1 Knob 11 7024529 1 Gauge, Air 7024526 Ref TORCH ASSEMBLY 101 7024530 1 O-Ring 102 7024531 1 Electrode 103 7024532 1 Cup, Retaining 104 7024533 1 Swirl Ring 105 7024534 1 Tip 201 7024535 1 Handle, Torch 202 7024536 1 Switch 203 7024537 1 Trigger

REV

D D
