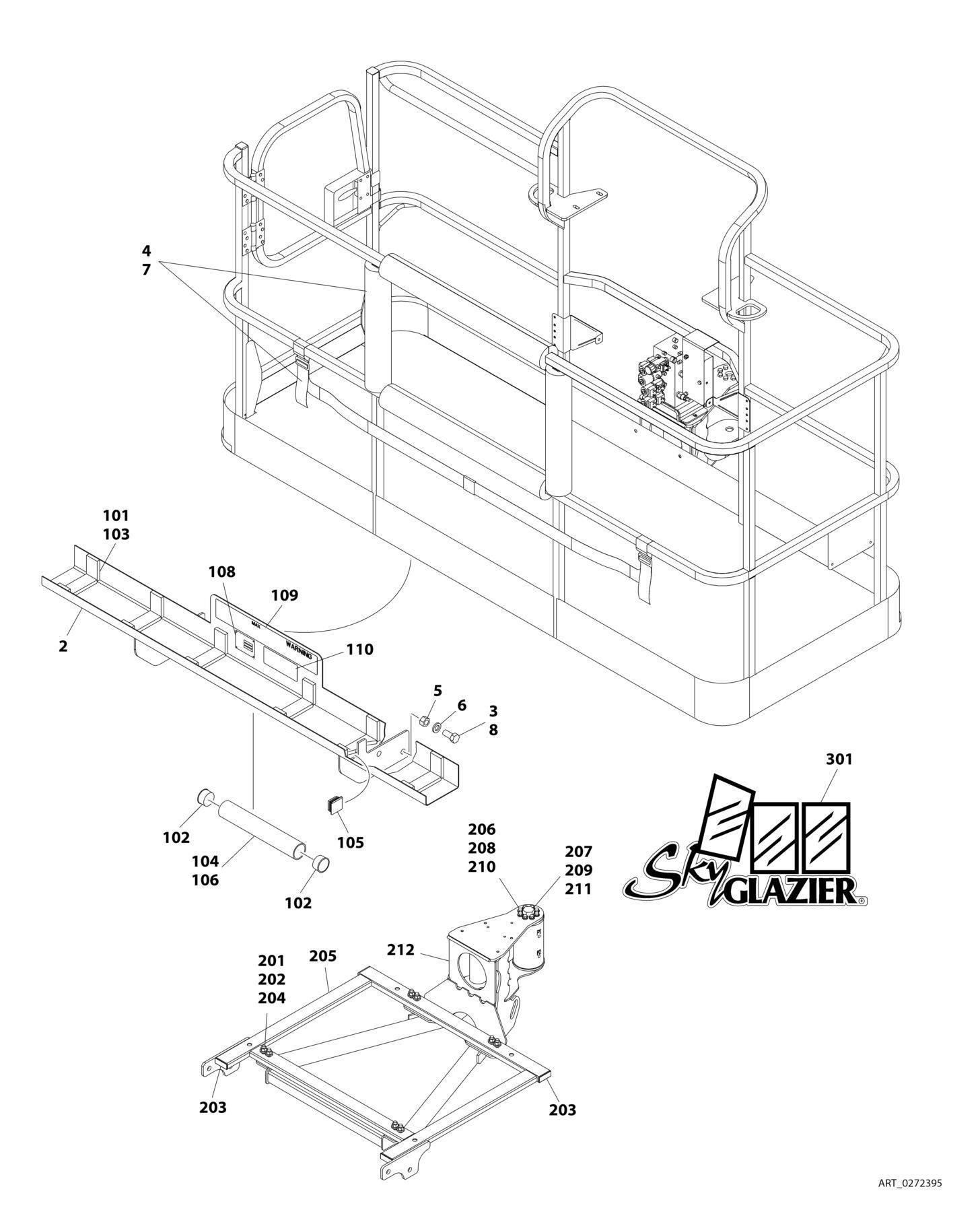

FIGURE 4-15. SKYGLAZIER INSTALLATION

FIGURE 4-15. SKYGLAZIER INSTALLATION

FIGURE 4-15. SKYGLAZIER INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION

REV

0272395 Ref SKYGLAZIER INSTALLATION (ANSI SPECS) 3/H 0272387 Ref SKYGLAZIER INSTALLATION (LATIN AMERICAN SPECS) 3/D 0272955 Ref SKYGLAZIER INSTALLATION (BRAZILIAN SPECS) 3/D Ref Note: Only Available on 400S for ANSI, Latin American and

Brazilian Specs.

2 0272391 1 Tray Assembly (ANSI Specs) (See Items 101-110 for Breakdown) 2 0272948 1 Tray Assembly (Latin American Specs) (See Items 101-110 for Breakdown) 2 0272951 1 Tray Assembly (Brazilian Specs) (See Items 101-110 for Breakdown) 3 0642214 4 Bolt 3/4 x 1-3/4 4 2902212 1 Bumpers and Strap Kit 4 0940102 1 Bumper Only 4 4240149 1 Strap Only 5 3312201 4 Nut 3/4 6 4892200 4 Washer 3/4 7 4420014 AR Tape 8 0100011 AR Compound, Locking Ref TRAY ASSEMBLIES 0272391 Ref Tray Assembly (ANSI Specs) 3/H 0272948 Ref Tray Assembly (Latin American Specs) 4/J 0272951 Ref Tray Assembly (Latin American Specs) E 101 0100081 AR Adhesive 102 1120555 2 Cap, Tube 103 3340956 1 Pad Kit 104 3460334 1 Tube 105 3520071 2 Plug 106 4420066 AR Tape, Double Sided 108 See Note NSS Nameplate - Serial Number (Note: Not Available for Purchase) 109 1705312 2 Decal - Glazier Capacity (ANSI Specs) 109 1001126747 2 Decal - Glazier Capacity (Latin American Specs) 109 1001163297 2 Decal - Glazier Capacity (Brazilian Specs) 110 1701509 1 Decal - Manual 0272390 Ref PLATFORM AND GLAZIER SUPPORT INSTALLATION G 201 0641822 8 Bolt 1/2 x 2-3/4 202 3311805 8 Nut 1/2 203 3520190 4 Plug 204 4891800 16 Washer 1/2 205 4846651 1 Base, Glazier 206 0100011 AR Compound, Locking 207 0642684 1 Bolt 1 x 10-1/2 208 0681610 8 Bolt 3/8 x 1-1/4 Grade 8 209 3272605 1 Nut 1 210 4891600 8 Washer 3/8 211 4892600 1 Washer 1 212 4846573 1 Support, Platform 0272418 Ref SKYGLAZIER DECAL INSTALLATION 4 301 1705358 2 Decal - SkyGlazier
