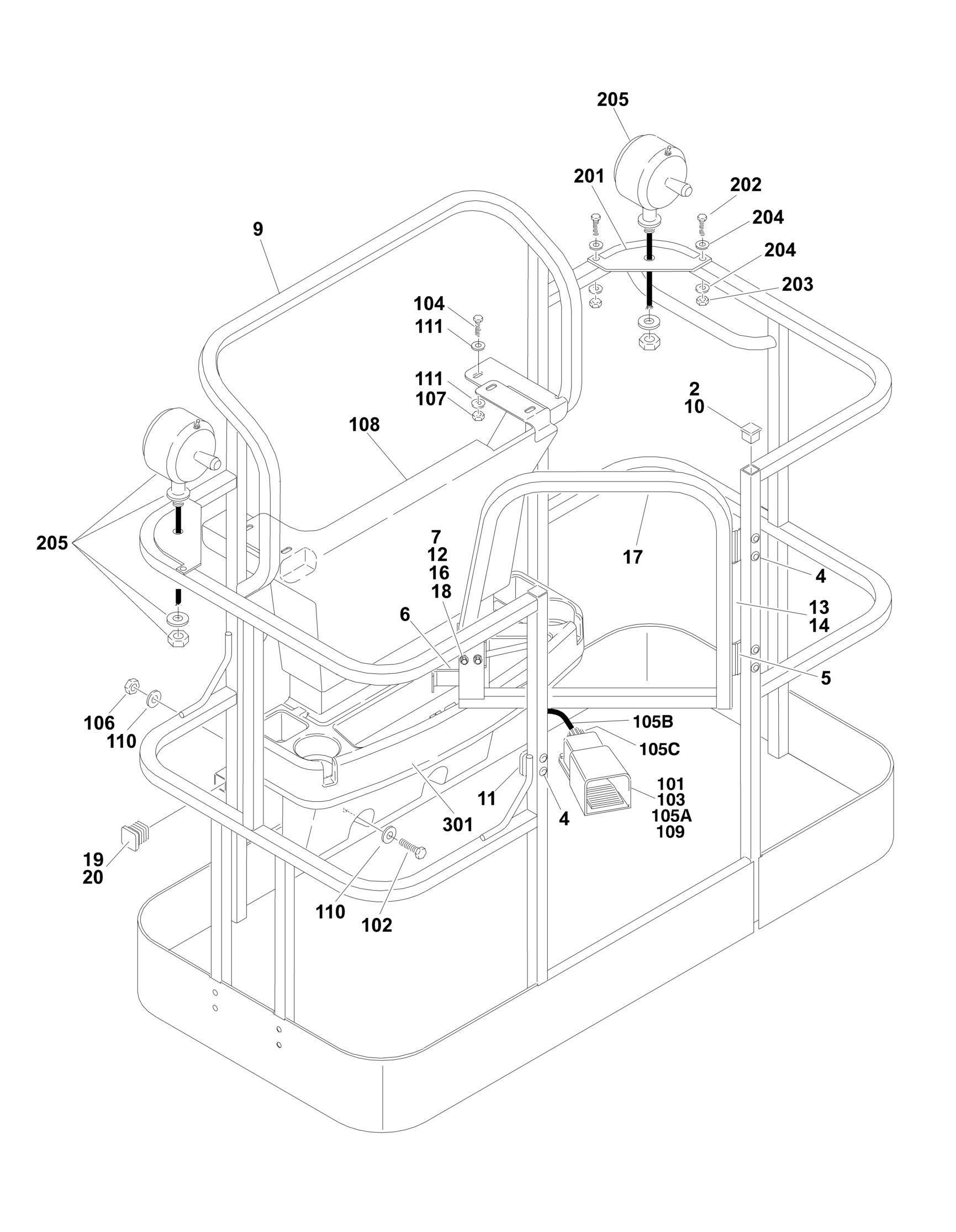

FIGURE 4-1. PLATFORM INSTALLATION (FRONT ENTRY PLATFORM
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM ASSEMBLIES: 3510694 Ref 4ft (1.22m) with Standard Gate/No Mesh 3510711 Ref 4ft (1.22m) with Standard Gate/Mesh to Top Rail 3510714 Ref 4ft (1.22m) with Self-Closing Gate/No Mesh 3510725 Ref 4ft (1.22m) with Self-Closing Gate/Mesh to Top Rail 3510788 Ref 4ft (1.22m) with Swing Gate/No Mesh 3510738 Ref 6ft (1.83m) with Standard Gate/No Mesh 3510744 Ref 6ft (1.83m) with Standard Gate/Mesh to Top Rail 3510742 Ref 6ft (1.83m) with Self-Closing Gate/No Mesh 3510754 Ref 6ft (1.83m) with Self-Closing Gate/Mesh to Top Rail 3510675 Ref 8ft (2.44m) with Standard Gate/No Mesh 3510747 Ref 8ft (2.44m) with Standard Gate/Mesh to Top Rail 3510749 Ref 8ft (2.44m) with Self-Closing Gate/No Mesh 3510753 Ref 8ft (2.44m) with Self-Closing Gate/Mesh to Top Rail 3510772 Ref 8ft (2.44m) with Swing Gate/No Mesh Ref Note: Replacement Decals Must be purchased separately -
See DECAL SECTION.
2 0100040 AR Sealant, RTV Silicone 4 2080040 13 Fastener, Huck 5 Ref Hinge Options: 5 2600216 2 Standard Gate 5 2600219 2 Self-Closing Gate (Prior to SN 0300068521) 5 2600287 2 Self-Closing Gate (SN 0300068521 through 0300096000) 6 2940074 1 Latch 7 3311005 4 Locknut #10-24NC 9 See Note 1 Platform Weldment (Note: Not Available - Purchase Platform Assembly) 10 3520072 3 Cap-Plug 11 3539685 1 Plate, Latch 12 3911008 4 Screw #10-24NC x 1in 13 4060803 6 in/15cm Trim 14 4220165 1 Stop, Gate 16 4751000 AR Flatwasher #10 Regular 17 Ref Gate Weldment Options: 17 4845327 1 No Mesh/Standard Gate 17 4845824 1 Mesh to Top Rail/Standard Gate 17 4845426 1 No Mesh/Self-Closing Gate 17 4845951 1 Mesh to Top Rail/Self-Closing Gate 18 4761000 4 Lockwasher #10 19 0100010 AR Adhesive 20 3520172 2 Plug Ref FOOTSWITCH AND COVERS INSTALLATIONS 0272035 Ref Cast Box Installation 0272036 Ref Plastic Box Installation 101 0100020 AR Sealant, Pipe 102 0641406 4 Bolt 1/4in-20NC x 3/4in 103 0641408 3 Bolt 1/4in-20NC x 1in 104 0641610 4 Bolt 3/8in-16NC x 1-1/4in 105 Ref Console Box Assembly (Not Shown - See PLATFORM CONSOLE ASSEMBLY WITHOUT ADE SYSTEM AND
REV
D B C C A C D E F C D E F A
A A
ITEM PART NUMBER QTY
DESCRIPTION
PLATFORM CONSOLE ASSEMBLY WITH ADE SYSTEM For Breakdown) 105A 4360031 1 Footswitch Options: 105A 7000625 2 Block, Contact for 4360031 Footswitch 105B 1060918 8 ft/2.4m Cable, Electrical - 18/3 105C 4460071 1 Connector, Strain Relief 106 3311405 4 Locknut 1/4in-20NC 107 3311605 4 Locknut 3/8in-16NC 108 3380434 1 Panel, Poly 109 4740362 7 Washer, Fender 110 4751400 5 Flatwasher 1/4in Regular 111 4751600 8 Flatwasher 3/8in Regular Ref WORKLIGHTS INSTALLATION (optional) 0258309 Ref Standard (Prior to SN 0300064404) 1-A
0270814 Ref ADE System (SN 0300064404 through 0300096000) 201 3536089 2 Plate, Mounting 202 0641414 4 Bolt 1/4in-20NC x 1-3/4in 203 3311405 4 Locknut 1/4in-20NC 204 4711400 8 Flatwasher 1/4in Thin 205 2920140 2 Worklight 206 4240099 10 Tie-Strap (Not Shown) 207 2820035 9 Loom, Vinyl (Not Shown) 209 4460598 1 Connector, Strain Relief (Not Shown - Located at Console Box) 210 4920018 18 in/46cm Wire, Black (Not Shown) Ref TRAY INSTALLATIONS (OPTIONAL) 301 1580012 1 Tray, Storage (Center) 302 1580013 1 Tray, Storage (Rail Mounted - Not Shown)
REV
3-E
