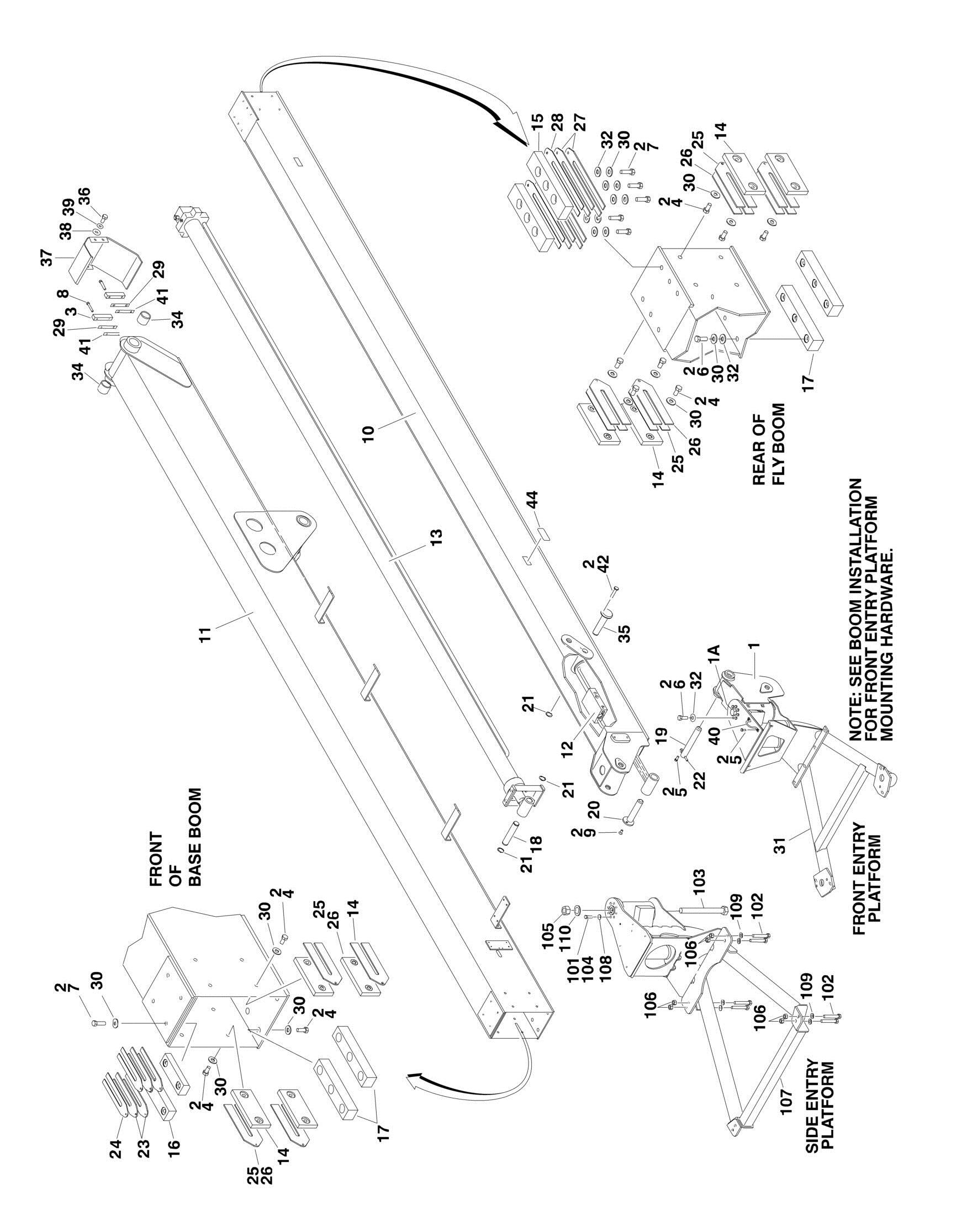

FIGURE 3-2. BOOM ASSEMBLY - 400S

FIGURE 3-2. BOOM ASSEMBLY - 400S

FIGURE 3-2. BOOM ASSEMBLY - 400S

ITEM PART NUMBER QTY

DESCRIPTION

Ref BOOM ASSEMBLlIES - 400S 0801223 Ref Front Entry Platform 0801359 Ref Side Entry Platform 1 Ref Rotator Assembly Options (See ROTATOR ASSEMBLIES for Breakdown): 1 0060047 NLA Rotator Assembly (Use p/n 0060059) (Prior to SN

0300052800)

1 0060059 1 Rotator Assembly (SN 0300052800 through 0300096000) 1A See Note AR Hardware Kit (Note: Use items 103, 105 & 110 as Service Replacement) 2 0100011 AR Compound, Locking 3 0561185 2 Block, Telescope Cylinder Attach 4 0641606 16 Bolt 3/8in-16NC x 3/4in 5 0641605 1 Bolt 3/8in-16NC x 5/8in 6 0641608 20 Bolt 3/8in-16NC x 1in 7 0641610 10 Bolt 3/8in-16NC x 1-1/4in 8 0641616 2 Bolt 3/8in-16NC x 2in 9 0741607 1 Screw, Flathead Socket 3/8in-16NC x 7/8in (Prior to SN

0300066372)

10 0801213 1 Boom, Fly 11 0801215 1 Boom, Base 12 1683778 NLA Level (Platform Slave) Cylinder Assembly (Use p/n 1001140586) (See CYLINDER SECTION for Breakdown) 13 Ref Telescope Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 13 1683897 NLA Telescope Cylinder Assembly (Use p/n 1684194) (Prior to SN

0300066372)

13 1684194 1 Telescope Cylinder Assembly (SN 0300066372 through

0300096000)

14 3340867 8 Pad, Wear (Fly Rear Sides and Base Front Sides) 15 3340868 2 Pad, Wear (Fly Rear Top) 16 3340869 2 Pad, Wear (Base Front Top) 17 3340870 4 Pad, Wear (Fly Rear Bottom and Base Front Bottom) 18 3422457 1 Pin, Telescope Cylinder 19 3422582 1 Pin, Pivot 20 3422865 1 Pin, Pivot 21 3760133 3 Ring, Retaining 22 3841143 1 Keeper, Pin 23 4070497 4 Shim 1/8in 24 4070498 2 Shim 1/16in 25 4070501 8 Shim 1/8in 26 4070502 2 Shim 1/16in 27 4070503 4 Shim 1/8in 28 4070504 2 Shim 1/16in 29 4070929 2 Shim 1/8in 30 4751600 26 Flatwasher 3/8in Regular 31 Ref Support Weldment Options: 31 4846137 1 Front Entry Platform 31 See Note 1 Side Entry Platform (Note: See Items 101-110 for Breakdown) 32 4711600 20 Flatwasher 3/8in Thin 33 0961951 2 Bushing

REV

N A

ITEM PART NUMBER QTY DESCRIPTION

34 0961950 2 Bushing 35 3422859 1 Pin 36 0641406 4 Bolt 1/4in-20NC x 3/4in 37 4060995 1 Shield, Rear 38 4751400 4 Flatwasher 1/4in Regular 39 4761400 4 Lockwasher 1/4in 40 3841340 1 Rod, Hose Loop (Front Entry Platform) 41 4071007 2 Shim, 20 Gauge 42 0741605 AR Screw, Flathead Socket 3/8in-16NC x 5/8in 44 1670836 6 Cover (SN 0300066372 through 0300096000) 0272070 Ref PLATFORM SUPPORT INSTALLATIONS (SIDE ENTRY

PLATFORM)

Ref Machines with SkyGlazier (Note: For Replacement Parts,

Contact JLG Customer Service and Request Manual p/n 3124242)

101 0100011 AR Compound, Locking 102 0641812 8 Bolt 1/2in-13NC x 1-1/2in 103 0642682 1 Bolt 1in-8NC x 10-1/4in 104 0681608 8 Bolt 3/8in-16NC x 1in 105 3272605 1 Locknut 1in-8NC 106 3311805 8 Locknut 1/2in-13NC 107 4846573 1 Support Weldment 108 4891600 8 Flatwasher 3/8in Hardened 109 4891800 8 Flatwasher 1/2in Hardened 110 4892600 1 Flatwasher 1in Hardened
