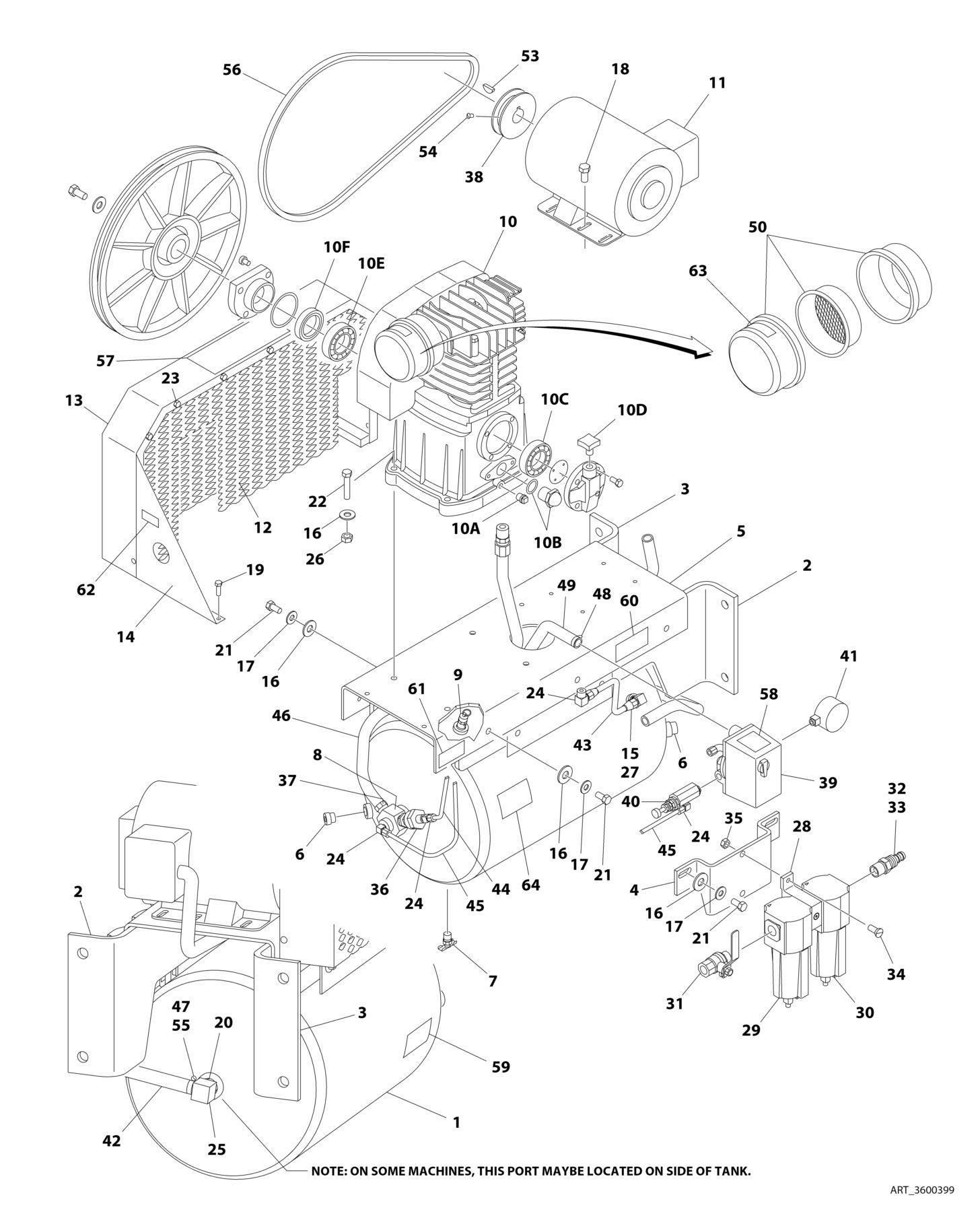

FIGURE 2-34. SKYAIR COMPRESSOR PARTS
FIGURE 2-34. SKYAIR COMPRESSOR PARTS
FIGURE 2-34. SKYAIR COMPRESSOR PARTS
ITEM PART NUMBER QTY
DESCRIPTION
3600399 Ref SKYAIR COMPRESSOR PARTS 1 7026632 1 Tank 2 See Note 1 Bracket, Mounting (Note: Not Available for Purchase) 3 See Note 1 Bracket, Mounting (Note: Not Available for Purchase) 4 See Note 1 Bracket, Regulator Mounting (Note: Not Available for Purchase) 5 See Note 1 Deck (Note: Not Available for Purchase) 6 See Note 2 Plug (Note: Not Available for Purchase) 7 7026633 1 Valve, Drain 8 7026634 1 Valve, Check 9 7026635 1 Valve, Safety 10 7026636 1 Pump, Assembly 10 7026659 1 Gasket and Seal Kit 10A 7026651 1 Plug, Oil Drain 10B 7026652 1 Gauge, Oil Sight 10C 7026653 1 Bearing 10D 7026654 1 Cap, Oil Fill 10E 7026655 1 Bearing 10F 7026656 1 Seal 11 7026637 1 Motor Assembly 11 See Note 1 Brush Kit (Note: Not Available for Purchase) 12 See Note 1 Screen, Inner (Note: Not Available for Purchase) 13 See Note 1 Guard, Belt (Note: Not Available for Purchase) 14 See Note 2 Support (Note: Not Available for Purchase) 15 See Note 1 Bushing (Note: Not Available for Purchase) 16 4751600 18 Washer 3/8 17 4761600 10 Washer 3/8 18 0641506 4 Bolt 5/16 x 3/4 19 0641406 8 Bolt 1/4 x 3/4 20 See Note 1 Bushing (Note: Not Available for Purchase) 21 0641610 10 Bolt 3/8 x 1-1/4 22 0641616 4 Bolt 3/8 x 2 23 See Note 10 Bolt 1/4 x 1/2 (Note: Not Available for Purchase) 24 See Note 4 Fitting (Note: Not Available for Purchase) 25 See Note 1 Fitting, Barbed (Note: Not Available for Purchase) 26 3311605 4 Nut 3/8 27 See Note 1 Fitting, Compression (Note: Not Available for Purchase) 28 See Note 1 Bracket, Mounting (Note: Not Available for Purchase) 29 7026660 1 Filter, Oil Removal 30 7026661 1 Filter, Water Removal 31 70001663 1 Valve, Ball Shut-Off 32 See Note 1 Bushing (Note: Not Available for Purchase) 33 See Note 1 Fitting, Barbed (Note: Not Available for Purchase) 34 See Note 2 Screw 1/4 x 1 (Note: Not Available for Purchase) 35 3311405 2 Nut 1/4 36 See Note 1 Unloader (Note: Not Available for Purchase) 37 See Note 1 Fitting (Note: Not Available for Purchase) 38 See Note 1 Pulley (Note: Not Available for Purchase) 39 7026638 1 Switch, Pressure 40 7026639 1 Valve, Pilot 41 7026640 1 Gauge
REV
A
ITEM PART NUMBER QTY
DESCRIPTION
42 See Note 1 Hose (Note: Not Available for Purchase) 43 See Note 1 Tube, Feed (Note: Not Available for Purchase) 44 See Note 1 Tube (Note: Not Available for Purchase) 45 See Note 1 Tube (Note: Not Available for Purchase) 46 See Note 1 Aftercooler (Note: Not Available for Purchase) 47 See Note 2 Clamp (Note: Not Available for Purchase) 48 See Note 2 Clamp (Note: Not Available for Purchase) 49 See Note 1 Harness, Wiring (Note: Not Available for Purchase) 50 7026658 1 Filter Assembly 50 7026641 1 Element, Filter 51 See Note 23 oz Oil, Compressor (Note: Not Available for Purchase) 52 0100020 AR Sealant 53 See Note 1 Key (Note: Not Available for Purchase) 54 See Note 2 Setscrew (Note: Not Available for Purchase) 55 See Note 2 Cover, Clamp End (Note: Not Available for Purchase) 56 7026642 1 Belt 57 7026643 1 Decal - Unit Warning 58 7026644 1 Decal - Pressure Switch Warning 59 7026645 1 Decal - Drain Tank Warning 60 7026646 1 Decal - Compressor Maintenance 61 7026647 1 Decal - Initial Oil Fill 62 7026648 1 Decal - Hot Surfaces Warning 63 7026649 1 Decal - Paper Element Cleaning 64 7026650 1 Decal - Dual Control
