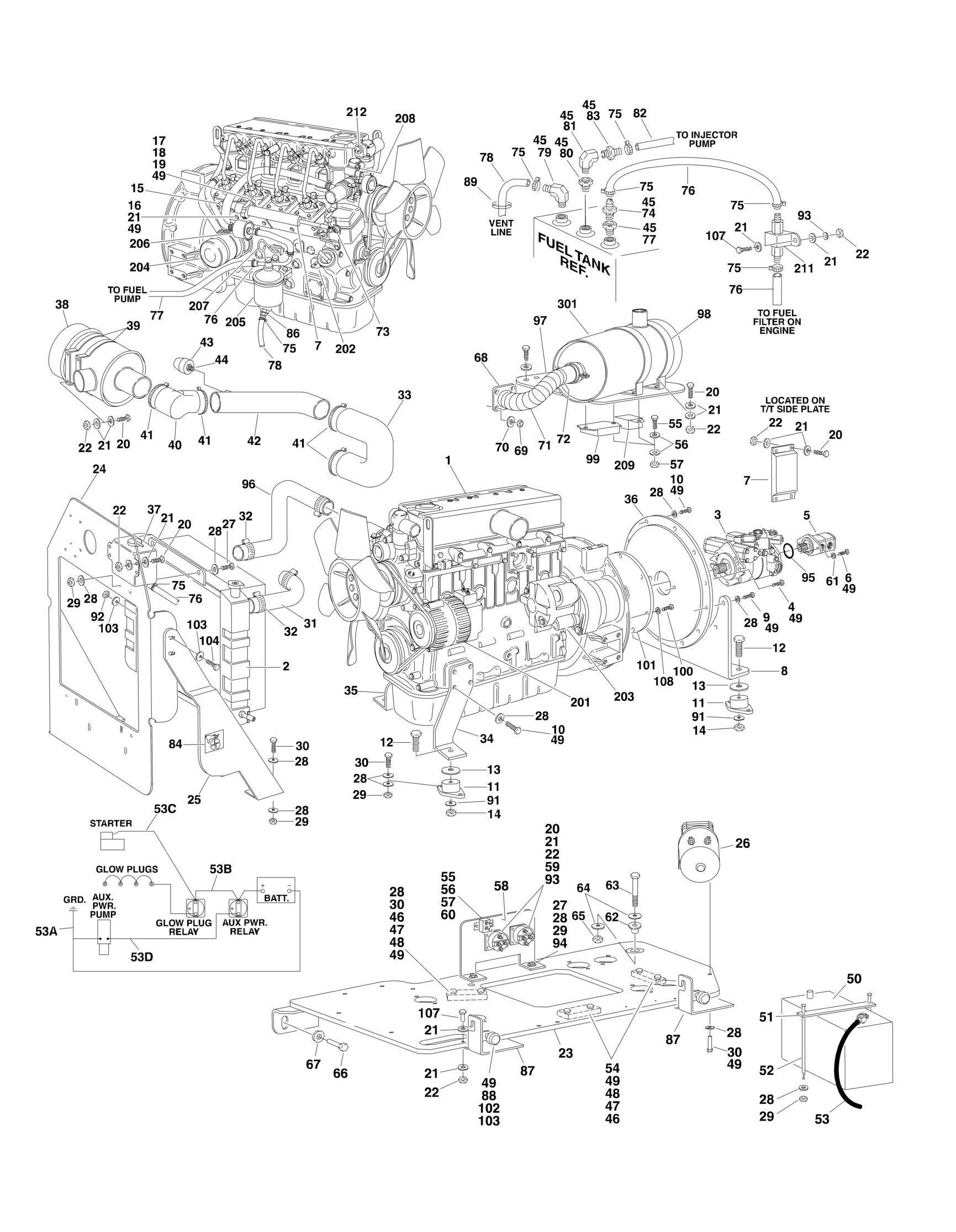

FIGURE 2-15. ISUZU ENGINE INSTALLATION - 4LE1
FIGURE 2-15. ISUZU ENGINE INSTALLATION - 4LE1
FIGURE 2-15. ISUZU ENGINE INSTALLATION - 4LE1
ITEM PART NUMBER QTY
0271441 Ref ENGINE ASSEMBLY
DESCRIPTION
1 2000163 1 Engine - ISUZU 4LE1 2 3620040 1 Radiator 3 3600296 1 Piston Pump Assembly (See PISTON PUMP ASSEMBLY for Breakdown) 4 0641812 2 Bolt 1/2in-13NC x 1-1/2in 5 Ref Gear Pump Assembly Options: 5 3600297 1 Gear Pump Assembly (See GEAR PUMP ASSEMBLY for Breakdown) (Prior to SN 0300070763) 5 3600368 1 Gear Pump Assembly (No Service Parts Available) (SN
0300070763 through 0300096000)
6 0641608 2 Bolt 3/8in-16NC x 1in 7 0060033 1 Kit - Throttle Actuator 8 3571201 1 Plate, Engine Mounting - Rear 9 0701015 6 Bolt, Metric 10mm x 35mm 10 0701012 15 Bolt, Metric 10mm-1.5 x 25mm 11 3200378 4 Mount, Rubber 12 0641820 4 Bolt 1/2in-13NC x 2-1/2in 13 4740274 4 Washer, Snubbing 14 3311805 4 Locknut 1/2in-13NC 15 3571266 1 Bracket, Throttle Mount 16 0700610 4 Bolt, Metric 6mm x 20mm 17 3900217 1 Screw, Shoulder 18 0962031 1 Bushing, Flange 19 4740442 1 Washer, Belleville 20 0641508 18 Bolt 5/16in-18NC x 1in 21 4751400 48 Flatwasher 1/4in Regular 22 3311405 24 Locknut 1/4in-20NC 23 4846080 1 Tray Weldment 24 3571692 1 Plate, Radiator Mount 25 3570607 1 Plate, Radiator Support - Left 26 3600279 NLA Auxiliary Pump Assembly (Use p/n 3600423) (See AUXILIARY PUMP ASSEMBLY for Breakdown) 27 0641610 6 Bolt 3/8in-16NC x 1-1/4in 28 4751600 57 Flatwasher 3/8in Regular 29 3311605 26 Locknut 3/8in-16NC 30 0641611 20 Bolt 3/8in-16NC x 1-3/8in 31 2720441 1 Hose, Radiator - Top 32 1320012 4 Clamp 33 0080232 1 Adapter, Air Intake 34 3571192 1 Plate, Engine Mounting - Left Front 35 3571265 1 Plate, Engine Mounting - Right Front 36 0080181 1 Plate, Pump Adapter 37 1580011 1 Tank, Coolant Recovery 38 1340060 1 Air Cleaner Assembly 38 7012664 1 Element, Air Cleaner 39 0340041 2 Band, Air Cleaner 40 0080201 1 Elbow, Rubber 41 1320016 4 Clamp 42 4567817 1 Tube, Air Intake
