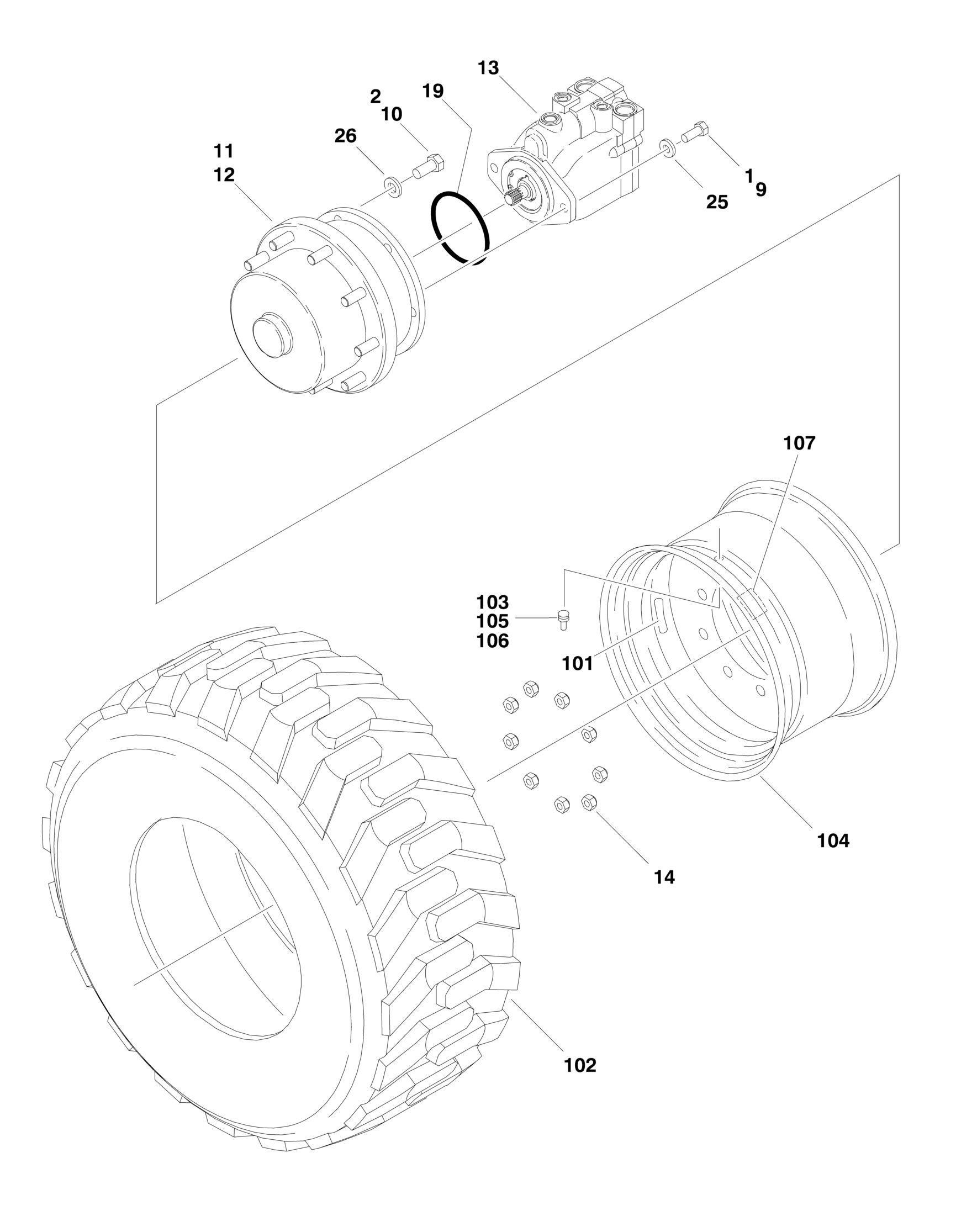

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

Ref WHEEL DRIVE INSTALLATIONS 0259145 Ref 2WD (Prior to SN 0300072506) 0272784 Ref 2WD (SN 0300072506 through 0300076632) 0272926 Ref 2WD (SN 0300076633 through 0300096000) 0259146 Ref 4WD (Prior to SN 0300072506) 0272783 Ref 4WD (SN 0300072506 through 0300076632) 0272925 Ref 4WD (SN 0300076633 through 0300096000) 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 9 Ref Hardware Options: 9 0681810 AR Bolt 1/2in-13NC x 1-1/4in (Grade 8) 9 3311801 AR Nut 1/2in-13NC (2WD Only) (Not Shown) (SN 0300076633

through 0300096000)

10 Ref Bolt 5/8in-11NC x 1-1/2in (Grade 8) 10 0682012 AR Bolt 5/8in-11NC x 1-1/2in (Grade 8) (Prior to SN 0300076633) 10 0682014 AR Bolt 5/8in-11NC x 1-3/4in (Grade 8) (SN 0300076633 through

0300096000)

11 Ref Drive Hub Assembly Options: 11 Not Required 0 2WD Front 11 Ref 4WD Rear 11 2780246 2 Drive Hub Assembly (See DRIVE HUB ASSEMBLY for Breakdown) (Prior to SN 0300076633) 11 2780268 2 Drive Hub Assembly (See DRIVE HUB AND HUB WITH BRAKE ASSEMBLIES for Breakdown) (SN 0300076633

through 0300096000)

12

Ref Drive Hub/Brake Assembly Options: 12 Ref 2WD Rear 12 2780243 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY for Breakdown) (Prior to SN 0300064140) 12 2780253 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY for Breakdown) (SN 0300064140 through

0300076632)

12 2780267 2 Drive Hub/Brake Assembly (See DRIVE HUB AND HUB WITH BRAKE ASSEMBLIES for Breakdown) (SN

0300076633 through 0300096000)

12 Ref 4WD Rear 12 2780244 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY for Breakdown) (Prior to SN 0300057477) 12 2780254 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY for Breakdown) (SN 0300057477 through

0300076632)

12 2780267 2 Drive Hub/Brake Assembly (See DRIVE HUB AND HUB WITH BRAKE ASSEMBLIES for Breakdown) (SN

0300076633 through 0300096000)

13

Ref DRIVE MOTOR ASSEMBLY OPTIONS: 13 Ref 2WD Rear 13 3160242 NLA Drive Motor Assembly (Use p/n 3160353 - See DRIVE MOTOR ASSEMBLY (4 BOLT) for Breakdown) (For 3160353 - See DRIVE MOTOR ASSEMBLY (5 BOLT) for Breakdown)

(Prior to SN 0300076633)

13 3160298 NLA Drive Motor Assembly (Use p/n 3160351 - See DRIVE MOTOR ASSEMBLY (4 BOLT) for Breakdown) (For 3160351 - See DRIVE MOTOR ASSEMBLY (5 BOLT) for Breakdown)

(SN 0300076633 through 0300096000) REV

H A A J A C

ITEM PART NUMBER QTY DESCRIPTION

13 Ref 4WD Front and Rear 13 3160243 NLA Drive Motor Assembly (Use p/n 3160354 - See DRIVE MOTOR ASSEMBLY (4 BOLT) for Breakdown) (For 3160354 - See DRIVE MOTOR ASSEMBLY (5 BOLT) for Breakdown)

(Prior to SN 0300076633)

13 3160266 NLA Drive Motor Assembly (Use p/n 3160348 - See DRIVE MOTOR ASSEMBLY (4 BOLT) for Breakdown) (For 3160348 - See DRIVE MOTOR ASSEMBLY (5 BOLT) for Breakdown)

(SN 0300076633 through 0300096000)

14 3300106 AR Lugnut (9 Per Hub) 19 3790045 AR O-Ring (1 Per Motor) 25 4891800 AR Flatwasher 1/2in Hardened 26 4892000 AR Flatwasher 5/8in Hardened 27 2300016 AR Fluid, Hydraulic (Not Shown - Use with Brake) Ref TIRE AND WHEEL INSTALLATIONS 0270091 Ref 12 x 16.5 Pneumatic 0270650 Ref 12 x 16.5 Pneumatic (Non-Marking) 0272924 Ref 12 x 16.5 Pneumatic LT 0272310 Ref 12 x 16.5 Pneumatic TS 0270092 Ref 12 x 16.5 Foam-Filled

REV

A A A 1 A

0270653 Ref 12 x 16.5 Foam-Filled (Non-Marking) A

0259351 Ref 14 x 17.5 Pneumatic (Prior to SN 0300064803)

A 0271995 Ref 14 x 17.5 Pneumatic (SN 0300064803 through 0300096000) A 0272311 Ref 14 x 17.5 Pneumatic TS 1 0259354 Ref 14 x 17.5 Foam-Filled (Prior to SN 0300064803) A 0271998 Ref 14 x 17.5 Foam-Filled (SN 0300064803 through 0300096000) A 0270093 Ref 33/16LL x 16.1 Pneumatic A 0270094 Ref 33/16LL x 16.1 Foam-Filled A 0270074 2 12 x 16.5 Pneumatic Right Side A 0270075 2 12 x 16.5 Pneumatic Left Side A 0272923 4 12 x 16.5 Pneumatic (LT) A 0272336 2 12 x 16.5 Pneumatic Right Side (TS) A 0272337 2 12 x 16.5 Pneumatic Left Side (TS) A 0270651 2 12 x 16.5 Pneumatic Right Side (Non-Marking) A 0270652 2 12 x 16.5 Pneumatic Left Side (Non-Marking) A 0270076 2 12 x 16.5 Foam-Filled Right Side (See Note) A 0270077 2 12 x 16.5 Foam-Filled Left Side (See Note) A 0270654 2 12 x 16.5 Foam-Filled Right Side (Non-Marking) (See Note) A 0270655 2 12 x 16.5 Foam-Filled Left Side (Non-Marking) (See Note) A 0259352 2 14 x 17.5 Pneumatic Right Side (Prior to SN 0300064803) B 0271993 2 14 x 17.5 Pneumatic Right Side (SN 0300064803 through

0300096000)

A 0259353 2 14 x 17.5 Pneumatic Left Side (Prior to SN 0300064803) B 0271994 2 14 x 17.5 Pneumatic Left Side (SN 0300064803 through

0300096000)

A 0272352 2 14 x 17.5 Pneumatic Right Side (TS) A 0272353 2 14 x 17.5 Pneumatic Left Side (TS) A 0259355 2 14 x 17.5 Foam-Filled Right Side (See Note) (Prior to SN

0300064803)

B 0271997 2 14 x 17.5 Foam-Filled Right Side (See Note) (SN 0300064803

through 0300096000)

A 0259356 2 14 x 17.5 Foam-Filled Left Side (See Note) (Prior to SN

0300064803)

B 0271996 2 14 x 17.5 Foam-Filled Left Side (See Note) (SN 0300064803 A

ITEM PART NUMBER QTY DESCRIPTION

through 0300096000)

0270078 4 33/16LL x 16.1 Pneumatic 0270079 4 33/16LL x 16.1 Foam-Filled (See Note) Ref Note: Assemblies may require ballast/foam filling to

manufacturer's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.

101 Ref Decal Options (Pneumatic Only): 101 1702740 1 Decal - 90PSI 101 1702738 1 Decal - 45PSI 101 1703067 1 Decal - 40PSI 102 Ref Tire Options: 102 4520216 1 12 x 16.5 NHS 102 4520240 1 12 x 16.5 NHS (Non-Marking) 102 4520266 1 12 x 16.5 LT 102 4520212 1 14 x 16.1 102 4520259 1 14 x 17.5 NHS (p/n was 4520171) (Prior to SN 0300064803) 102 4520259 1 14 x 17.5 NHS (SN 0300064803 through 0300096000) 102 4520212 1 33/16LL x 16.1 103 4640113 1 Valve, Air (Pneumatic Only) 104 Ref Rim, Wheel 104 4860214 1 16.1 x 14 (Use with 33/16LL x 16.1 & 14 x 16.1Tires) 104 4860213 1 16.5 x 9.75 (Use with 12 x 16.5 Tires) 104 4860198 1 17.5 x 10.50 (Use with 14 x 17.5 Tires) 105 1120552 1 Cap, Valve Stem (Green) (Pneumatic TS Tires Only) 106 1300019 AR Chemical, Tire Sealant (Pneumatic TS Tires Only) 107 1705364 1 Decal - Tire Sealant (Pneumatic TS Tires Only)

REV

A A
