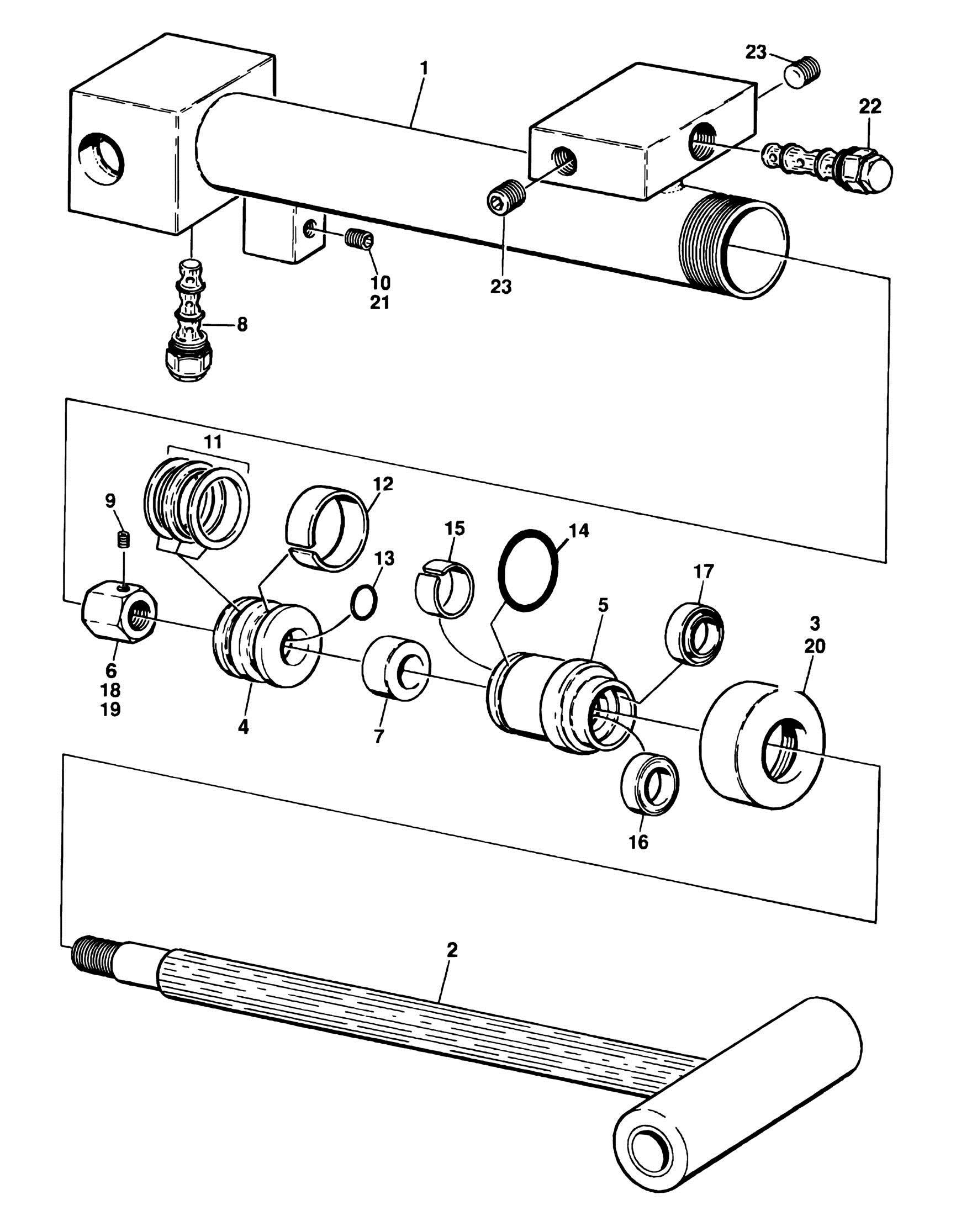

FIGURE 5-7. SLAVE CYLINDER ASSEMBLY - MODELS 35ELECTRIC, 40ELECTRIC & 45ELECTRIC
ITEM PART NUMBER QTY
DESCRIPTION
Ref SLAVE CYLINDER ASSEMBLY 1682876 Ref Slave Cylinder Assembly Prior to January 1995 1683285 Ref Slave Cylinder Assembly January 1995 to Present 1 1682878 1 Barrel Weldment 1 0961608 2 Bushing, Teflon 2 Ref Rod Weldment Options: 2 1682881 1 1682876 Cylinder (Prior to January 1995) 2 1683286 1 1683285 Cylinder (January 1995 to Present) 2 0961608 2 Bushing, Teflon 3 1120110 1 Retainer 4 Ref Piston Options: 4 3480123 1 1682876 Cylinder (Prior to January 1995) 4 3480217 1 1683285 Cylinder (January 1995 to Present) 5 1682154 1 Head 6 Ref Nut, Hex Options: 6 3300309 1 1682876 Cylinder (Prior to January 1995) 6 3300308 1 1683285 Cylinder (January 1995 to Present) 7 4566023 1 Spacer, Tube 8 4640509 1 Valve, Holding 9 3900170 1 Setscrew 3/8in-16NC x 3/8in 10 2200222 1 Plug, Pipe 11 Kit 1 T-Seal 12 Kit 1 Ring, Wear 13 Kit 1 O-Ring 14 Kit 1 O-Ring 15 Kit 1 Ring, Wear 16 Kit 1 Seal, Rod 17 Kit 1 Wiper, Rod 18 0100038 AR Primer, Locking 19 0100011 AR Loctite #242 20 0100035 AR Loctite #222 21 0100020 AR Sealant, Pipe 22 Ref Cartridge, Holding Valve Options: 22 4640509 1 Cartridge (1682876 Cylinder-Prior to Jan 1995) 22 2900792 1 Seal Kit - 4640509 Valve 22 4640932 1 Cartridge (1683285 Cylinder-Jan 1995 to Present) 22 7011112 1 Seal Kit - 4640932 Valve 23 2220883 2 Plug, Socket Hex 2901147 1 Seal Kit - 1682876 & 1683285 Cylinder (Includes Items 11-17)
