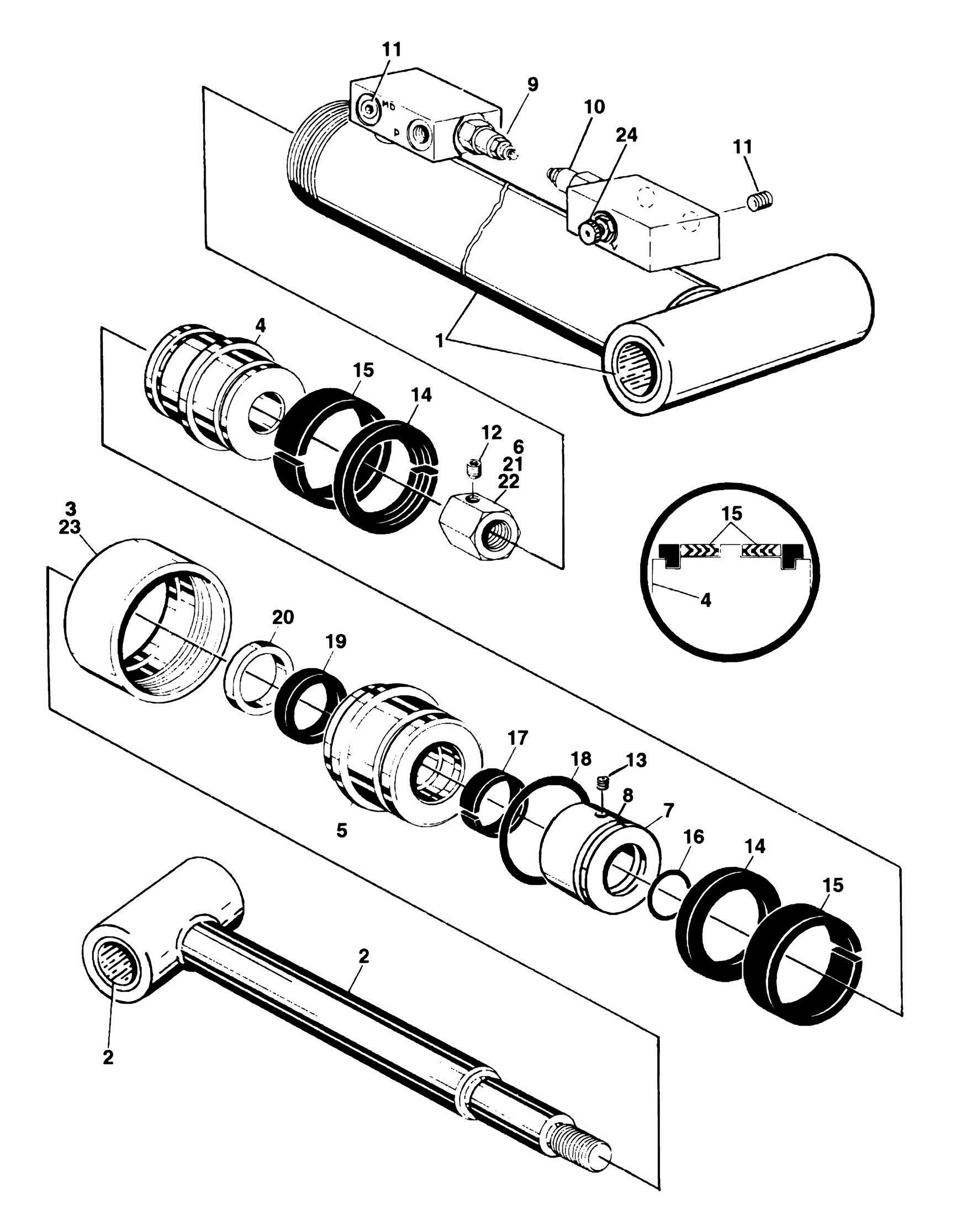

FIGURE 5-3. MID LIFT CYLINDER ASSEMBLIES - MODELS 40ELECTRIC & 45ELECTRIC
ITEM PART NUMBER QTY DESCRIPTION REV
Ref MID LIFT CYLINDER ASSEMBLY 1683018 Ref Mid Lift Cylinder Assembly 45electric (Prior to SN 33090) D-4 1683522 Ref Mid Lift Cylinder Assembly 45electric (SN 33090 to Present) A-1 1682861 Ref Mid Lift Cylinder Assembly 40electric (Prior to SN 33111) C-3 1683519 Ref Mid Lift Cylinder Assembly 40electric (SN 33111 to Present) A-1
1
Ref Barrel Weldment Options: 1 Ref Barrel Weldment 45electric 1 1683019 1 1683018 Cylinder (Prior to SN 33090) 1 1683516 1 1683522 Cylinder (SN 33090 to Present) 1 Ref Barrel Weldment 40electric 1 1682862 1 1682861 Cylinder (Prior to SN 33111) 1 1683513 1 1683519 Cylinder (SN 33111 to Present) 1 0961726 2 Bushing, Teflon 2 Ref Rod Weldment Options: 2 1683021 1 Rod Weldment 45electric 2 1682864 1 Rod Weldment 40electric 2 0961726 2 Bushing, Teflon 3 Ref Retainer Options: 3 1120305 1 Retainer 45electric 3 1120108 1 Retainer 40electric 4 Ref Piston Options: 4 3480113 1 Piston 45electric 4 3480115 1 Piston 40electric 5 Ref Head Options: 5 1682209 1 Head 45electric 5 1681344 1 Head 40electric 6 Ref Nut, Hex Options: 6 3300281 1 Nut, Hex 45electric 6 3300279 1 Nut, Hex 40electric 7 Ref Washer Options: 7 4740207 1 Washer 45electric 7 4740394 1 Washer 40electric 8 Ref Spacer Options: 8 4566435 1 Spacer 45electric 8 4565994 1 Spacer 40electric 9 4640634 1 Cartridge, Holding Valve 9 2900770 1 Seal Kit - 4640634 10 4640816 1 Cartridge, Holding Valve 10 2900770 1 Seal Kit - 4640771 Valve 11 2220885 2 Plug 12 3900170 1 Setscrew 3/8in-16NC x 3/8in 13 Ref Setscrew 1/4in-20NC x 1/4in Options: 13 Not Required 0 Setscrew 1/4in-20NC x 1/4in 45electric 13 3951402 1 Setscrew 1/4in-20NC x 1/4in 40electric 14 Kit 2 Ring, Lock 15 Kit 2 Seal, Piston 16 Kit 1 O-Ring 17 Kit 1 Ring, Wear 18 Kit 1 O-Ring 19 Kit 1 Seal, Rod
ITEM PART NUMBER QTY DESCRIPTION
20 Kit 1 Wiper Rod 21 0100011 AR Loctite #242 22 0100038 AR Primer, Locking 23 0100035 AR Loctite #222 24 Not Required 0 Not Required Ref Mid Lift Cylinder Assembly 45electric 2901154 1 Seal Kit - 1683018 & 1683522 Mid Lift Cylinder (Includes Items 14-20) Ref Mid Lift Cylinder Assembly 40electric 2900371 1 Seal Kit - 1682861 & 1683519 Mid Lift Cylinder (Includes Items 64-70)
