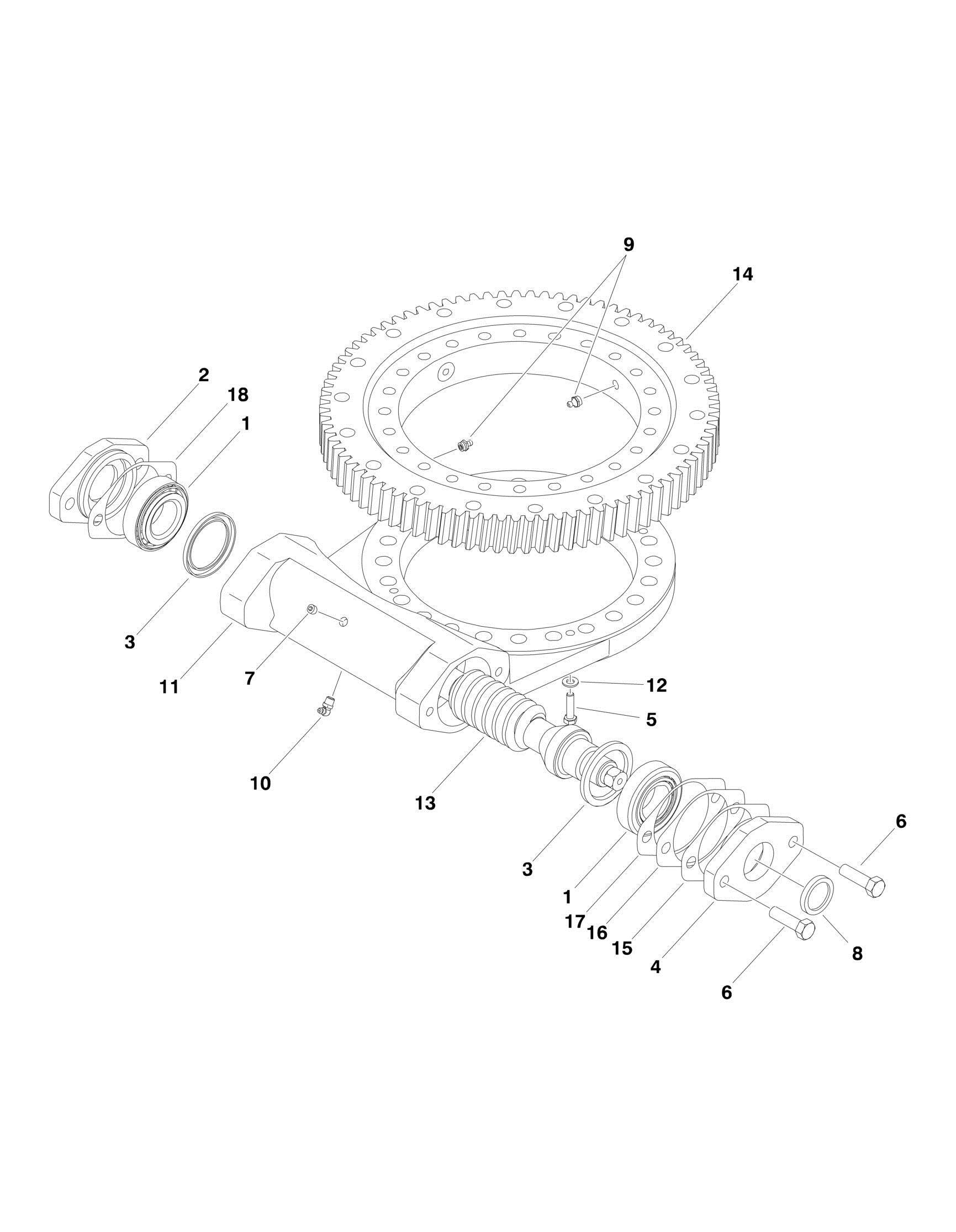

FIGURE 2-6. SWING BEARING ASSEMBLY - MODELS 30ELECTRIC & 35ELECTRIC (POST PRODUCTION SERVICE REPLACEMENT

FIGURE 2-6. SWING BEARING ASSEMBLY - MODELS 30ELECTRIC & 35ELECTRIC (POST PRODUCTION SERVICE REPLACEMENT)

FIGURE 2-6. SWING BEARING ASSEMBLY - MODELS 30ELECTRIC & 35ELECTRIC (POST PRODUCTION SERVICE REPLACEMENT)

ITEM PART NUMBER QTY

DESCRIPTION

0440338 Ref SWING BEARING ASSEMBLY 1 7026042 2 Cup, Bearing 1 7026043 2 Cone, Bearing 2 7027356 1 Adapter, Motor 3 7027361 2 Seal 4 7027354 1 Cap, End 5 70000864 2 Bolt, 1/4in-20 x 1 1/8in 6 0641812 2 Bolt, 1/2in-13 x 1 1/2in 7 70000865 1 Plug 8 7027360 1 Seal 9 7027359 1 Fitting, Grease 10 7027358 2 Fitting, Grease 11 Not Available 1 Housing 12 4891400 2 Flatwasher, 1/4in 13 70000866 1 Gear, Worm 14 70000867 1 Gear, Ring 15 7027352 AR Gasket, .010 (Brown) 16 7027351 AR Gasket, .0075 (Clear) 17 7027350 AR Gasket, .005 (Blue) 18 7027353 1 Gasket, .020 (Yellow)
