Troubleshooting
To install the drive unit cover, place the bottom of the drive unit cover onto the frame and position the lower edges partially into the lower retaining clips. Align the holes in the cover with the mounting studs attached to the frame. Push the top of the cover partially into the upper retaining clips. Do not push either edge of the cover in completely in before starting all edges into the proper place. When the cover is aligned and started properly, press the cover completely into the retaining clips. Install the two nuts securing the cover to the frame.
ACCESSING THE DRIVE UNIT COMPARTMENT
The drive unit compartment is concealed behind a molded cover which fits securely around the drive unit and steer support to the frame. Remove the drive unit cover, starting at the top left edge of the cover and with both hands pull the cover away from the frame until the cover kicks out from the retaining clips. Repeat this for the right side of the cover. Work around the edge of the cover until free from the truck. See Figure 2.
To install the drive unit cover, place the bottom of the drive unit cover onto the frame and position the lower edges partially into the lower retaining clips. Align the holes in the cover with the alignment pin attached to the frame. Push the top of the cover partially into the upper retaining clips. Do not push either edge of the cover in completely in before starting all edges into the proper place. When the cover is aligned and started properly, press the cover completely into the retaining clips.

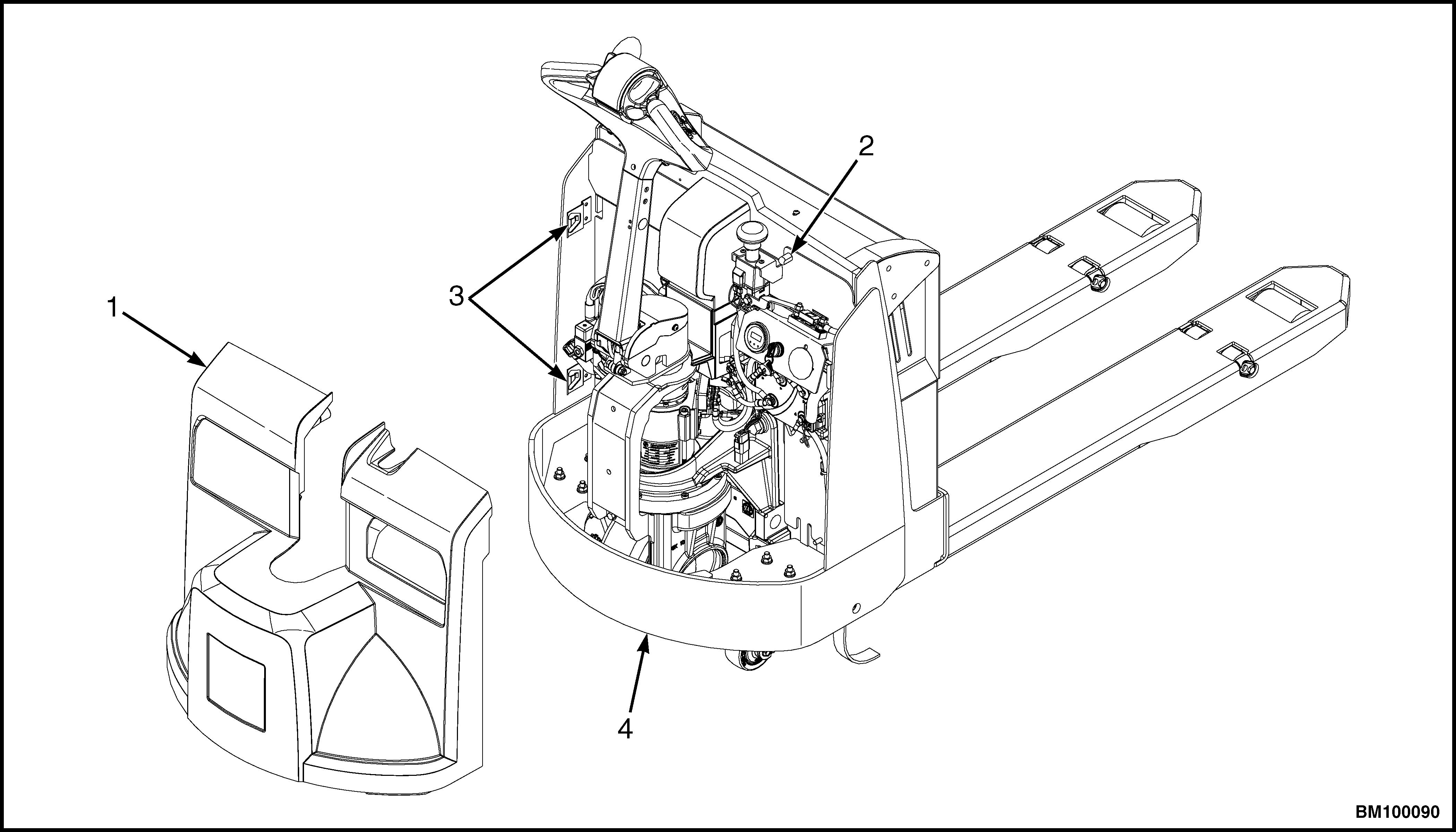

1. DRIVE UNIT COMPARTMENT COVER 2. ALIGNMENT PIN 3. RETAINING CLIPS 4. FRAME
