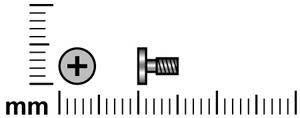

Phillips PM2.0×5.0 captive screw
Color Quantity Length Thread Head diameter
Black 4 5.0 mm 2.0 mm 5.0 mm

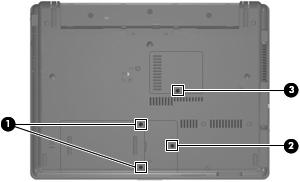

Where used:
(1) Two captive screws that secure the hard drive bay cover to the computer (screws are captured on the cover by C-clips)
(2) One captive screw that secures the WLAN module compartment cover to the computer (screw is captured on the cover by a C-clip)
(3) One captive screw that secures the memory module compartment cover to the computer (screw is captured on the cover by a C-clip)
