V. OPERATING INFORMATION

Hydraulic System Continued

(continued from previous page) valve is preset at the factory to 2200 psi.

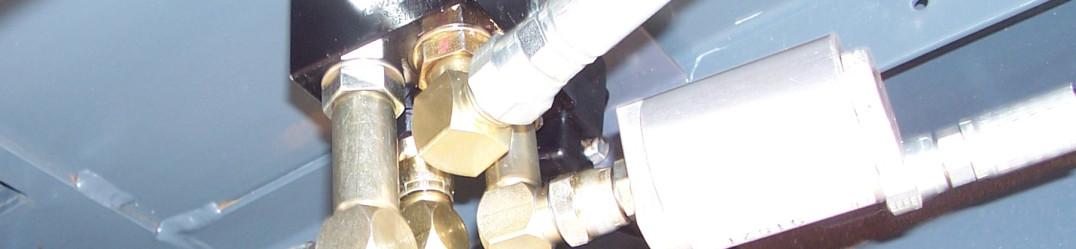

To check the psi, install a 3000 psi pressure gauge on the inlet of the dump valve (fig. 5.25, item 1). If any further adjustment is required, contact Hagie C ustomer Support Department.

Lift Cylinders

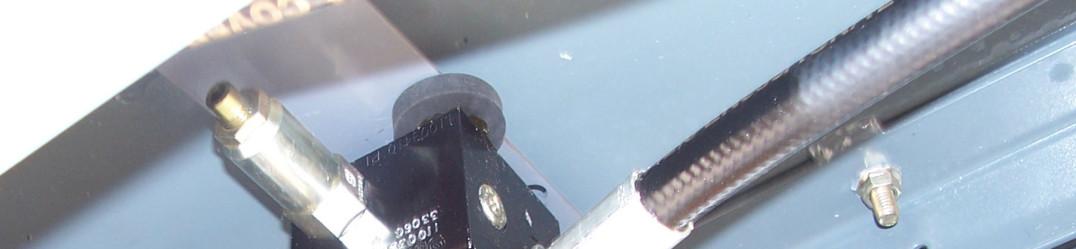

To adjust the height of each detasseling head assembly, cylinders mounted on each lift unit (fig. 5.26) are connected to a console-mounted lift control (fig. 5.27). The controls are switchable from manual to automatic.

For information about operating or adjusting parameters in the Tasseltrol®/LS automatic lift controls see pages 45-58.
