VII. SERVICE AND MAINTENANCE

Filters Continued

Fuel Filters

Diesel

PRIMARY (WATER SEPARATOR) - (fig. 7.29, item 2) Drain water and sediment from the separator daily. Replace every 500 hours or once a year, whichever comes first.

SECONDARY - (fig. 7.29, item 1) Replace every 500 hours or once a year, whichever comes first.

IN-LINE STRAINER - (fig. 7.29, item 3) Note direction of fuel flow arrow when replacing.

Gasoline

IN-LINE STRAINER - (fig. 7.30) Each fuel line is fitted with an in-line fuel strainer between the fuel tank and the fuel pump. Note direction of fuel flow arrow when replacing.

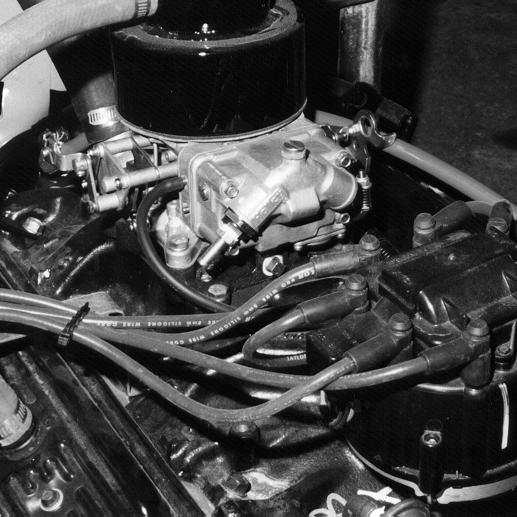

CARBURETOR – (fig. 7.31) The carburetor is also equipped with an in-line fuel filter. Note direction of fuel flow arrow when replacing.
