VII. SERVICE AND MAINTENANCE

High Pressure In-line Filters

STACK VALVES - The valves on the lift control stack valve are protected by a 90 Micron in-line sintered bronze filter (fig. 7.26). When the filter element is removed for cleaning, caution should be taken so the gasket is in the proper place when re-installing (fig. 7.27). Also, re-install filter paying attention to direction of flow so the end marked “OUT” is oriented correctly.

A/C System Dryer (if equipped)

FILTERS CONTINUED FILTERS CONTINUED

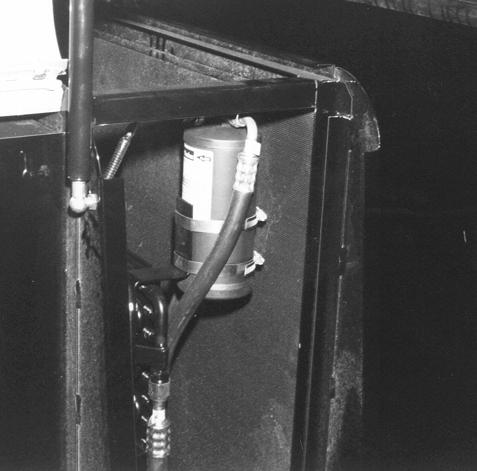

The A/C system receiver/dryer (fig. 7.28) should be replaced if the A/C loop is ever opened such as replacing a compressor or condenser line, etc.
