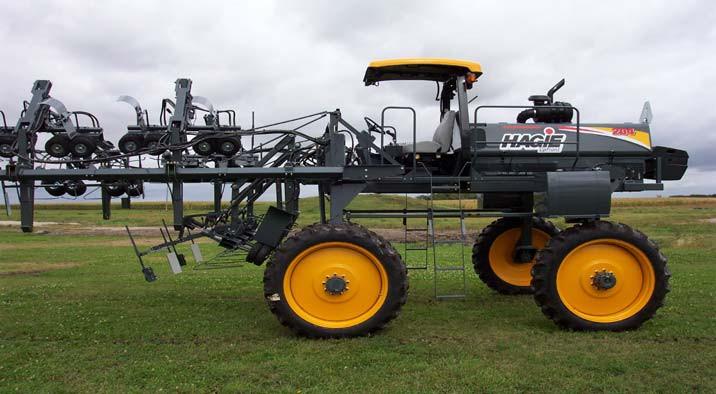

IV. PREPARING TO OPERATE ATTACHING QUAD PULLERS

NOTE:

Some quad pullers may come pre-assembled to the tool bar. In this case, you would attach them to the lift assembly.

2. Install the stalk guides to the quad puller head assembly (fig. 4.16, item 3).

3. Attach the deflector shield mount tube (fig. 4.16, item 1) and the deflector shields for right or left hand deflection (fig. 4.16, item 2).

4. Refer to page 32 for information about installing hydraulic hoses.

5. Normal operating angle of the quad puller is obtained when the tool bar mount surface is parallel to the ground (fig. 4.17, item 1). This angle can be varied by an adjusting bolt (fig. 4.17, item 2) and slot (fig. 4.17, item 3).

6. Adjust tire pressure to approximately 10 pounds.

NOTE:

Be sure all four tires have equal pressure. Check tire pressure daily.
