VII. SERVICE AND MAINTENANCE

Wheel Bolts

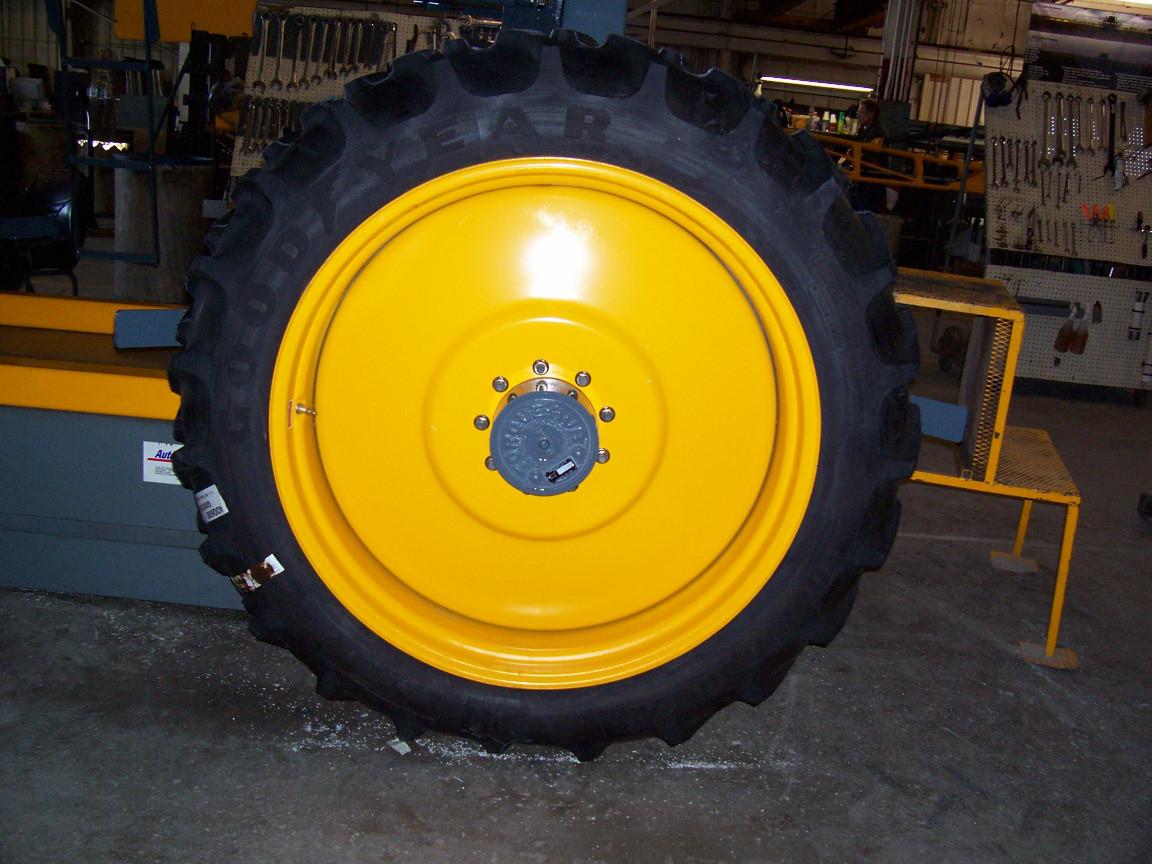

To install wheel and tire assembly on the Torque Hu b®, lubricate Torque Hub® studs with anti-seize grease. Align the wheel bolt holes with the Torque Hub ® studs and mount the wheel on the hub.

NOTE:

To achieve even torque consistency, the tire should be completely off the ground.

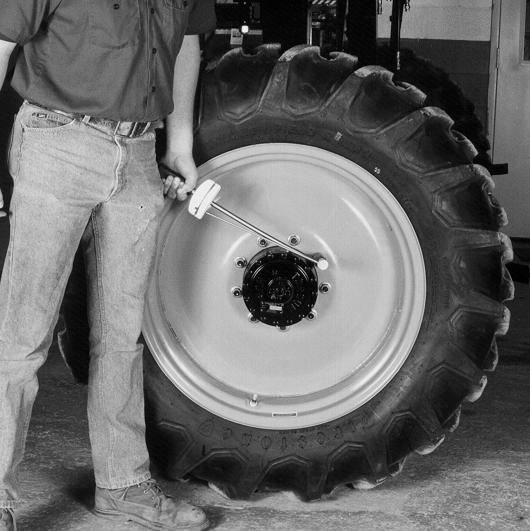

Start all of the lug nuts on and tighten them until they are just snug. Following the torque sequence in figure 7.55, first turn each lug nut to a torque value of 120 dry foot-pounds. Use slow, even pressure on the torque-wrench. Quick or jerky movements cause inaccurate values. Repeat the same sequence t o 150 dry foot-pounds and again finally to 180 dry foot-pounds.

Check lug nut torque immediately after receiving machine and every 50 hours thereafter.

If the wheel turns during lug nut torquing, lower the machine to the ground just enough for the tire to touch and prevent rotation or more preferably, place a suitable wedge between the tire and the ground.

Lower the machine and resume operation. Recheck torque after 30 minutes of operation.
