VII. SERVICE AND MAINTENANCE

Every 50 HOURS

1) Check tire pressure (page 105)

2) Check lug nut torque (page 103)

3) Grease all tie rod zerks (page 95)

4) Grease Torque Hub® seal boot (page 96)

Every 100 HOURS

1) Check Torque Hub® oil level (page 84)

2) Clean battery (page 97)

Every 250 HOURS

1) Check A/C compressor belt (page 101)

2) Change hydrostatic charge pressure filter (page 91)

3) Change hydraulic suction filter (page 91)

4) Change hydraulic return filter (page 91)

Every 500 HOURS

1) Check coolant concentration (page 85)

2) Change diesel primary fuel filter (water separator) (page 93)

3) Change diesel secondary fuel filter (page 93)

4) Change hydraulic reservoir oil (page 93)

5) Change Torque Hub® oil (page 84)

6) Pack bearing in non-drive tire hub in quad puller assembly (page 96)

Every 1000 HOURS

1) Drain coolant system (page 85)

VII. SERVICE AND MAINTENANCE

Fluids

Engine oil

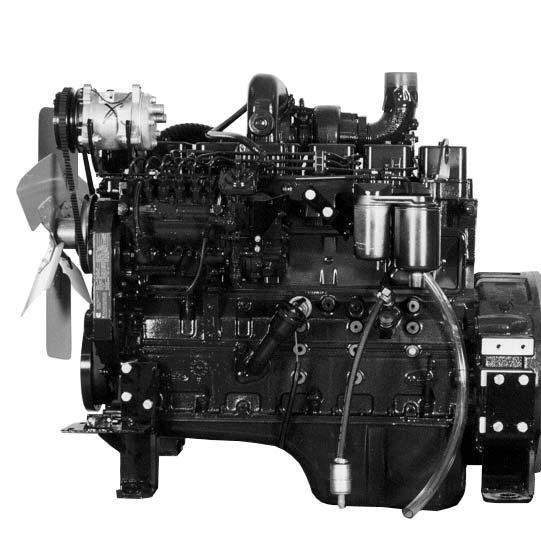

OIL LEVEL - The engine oil level dipstick is located on the left-hand side of the engine (fig . 7.1, item 1). Never operate the engine with the oil level below the “L” (low) mark or above the “H” (high) mark. Wait at least five minutes after shutting off the engine to check the oil level; this allows time for the oil to drain to the oil pan. Check the engine oil level daily, change it yearly or every 500 hours.

CAPACITY - Low to high mark capacity is 2.0 quarts. Engine oil pan capacity (including filter) Is 17 quarts (SAE 15W 40).

NOTE:

The engine must be level when checking the oil level to make sure the measurement is correct.

Hydraulic Oil Reservoir

OIL LEVEL - Check the hydraulic oil level in the reservoir using the dipstick daily (fig. 7.2). Add just enough fluid so the level reaches the bottom tip of the dipstick. Hydraulic oil will expand when heated in a system, and measuring the reservoir by these levels allows for expansion. Always check the hydraulic oil level when it is cool and with lift cylinders in lowered position.

TYPE - Premium hydraulic fluids containing high quality rust/ oxidation/and foam inhibitors are required. Hydraulic oil must conform to one of the following types: anti-wear hydraulic oil, type F automatic transmission fluid, or agricultural hydraulic transmission fluid. Replace the oil in the hydraulic reservoir at 500 hours or at the beginning of each detasseling season, whichever comes first.
