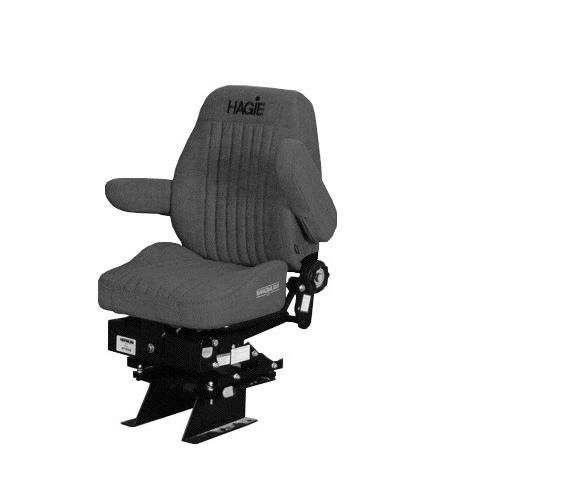

V. OPERATING INFORMATION

-1- Ride Firmness . Pull knob out to release air and “soften” ride. Push knob in to pump air and “stiffen” ride. (Ignition key must be in the “ON” position in order to activate the seat pump.)

-2- Fore-Aft Adjustment . Release fore-aft lock by pulling lever out. Slide forward or back to desired position. Release lever to lock.

-3- Height Adjustment . Release height lock by pulling lever up. Apply body weight slowly to lower seat position or remove body weight slowly to raise seat position. When at desired height release lever to lock.

-4- Back Angle Adjustment . Rotate knob counter -clockwise to tilt back rest forward and clockwise to tilt back rest back.

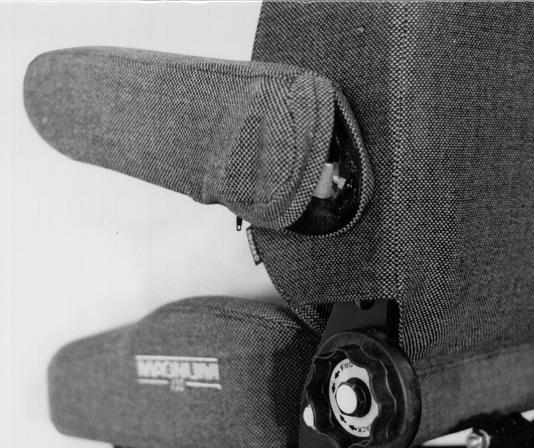

-5- Arm Rest Adjustment. Unzip either arm rest to expose the arm rest adjustment bolt. Turn bolt in to raise arm rest tilt and out to lower arm rest tilt (fig. 5.86, item 6).
