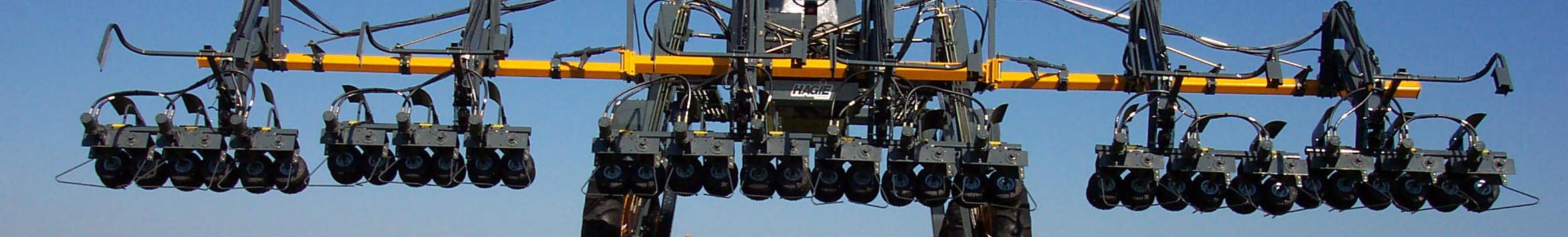

IV. PREPARING TO OPERATE ATTACHING QUAD PULLERS
NOTE:
Some quad pullers may come pre-assembled to the too l bar. In this case, you would attach them to the lif t assembly.
2. Install the stalk guides to the quad puller head assembly (fig. 4.15, item 3).
3. Attach the deflector shield mount tube (fig. 4.15, item 1) and the deflector shields for right or left hand deflection (fig. 4.15, item 2).
4. Refer to page 30 for information about installin g hydraulic hoses.
5. Adjust tire pressure to approximately 10 pounds.
NOTE:
Be sure all four tires have equal pressure. Check tire pressure daily.
