I. SAFETY/DECALS

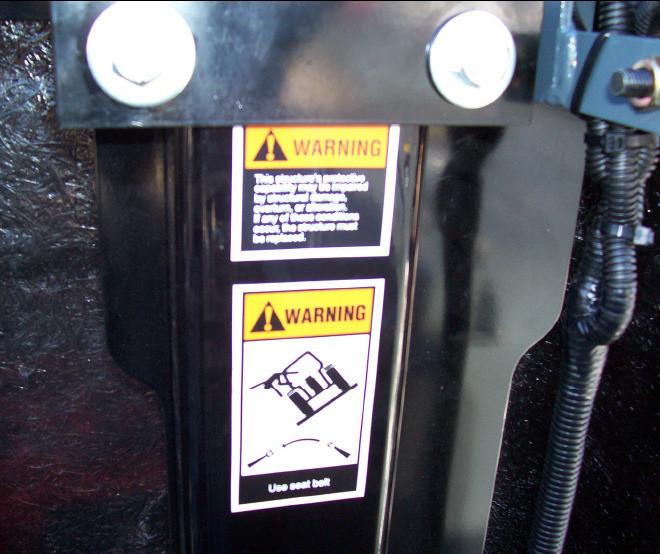

The following decals are not available from the Hagie 204 Parts Manual, but should be replaced if they are faded, damaged, or missing. They are located on the right hand vertical post of the roll over protection equipment . They are placed there by our vendor.

The top decal warns of impairment to the structure’s (the roll over protection) protective capabilities due to roll over, structural damage, or alteration. If any of these conditions should occur, the structure must be replaced.

The bottom decal warns of the use of the seatbelt.

Hagie Manufacturing urges you to obey all warnings found in this manual and on the decals placed on the machine and its components. We ask that you not take it upon yourself to alter the equipment or do maintenance beyond your capabilities.

At Hagie Manufacturing we strive to put safety first, we ask that you do the same.

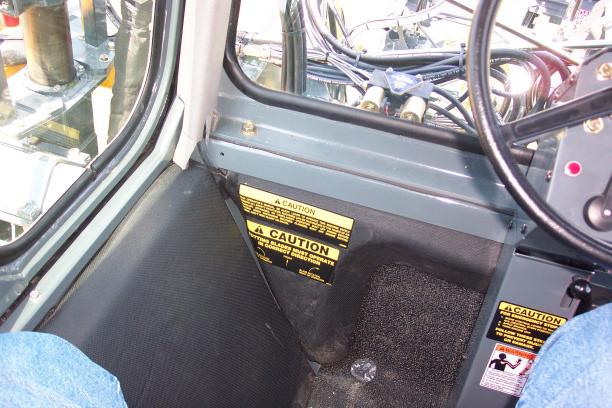

Additional decals can be found in section XI. CE Modification

II. IDENTIFICATION NUMBERS

Detasseler Identification

Each Hagie detasseler is identified by means of a frame serial number. This serial number denotes the model, year in which it was built, and the number of the detasseler. For further identification, the engine has a serial number, the hydrostatic pump has a serial number, the wheel motors have identification tags, and the planetary hubs have identification plates that describe the type of mount and gear ratio. To ensure prompt, efficient service when ordering parts or requesting service repairs from Hagie Manufacturing Company, record the serial and identification numbers in the space provided below.

NOTE:

Reference to left-hand and right-hand used throughout this manual refers to the position when seated in the operator’s seat facing forward.

Detasseler

NOTE: Detasseler serial number stamped in the frame on right rear corner.

NOTE: Diesel engine serial number located on the side of the front left gear housing.

II. IDENTIFICATION NUMBERS

Front:

Rear:

Planetary Hubs Left Right

Front:

Rear:

Hydrostatic Pumps

Front Wheel Motors And Left Rear Motor

Left Front:______________________

Left Rear:_______ _______________

Right Front:_____________________

Refer to parts manual.

Right Rear Wheel Motor W/Speed Sensor

Right Rear:______ _______________

Refer to parts manual.
