Replacing the LCD Bezel

NOTE: Be sure the magnet rests next to the post on the LCD cover as shown.

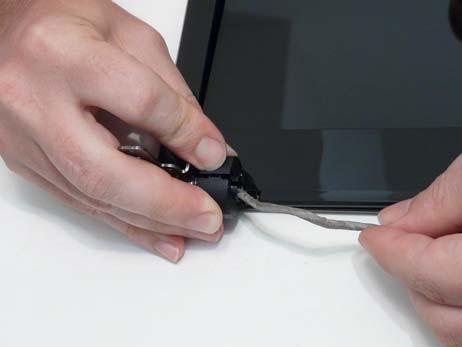

1. Route the LVDS cable through the cable channel and hinge cover as shown.

2. Route the Antenna cables and microphone cable through the cable channel and hinge cover as shown.

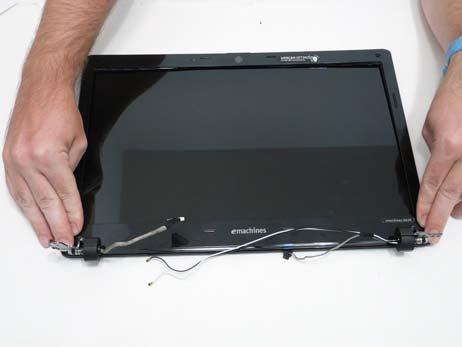

4. Press down on the bottom edge of the bezel until the securing clips snap into place.

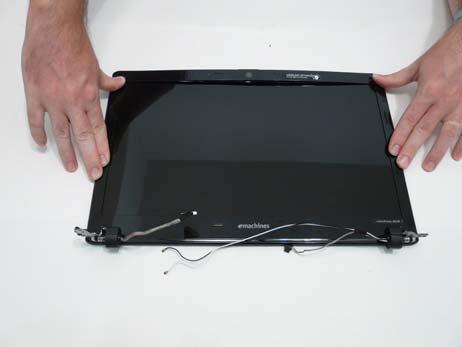

5. Continue pressing down along the edges, working towards the top of the LCD Module.

IMPORTANT:If any of the clips do not readily snap into place, check to make sure that none of the cables have been incorrectly routed and are blocking the clip.
