Removing the LCD Panel

1. See “Lift up the bezel and remove it from the LCD Module.” on page 92. 2. Remove the four screws securing the LCD Panel to the LCD Module.

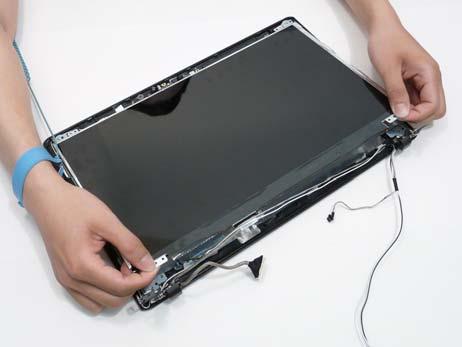

3. Lift the LCD Panel out of the LCD Module front edge first.

Step

Size

LCD Panel M2*3 4

Quantity Screw Type
