Removing the LCD Module

1. See “Removing the Mainboard” on page 80. 2. Lift the adhesive strip securing the WLAN cables in place.

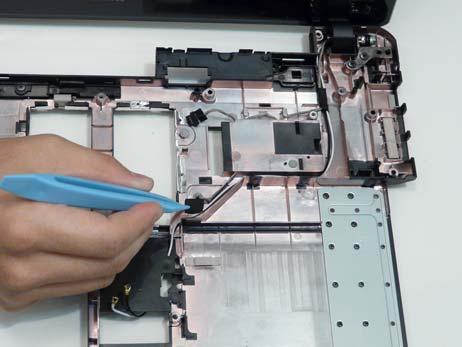

3. Remove the sponge securing the cables in the cable channel

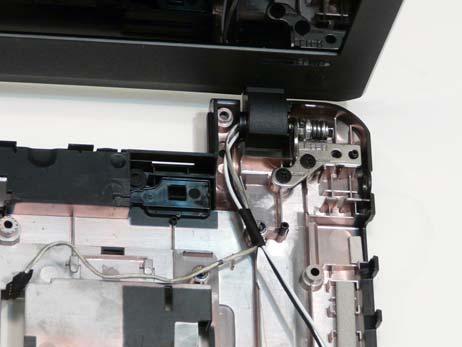

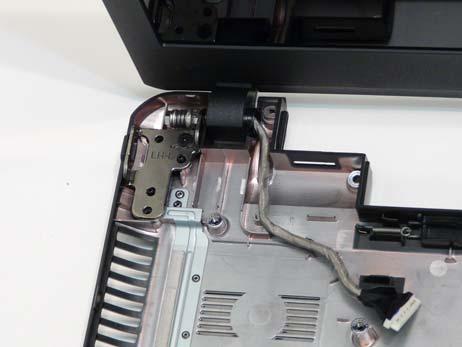

4. Remove the Antenna cables from the cable channel on the Lower Cover as shown, all the way to the hinge well.

6. Remove the three screws on the rear of the Lower Cover securing the LCD Module to the Lower Cover.

Step

Size

LCD Module M2.5*6 3

Quantity Screw Type

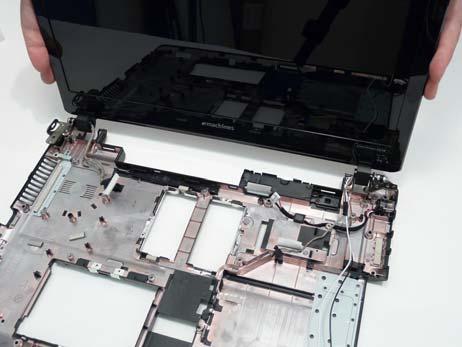

IMPORTANT: Ensure that the LCD cables are free from all cable clips before removing the LCD Module. 7. Using both hands, lift the LCD Module away from the Lower Cover.
