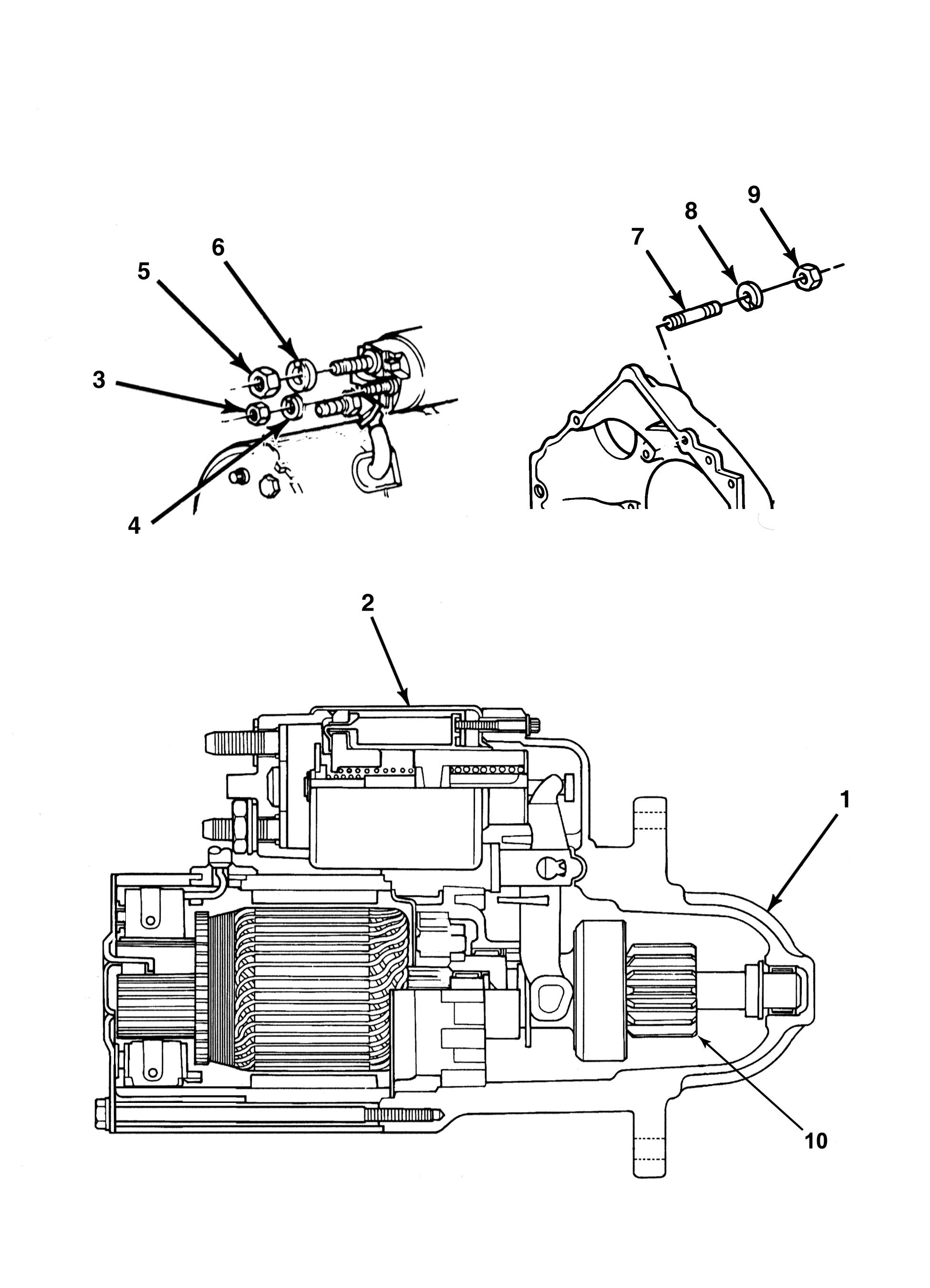

Starter Motor Components - Figure 15

from Crusader engines Marine Illustrated Parts Manual - MODEL MP454 XLi SERIAL NUMBER 101810 THRU 103880

Transmission and Related Parts (Hurth Gear) - Figure 26

ITEM PART NUMBER DESCRIPTION QUANTITY

1 RA122009 Starter Motor Assembly (starter up position) 1 2 RU0050 Solenoid, starter (old style) 1 2 RU0050A Solenoid, starter (new style) 1 3 RS7036 Nut, solenoid terminal 1 4 93003000 Lockwasher, solenoid terminal 1 5 RS7019 Nut, solenoid terminal 1 6 TBD Lockwasher, solenoid terminal 1 7 R031018 Stud, starter mounting 2 8 RS2181 Lockwasher, starter mounting 2 9 RS1029 Nut, starter mounting 2 10 RU0051 Drive, starter 1

Starter Motor Components - Figure 15
