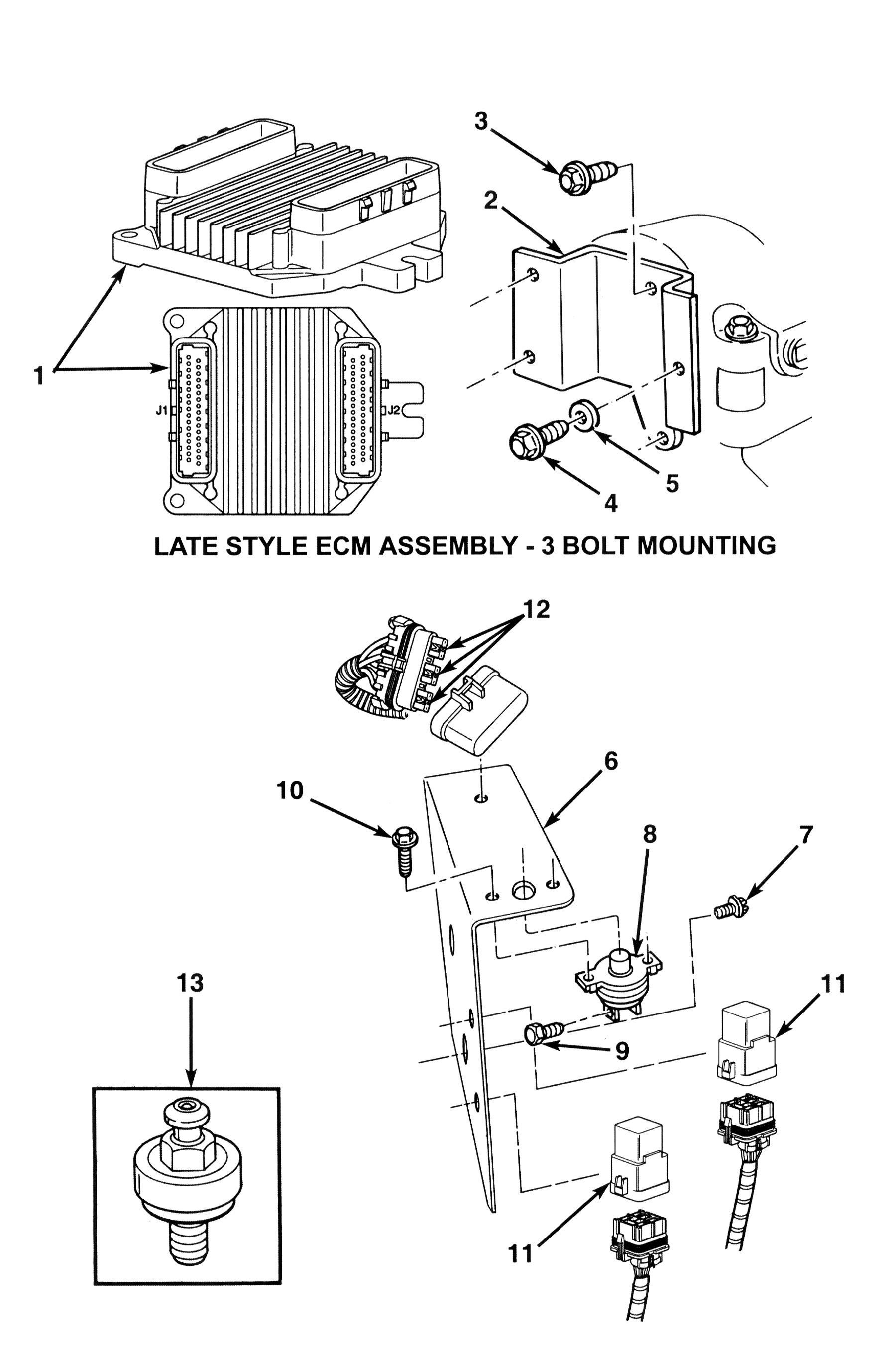

Late Style ECM Assemblies - Figure 13
from Crusader engines Marine Illustrated Parts Manual - MODEL MP454 XLi SERIAL NUMBER 101810 THRU 103880
ITEM PART NUMBER DESCRIPTION QUANTITY
1 47086 Electronic Control Module (ECM) 1 2 98616 Bracket, ECM mounting 1 3 90124050 Bolt, bracket to elbow mounting 2 4 90105125 Bolt, ECM to mounting bracket 3 5 93100000 Washer, mounting bolt 3 6 98660 Bracket, component mounting 1 7 90124050 Bolt, bracket to elbow mounting 3 8 R153006B Circuit Breaker Assembly (50 amp) 1 9 91680025 Screw, wire attaching 2 10 91833075 Bolt, circuit breaker mounting 2 11 R130012 Relay Assembly, fuel pump and ignition 2 12 R153017B Fuses, 20 amp 3 13 49039 Knock Sensor 2
