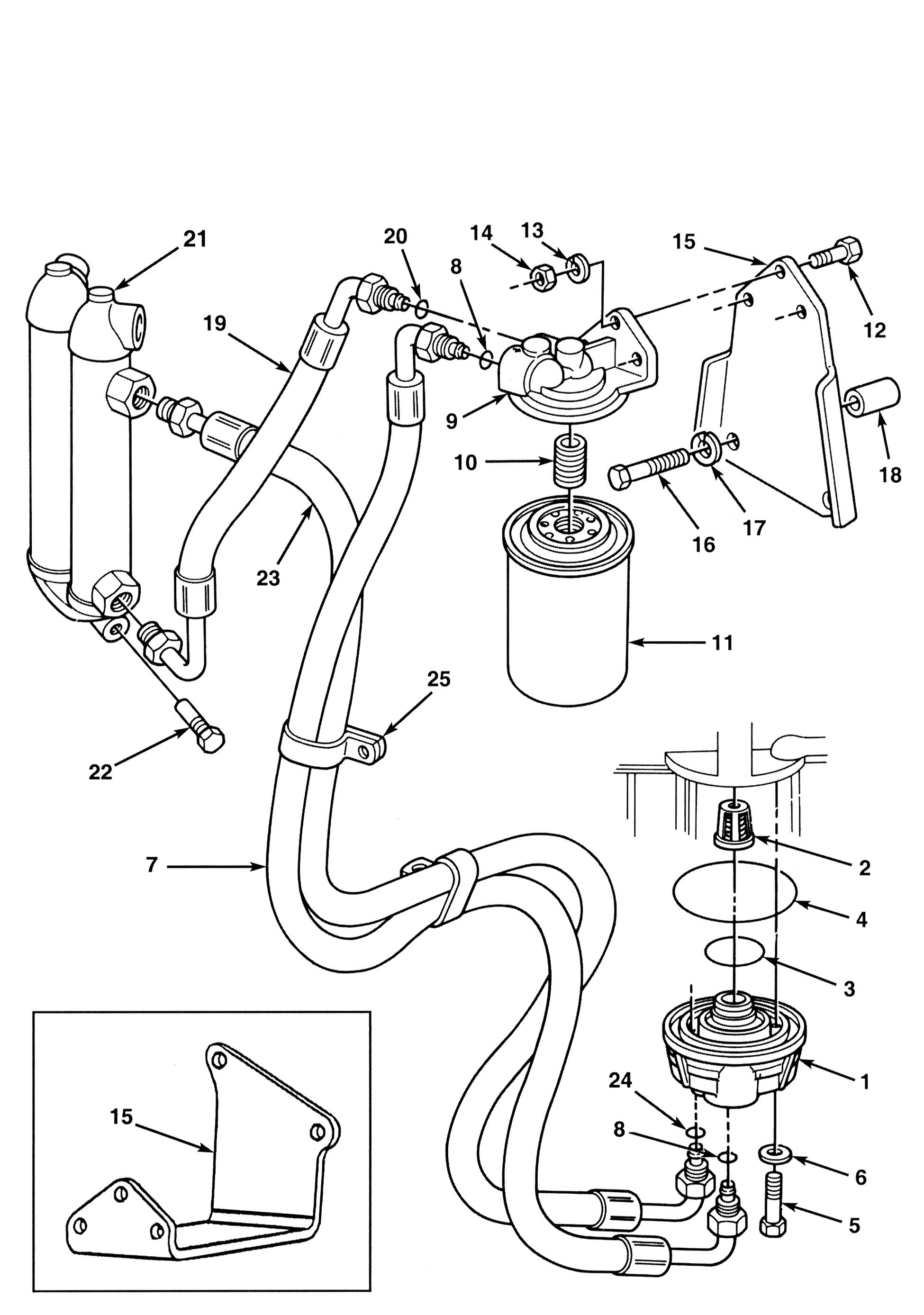

Remote Oil Filter Assembly - Figure 5

ITEM PART NUMBER DESCRIPTION QUANTITY

1 98105 Adapter, remote filter to cylinder block 1 2 98173 Valve, oil pressure relief 1 3 22802 O-Ring, adapter to block (Small) 1 4 22654 O-Ring, adapter to block (Large) 1 5 90225175 Bolt, adapter to cylinder block 2 6 92205000 Washer, adapter bolt (Copper) 2 7 18100 Hose Assembly, adapter to filter header (40”) 1 8 22897 O-Ring, oil line 2 9 R079066 Oil Filter Header 1 10 R024203 Nipple, header filter adapter 1 11 22679 Oil Filter Element 1 12 90205100 Bolt, header to bracket 3 13 93200000 Lockwasher, header mounting bolt 3 14 95200000 Nut, header mounting bolt 3 15 98334 Bracket, filter mounting 1 15 98635 Bracket, filter mounting (Front mounted closed cooling) 1 16 90405200 Bolt, bracket to cylinder head 2 17 93400000 Lockwasher, bracket mounting bolt 2 18 98183 Spacer, mounting bracket 1 19 18102 Hose Assembly, filter header to oil cooler (18”) 1 20 22897 O-Ring, oil line 1 21 98123 Oil Cooler Assembly (RWC cooling only) 1 21 98570 OIl Cooler Assembly (Closed cooling only)) AR 22 R168005 Zinc, sacrificial 1 23 18101 Hose Assembly, oil cooler to adapter (47”) 1 24 22897 O-Ring, oil line 1 25 22121 Clamp, oil line mounting 2
