Accumulator , 3.8 1

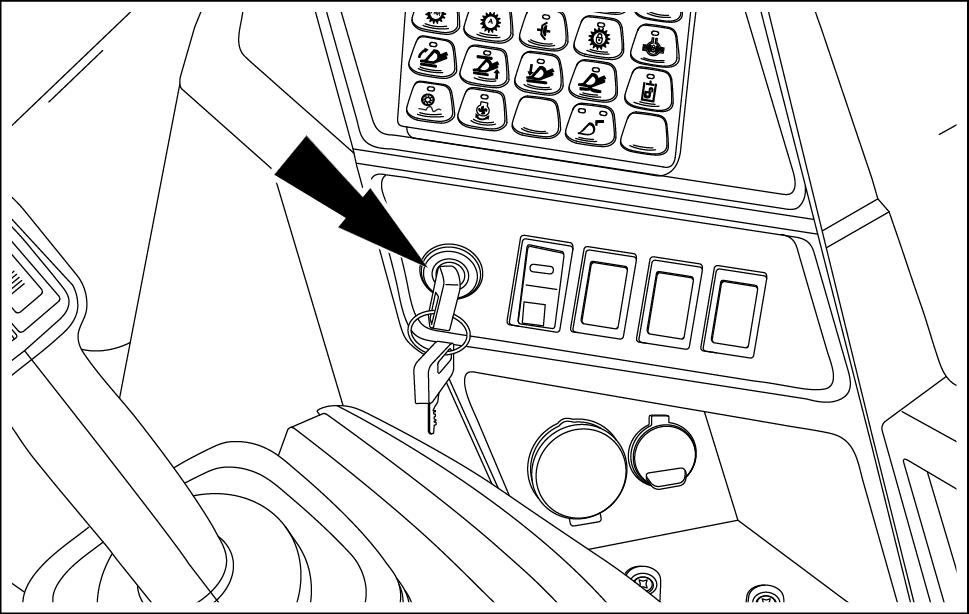

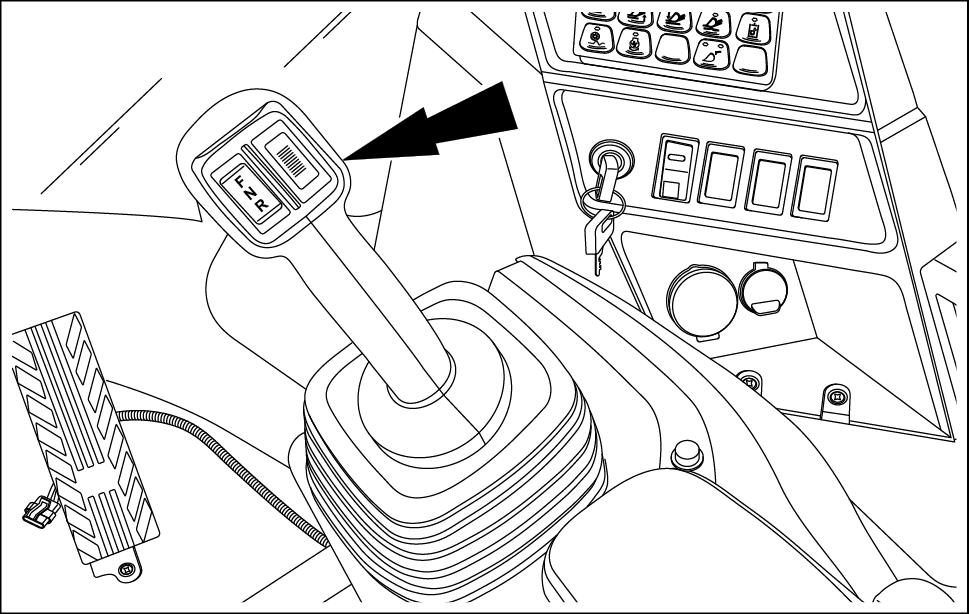

Park the machine a firm, level surface, lower the bucket, and shut f the engine. Keep all non - authorized personnel clear the machine. T urn the ignition key the position. Pilot control switch must ON.

Operate the control levers from right left and front rear approximately a dozen times relieve hydraulic line pressure and install vacuum pump hydraulic tank. T urn the ignition key the OFF position and remove the key . NOTICE: Before carrying out any service work the hydraulic system, it is necessary allow the system cool (the temperature should not more than °C ( 104.0 °F ).

Open the engine access hood. T urn the battery timed disconnect switch the OFF position. Remove all contaminants from hose and tube connections required disconnected. For identification purposes, label all disconnected electrical wires, hoses, and tubes. Plug and cap all open hose and tube connections. Ensure plugs and caps are clean and free debris.

LEIL16WHL0005AA 1

LEIL16WHL0022AA 2

NOTE: Before installation any hydraulic hose, tube fitting, make certain O- ring seals are properly installed and lubricated.
