Pin, slotted 16x55 5

3 - PRE-ASSEMBL Y

PREP ARING FOR ASSEMBL Y

Machine preparation

DANGER

Improper operation service this machine can result accident. Any unauthorized modifications made this machine can have serious consequences. Consult authorized dealer changes, additions, modifications that may required for this machine. not make any unauthorized modifications. Failure comply will result death serious injury .

W ARNING

Crushing hazard! Lower all components, attachments, implements the ground before leaving the cab. Failure comply could result death serious injury .

D0030A

W0419A

W ARNING

Pressurized hydraulic fluid can penetrate the skin and cause severe injuries. Hydraulic fluid under extreme pressure. Rest the bucket attachment the ground. Shut the engine off, turn the key on, and move the hydraulic control lever through all movements several times relieve residual pressure the system. Failure comply could result death serious injury .

W0161A

Attach a "DO NOT OPERA TE" maintenance tag. Apply this tag the two cab doors.

Park the machine a firm level ground. Lower all the working equipment the ground. Apply parking brake and shut f engine. Move the hydraulic controls release the pressure in the hydraulic system. Remove the ignition key . Refer the chapter "Safety information" contained in the operator's manual

SP0043 1

Engine hood removal

W ARNING

Heavy objects! Lift and handle all heavy components using lifting equipment with adequate capacity . Always support units parts with suitable slings hooks. Make sure the work area clear all bystanders. Failure comply could result death serious injury .

W0398A

From the cab, release the engine hood, and open it. NOTE: if the Bowden cable is faulty , the hood can released the left - hand side the vehicle using a hook.

Secure the hood with suitable lifting gear and open it. Disconnect the rearview camera wire harness (if machine is equipped with a rearview camera).

Remove the screw (A) the sliding rod and the hexagon nut (B) the gas - operated strut. Remove the two screws (C) that fix the hood the rear frame and put the plate (D) aside.

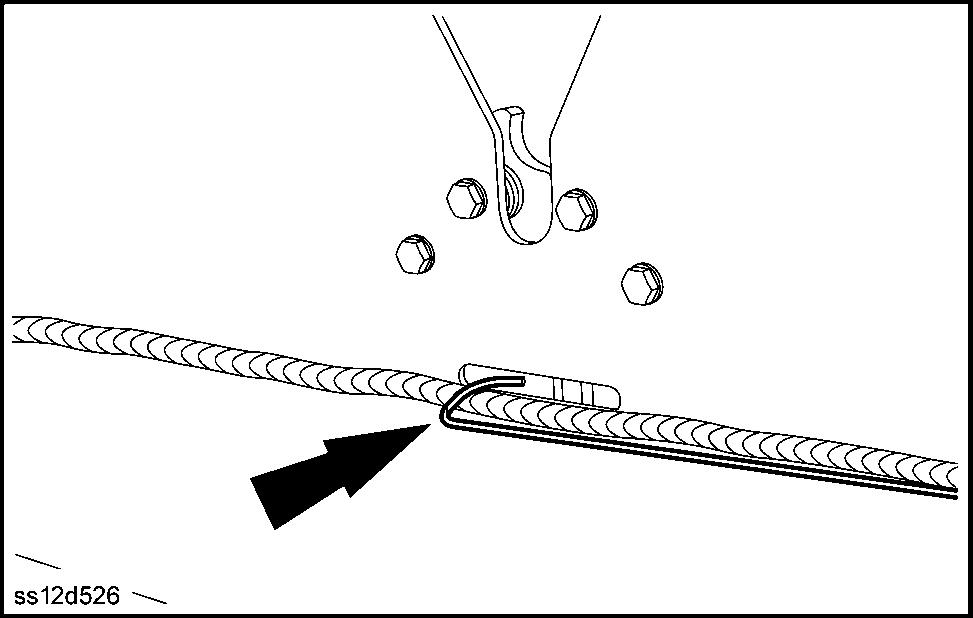

SS12D526 2

SS14E235 3

SS14H01 1 4
