Connect the existing hose (G) the tube (4
from CNH Object handling kit B90B B100B B110B B115B B100C B110C B115C Loader backhoe Instructions Manual

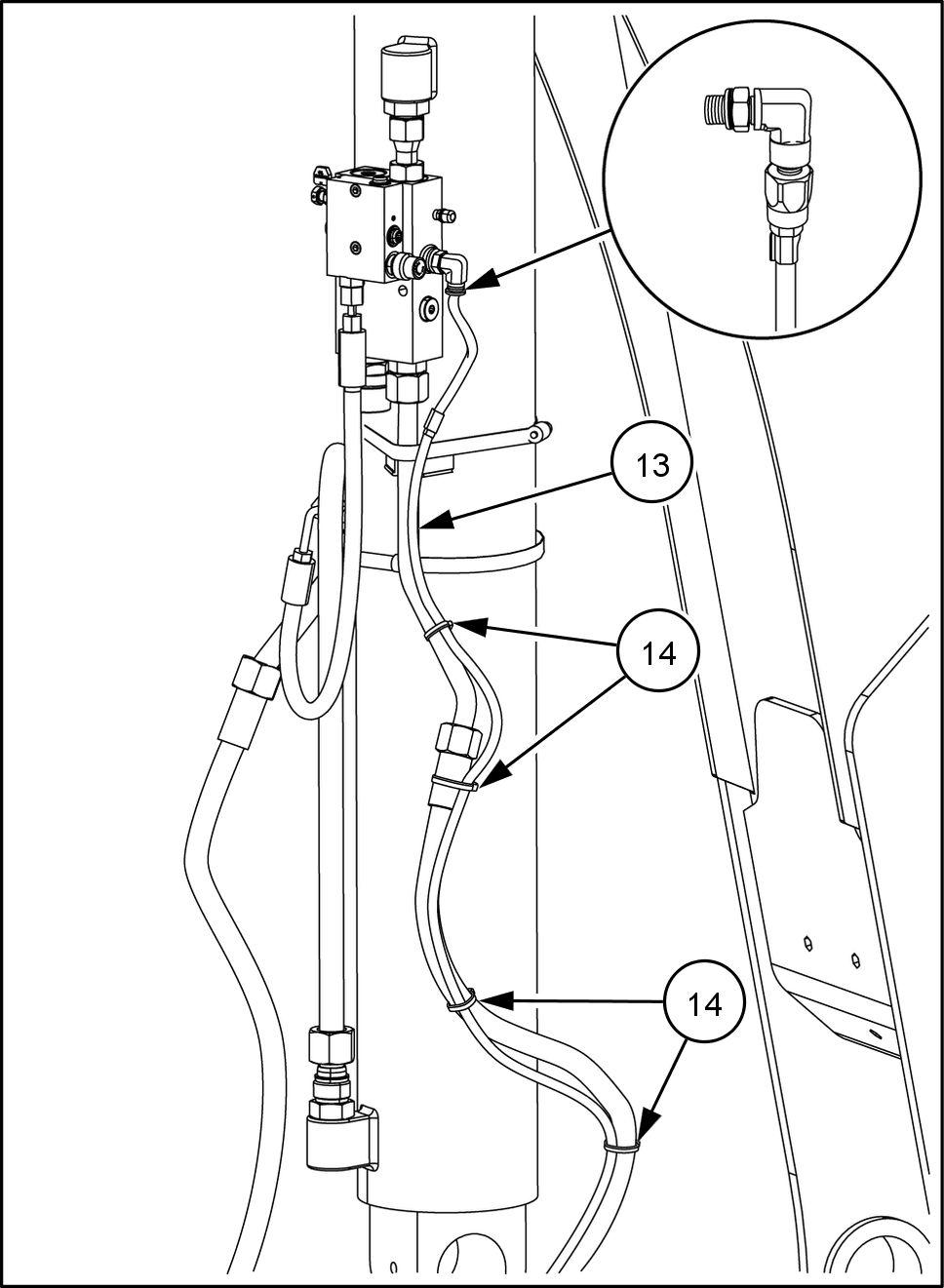

Secure the boom electric harness (13) in place with the four tie straps (14) where shown.
Connect the electric cable (13) the wire harness (18) the outside the cab. Insert the wire harness into the cab and route it towards the side instrument cluster .
RAIL17TLB0216BD 19
RAIL16TLB0918AA 20
