Install the shuttle tee hydraulic valve (10) the swivel union (9) .
from CNH Joystick Steering Kit Secondary Electric Steering 521G W110D Wheel Loader Instructions Manual

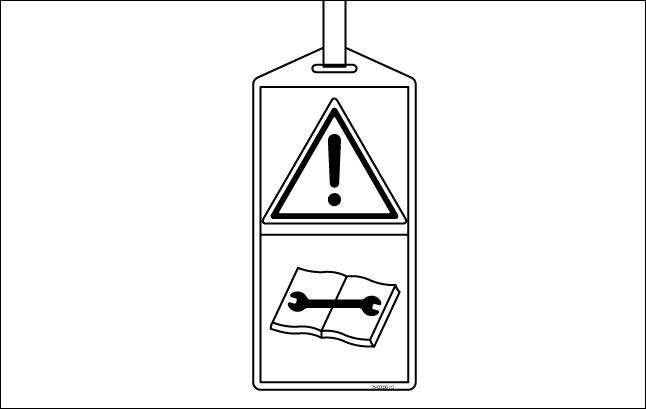

Attach a “DO NOT OPERA TE” maintenance tag. This tag can applied the cab door .
SP0043 4

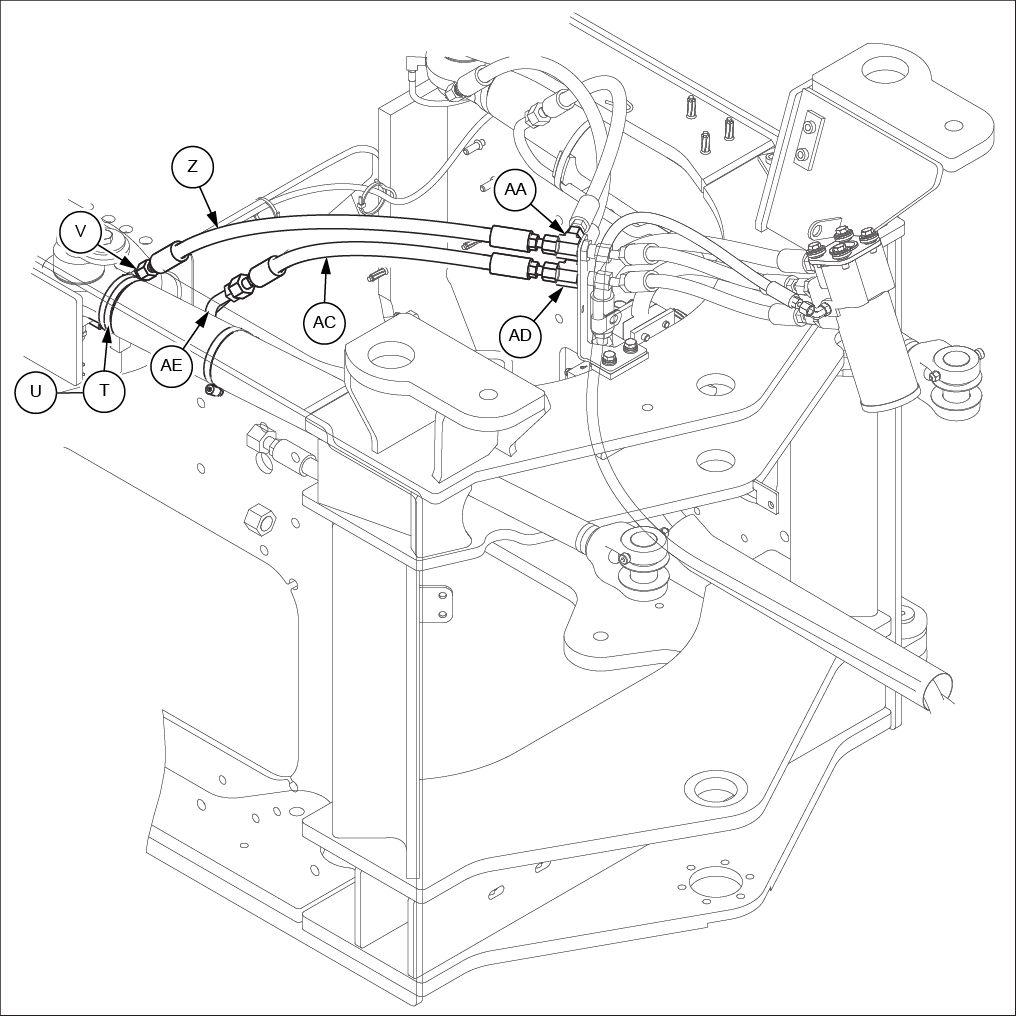

Locate the right - hand steering cylinder area. Remove discard the clamp (T) , the block (U) and the o- ring (V) .
Disconnect and remove the hose (Z) the union tee (AA) . 10. Disconnect and remove the hose (AC) the union tee (AD) and from the right - hand cylinder tube (AE) . 1 Discard the hoses (Z) and (AC) .
LEIL17WHL1272GB 5
