Install the hose (to tank) (28) the ° elbow (7

Next Article
Install the hose (16) the ° elbow (5

Install the hose (16) the ° elbow (5

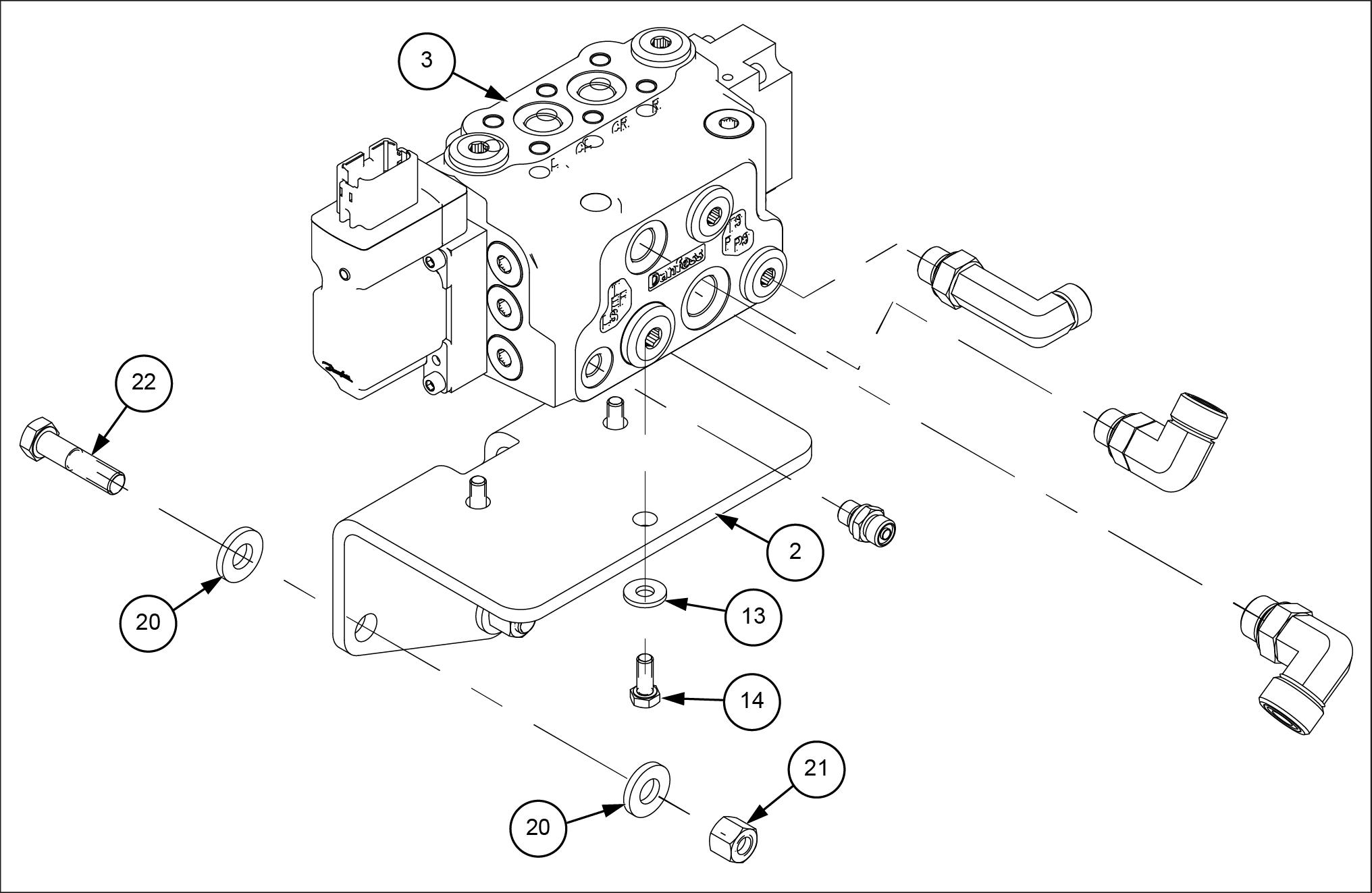

Install the steering EHPS valve (3) the JSS valve mounting bracket (2) . Secure with the three bolts M8x20 (14) and the three washers 9x21x2.5 (13) . Install the valve JSS valve mounting bracket (3) the left - hand sidewall the rear chassis frame. Secure with the three bolts M12x50 (22) , the six washers 13.5x28x4 (20) and the three nuts M12 (21) .

LEIL20WHL1646FB 2
