ASSEMBL Y
from CNH Hydraulic system kit for 4x1 bucket (machines with powershift and variable displacement pump) B1
2 - KIT CONTENT
Kit overview

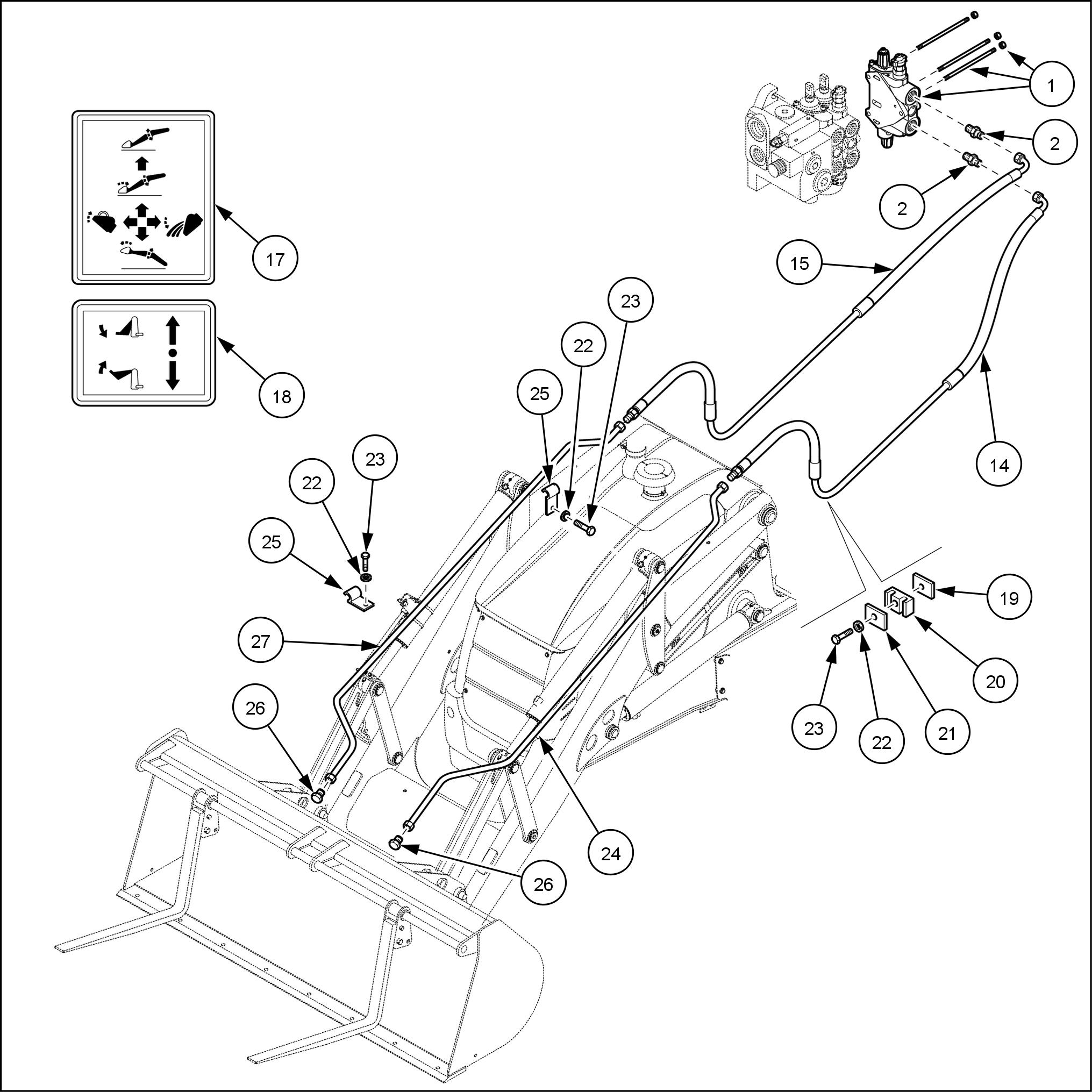

RAIL16TLB1415GA 1
Item Description Quantity Part Reference
1 Kit, conversion 2 3 spool loader 1 87305999 2 Adapter , ORS 2 85805258 3 Elbow fitting, ° , adj 37FL 1 85802234 4 Connector , hydraulic 1 85803312 5 Joystick, w / valve, 4 x 1 loader bucket 1 47775240 6 Connector , hydraulic 2 218 - 5053 7 Connector , hydraulic, short 37FL 3/8 3 218 - 5057 8 Coupler , diagnostic, male, 1/4 in 1 8582821 1 9 Screw , x 2 14300521 Hose assembly , 4 x 1 line 1 87486279 11 Hose assembly , clamp 1 87303400 Hose assembly , drain 1 87486287 Hose assembly , 4 x 1 line 1 87486280
T ube 4 x 1 bucket loader arm 1 48002074
T ube 4 x 1 bucket loader arm 1 48002069
T ee, branch, 37FL swivel 2 85827466 Decal, loader controls 1 47489566 Decal, loader aux controls 1 47489698 Plate 2 85805340 Clamp block, hydraulic 2 87525943 Plate 2 85805195
W asher , Belleville, 8.4 x x 1.5 11 193979 Bolt, x 8 16043821
T ube, hydraulic LH, 4 x 1 feed bend arm 1 48002057
T ube fastener , clamp 6 85805247 Plug, hex 2 85803408
T ube, hydraulic RH, 4 x 1 feed bend arm 1 48002062

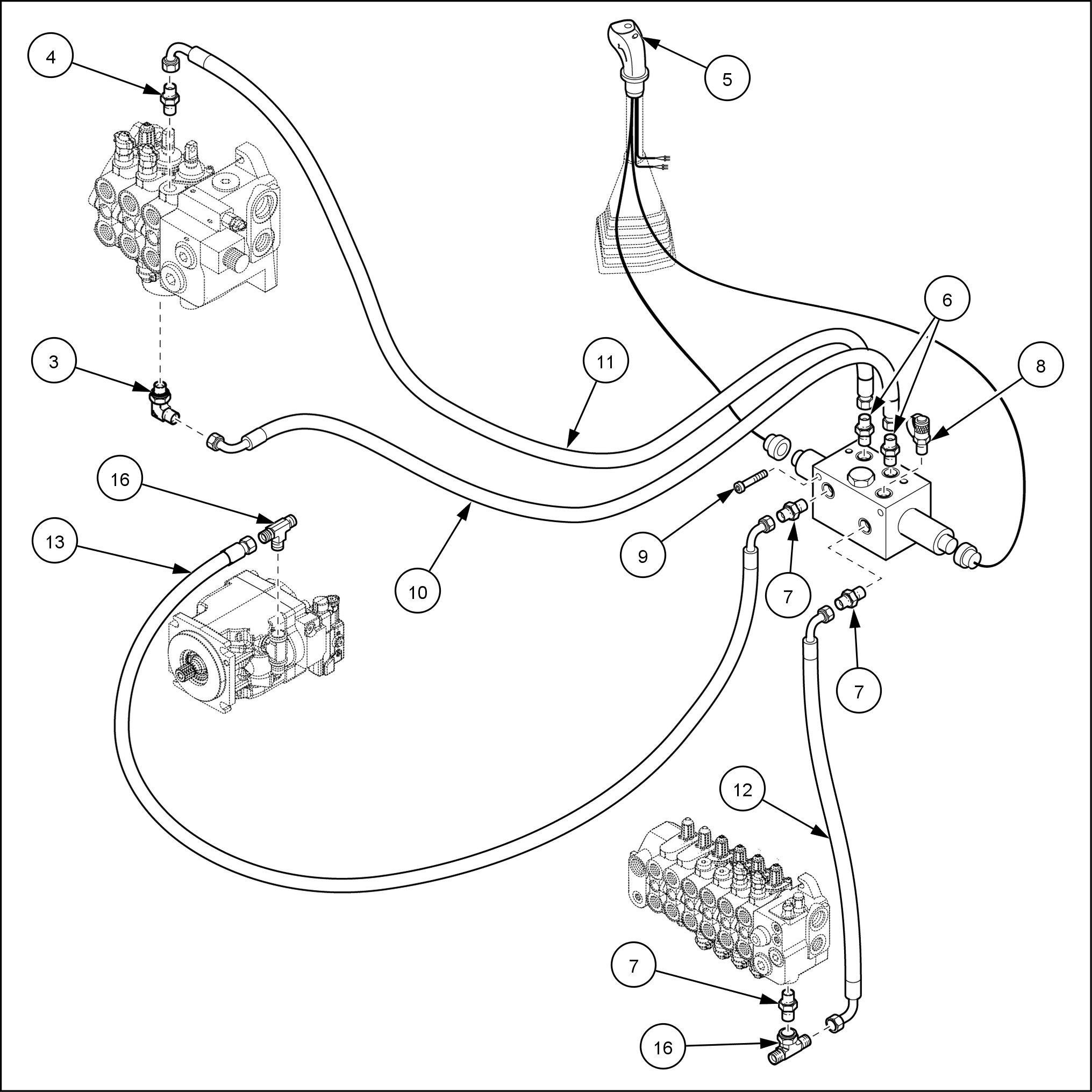

RAIL16TLB1416GA 2
Item Description Quantity Part Reference
1 Kit, conversion 2 3 spool loader 1 87305999 2 Adapter , ORS 2 85805258 3 Elbow fitting, ° , adj 37FL 1 85802234 4 Connector , hydraulic 1 85803312 5 Joystick, w / valve, 4 x 1 loader bucket 1 47775240 6 Connector , hydraulic 2 218 - 5053 7 Connector , hydraulic, short 37FL 3/8 3 218 - 5057 8 Coupler , diagnostic, male, 1/4 in 1 8582821 1 9 Screw , x 2 14300521 Hose assembly , 4 x 1 line 1 87486279 11 Hose assembly , clamp 1 87303400 Hose assembly , drain 1 87486287 Hose assembly , 4 x 1 line 1 87486280
T ube 4 x 1 bucket loader arm 1 48002074
T ube 4 x 1 bucket loader arm 1 48002069
T ee, branch, 37FL swivel 2 85827466 Decal, loader controls 1 47489566 Decal, loader aux controls 1 47489698 Plate 2 85805340 Clamp block, hydraulic 2 87525943 Plate 2 85805195
W asher , Belleville, 8.4 x x 1.5 11 193979 Bolt, x 8 16043821
T ube, hydraulic LH, 4 x 1 feed bend arm 1 48002057
T ube fastener , clamp 6 85805247 Plug, hex 2 85803408
T ube, hydraulic RH, 4 x 1 feed bend arm 1 48002062
3 - PRE-ASSEMBL Y
PREP ARING FOR ASSEMBL Y
Prepare for assembly
READ COMPLETE INSTRUCTION SHEET BEFORE INST ALLA TION THIS KIT
NOTICE: The terms right hand and left hand, when used in this instruction, indicate the right and the left sides the machine seen from operators seat.
Reference numbers and letters illustrations are the same reference numbers and letters in the instructions.
Special torque specifications are included in the instructions. torque specifications are not included in the instructions, use standard torque specifications. See your Service Manual Authorized Dealer if you need standard torque specifications.
Preparing for kit component upgrade
Park the machine a level surface. Place some wedges under the wheels in order prevent the machine from moving. Lower the stabilizers the floor .
Completely extend the dipper and the boom. Lower the boom until the bucket is the floor . Stop the engine and apply the parking brake.

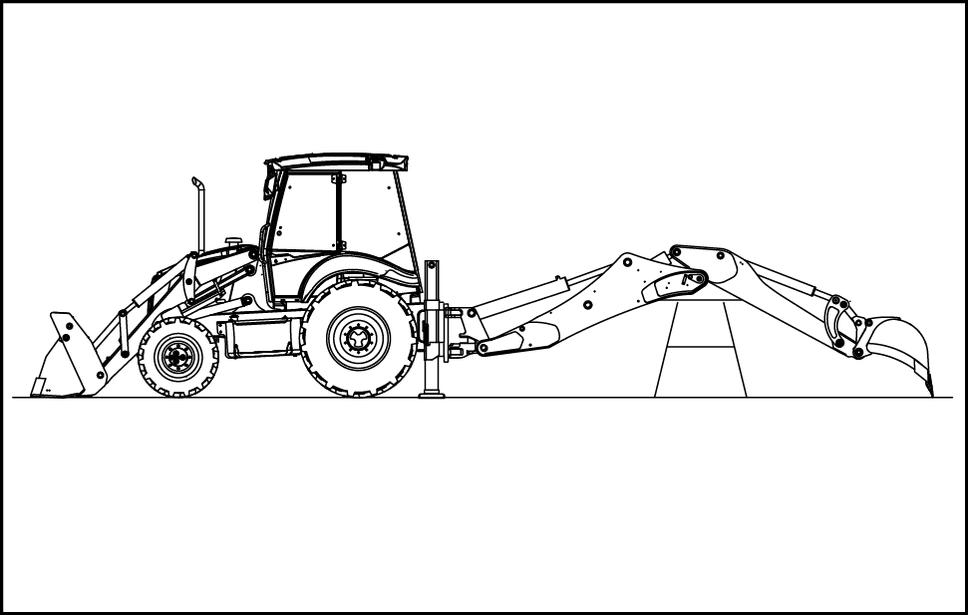

RAIL16TLB1019AA 1

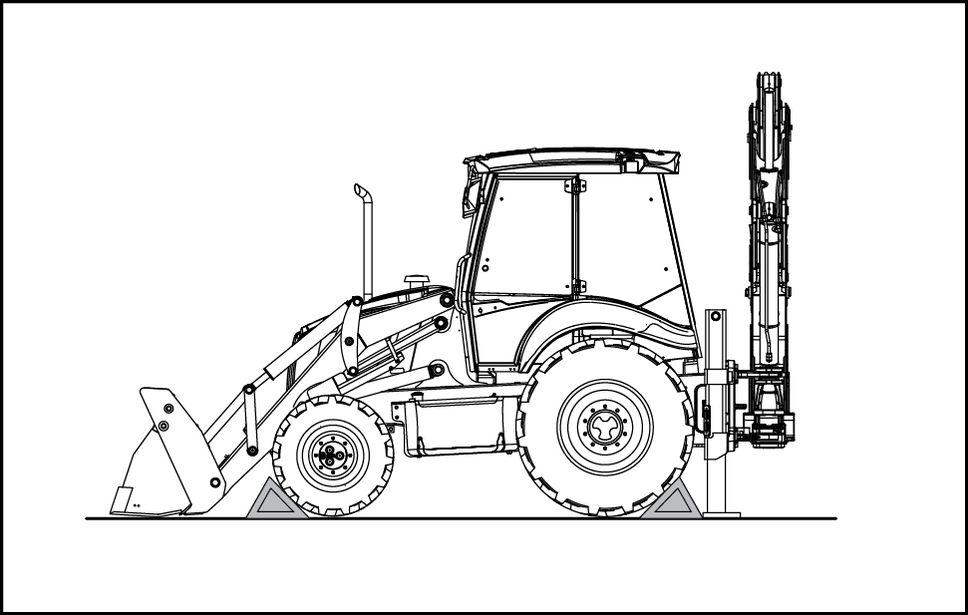

RAIL16TLB1020AA 2

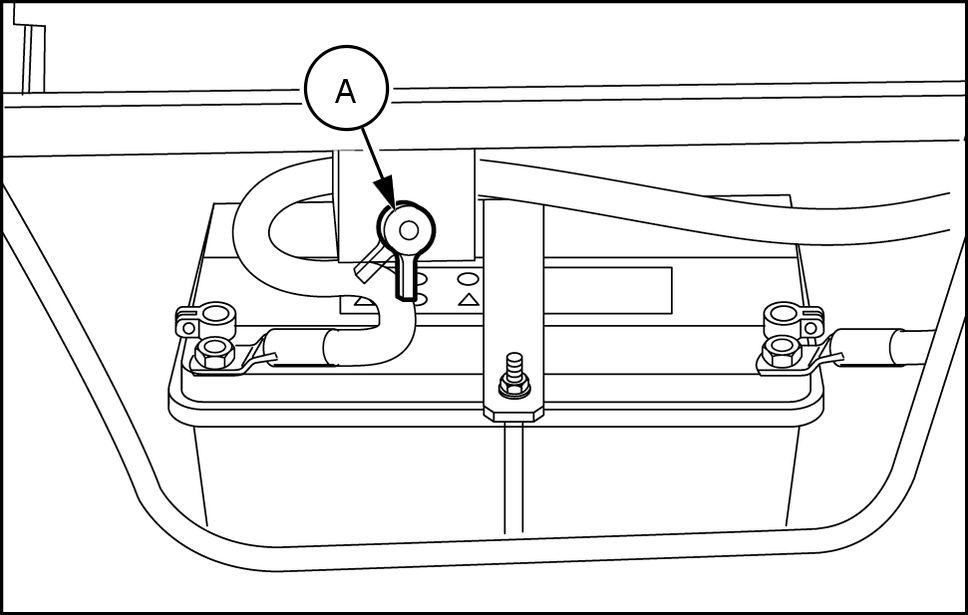

Disconnect the electrical system taking the battery master switch the OFF position. The battery master switch (A) is in the battery compartment. When the battery master switch is in vertical position, the electrical system is connected. When the battery master switch is tilted ° , the electrical system is disconnected.
For Mechanical control machines, move backhoe control levers in all directions release any hydraulic circuit pressure. For Pilot control machines: A. T urn the key the “ON” position and depress the
Pilot Control System switch located the pilot tower . Green light indicating engagement the
Pilot Control System must turn and remain on. B. Move the backhoe control levers in all directions release any hydraulic circuit pressure.
T urn the key “OFF” position.
RAIL16TLB1021AA 3
