NS 1 NOT SERVICED BOOM CYLINDERS INSTALL.MATERIAL SEE FIGURE 24.020/002

BEARING MOTOR (S/N 716001-UP)

REF FN PART NUMBER

1 73177180 2 73177181 5 73171667 6 73188216 7 73188209 8 73188217 9 73170569 10 73176028 11 73176143 12 73170567 13 73177183 13.020 001 p1 1/2018

YR/SN QTY DESCRIPTION

1 BRACKET BRACKET 1 BRACKET BRACKET 2 SPACER SPACER 8 SOCKET SLEEVE 8 SLEEVE SLEEVE 4 SLEEVE SLEEVE 2 DAMPER BEARING 2 SCREW HEXAGON BOLT 8 BOLT HEXAGON BOLT 8 BOLT HEXAGON BOLT 4 BOLT Hex, M10 x 50, 10.9 HEXAGON BOLT

EC160-CRAWLER EXCAVATOR

13.110 00 p1 1/2018

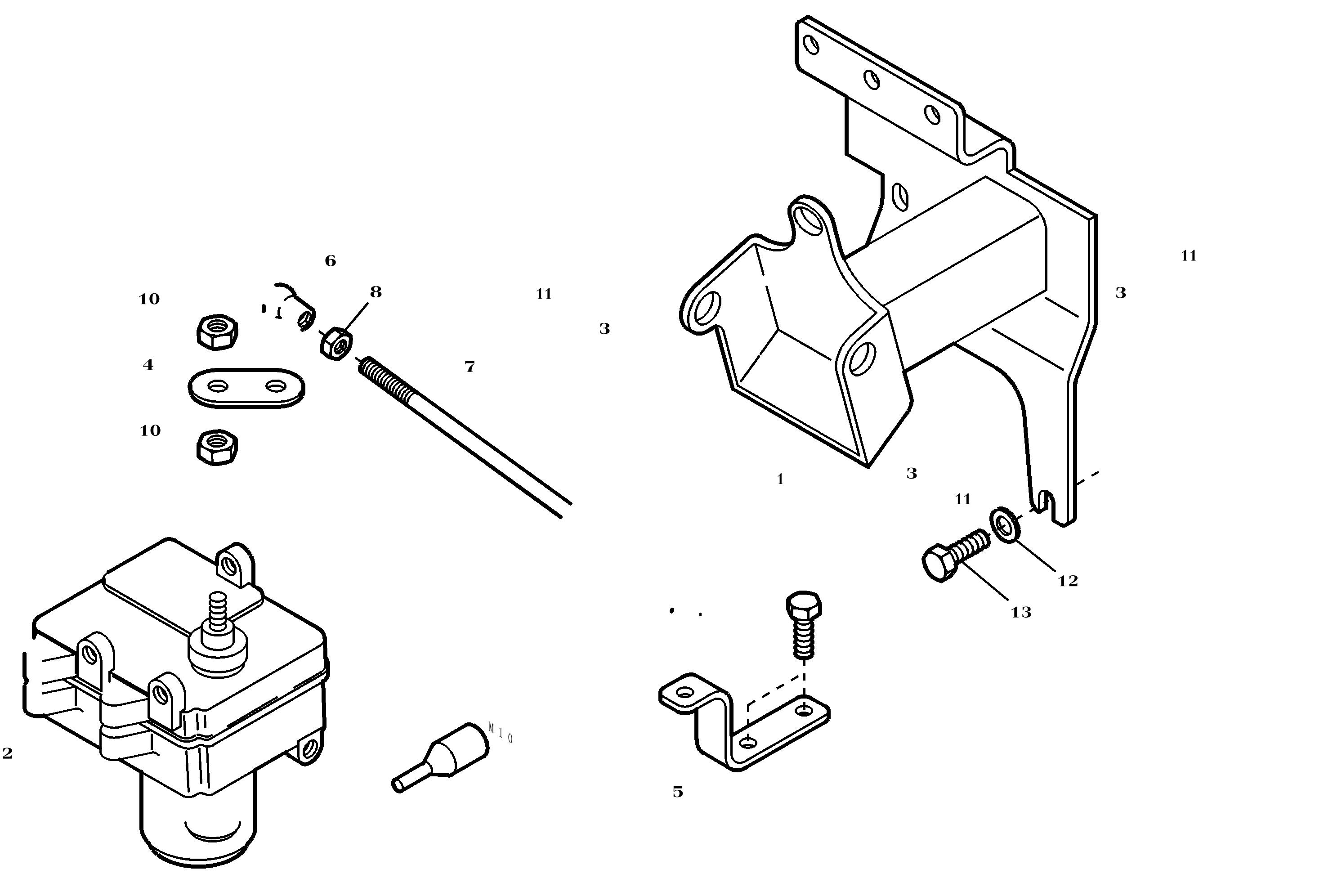

REGULATION MOTOR SPEED (8915442)

REGULATION MOTOR SPEED (8915442)

REF FN PART NUMBER

{} 1 8915414 2 1485420 3 8914321 4 8914326 5 8914898 6 118541 7 8915443 8 86500688 9 63290 2372234 10 945995 11 55064 12 57111

13 54405 13.110 00 p1 1/2018

YR/SN QTY DESCRIPTION

Speed Regulation Motor, 8915442, Incls. Refs. 1 - 14 1 MOUNTING PARTS 1 CONTROL Motor 3 DAMPER 1 LEVER 1 CLIP 2 UNIVERSAL JOINT 1 ROD Threaded -- M06X155-A2B 4 NUT Hex, M6 x 1.0, Cl 10.9 2 BALL M06X12-8.8-A2B 2 WASHER DIN 125-B 6,4-140 HV-A3B, Not Shown 2 NUT Thin, M8 x 1, Cl 04 M08X1-04-A2B 3 BOLT Hex, M6 x 30mm, Cl 8.8 M06X30-8.8-A2B 5 WASHER 8.4mm ID x 21mm OD x 4mm Thk DISK -- DIN 7349-8,4-ST-A3B 5 BOLT Hex, M8 x 25, 8.8 M08X25-8.8-A2B

EC160-CRAWLER EXCAVATOR

13.220 001 p1 1/2018

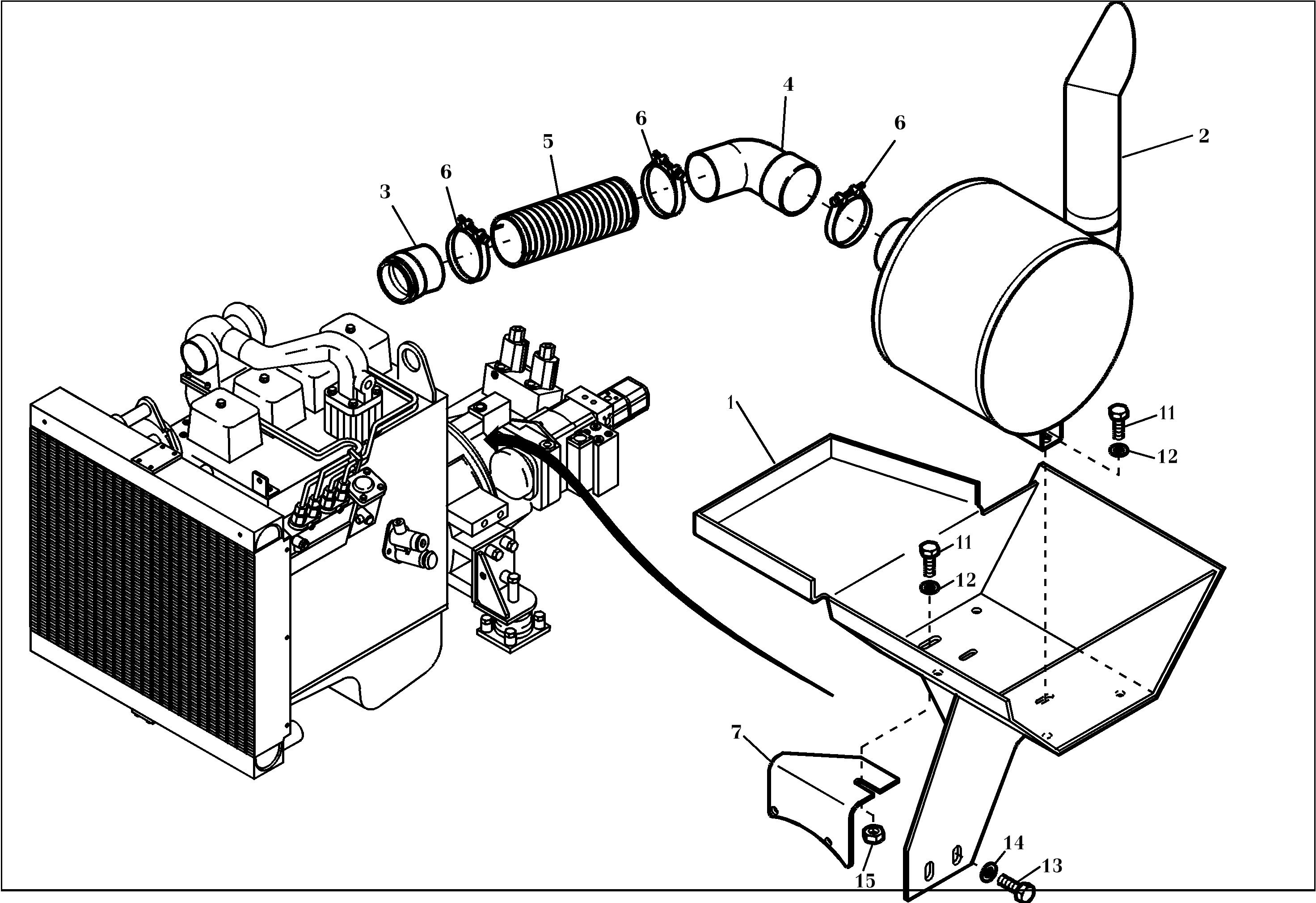

EXHAUST SYSTEM INSTALL.MATERIAL (S/N 716001-UP)
