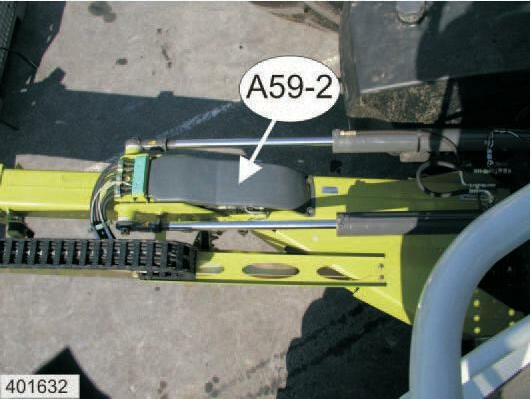

Module A59-2 Valve control, left (VCU

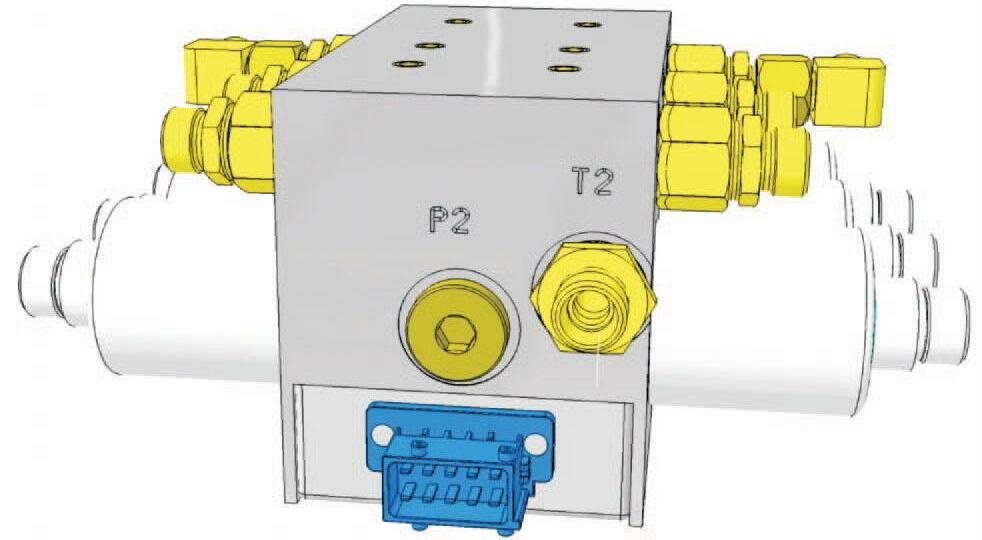

Module A59-2 Valve control, left (VCU)
Module A59-2 Valve control, left (VCU)
Pin Function CCN Component Circuit diagra m Measuri ng variable Directio n
401653 5
10 6 1
1 Supply voltage F9 Fuse 14 12V Input 2 CAN L - - 6 3,2±0,2 Veff
3 not used - - - - -
4 Vehicle ground 31 - 14 0V Input 5 Vehicle ground 31 - 14 0V Input 6 Vehicle ground 31 - 14 0V Input 7 CAN H - - 6 1,9±0,2 Veff
8 Shut down telescoping function Z117-2 Telescopic cylinder retracted actual value switch 14 12V Input
9 Electronics + F11 Fuse 6 12V Input 10 Electronics + F11 Fuse 6 12V Input
intern al Function CCN Component Circuit diagram no. Measuringvariable
- Telescope inside A Y2022a Side arm inside tube telescoping solenoid coil Hydr. 12V (internal) Direction
Output internal
Module A59-2 Valve control, left (VCU)
Pin Function CCN Component Circuit diagra m Measuri ng variable Directio n
401653 5
10 6 1
- Telescope inside B Y2022b Side arm inside tube telescoping solenoid coil Hydr. 12V (internal) Output internal
- Telescope outside A Y2032a Side arm outside tube telescoping solenoid coil Hydr. 12V (internal) Output internal
- Telescope outside B Y2032b Side arm outside tube telescoping solenoid coil Hydr. 12V (internal) Output internal
- Swivel side arm A Y2042a
- Swivel side arm B Y2042b Side arm swivel solenoid coil
Side arm swivel solenoid coil Hydr. 12V (internal)
Hydr. 12V (internal) Output internal
Output internal
